Product Information
Product Number: 2103220.00
Model: Sirio Gain-Master
Sirio Gain-Master™ is the new reference standard in its class of antennas..
Gain-Master™ is a 0.625λ high tech fiberglass base station antenna for 10M-HAM amateur band, completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.
Electrical Data
| Type: |
0.625 λ center feed |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
25.5-30 MHz No tuning required |
| Systems: |
10m-CB-HAM |
| Gain: |
1 to 2 dB higher than conventional 5/8 λ |
| Maximum power: |
500 Watts (CW) Continuous |
| Grounding: |
DC-Ground |

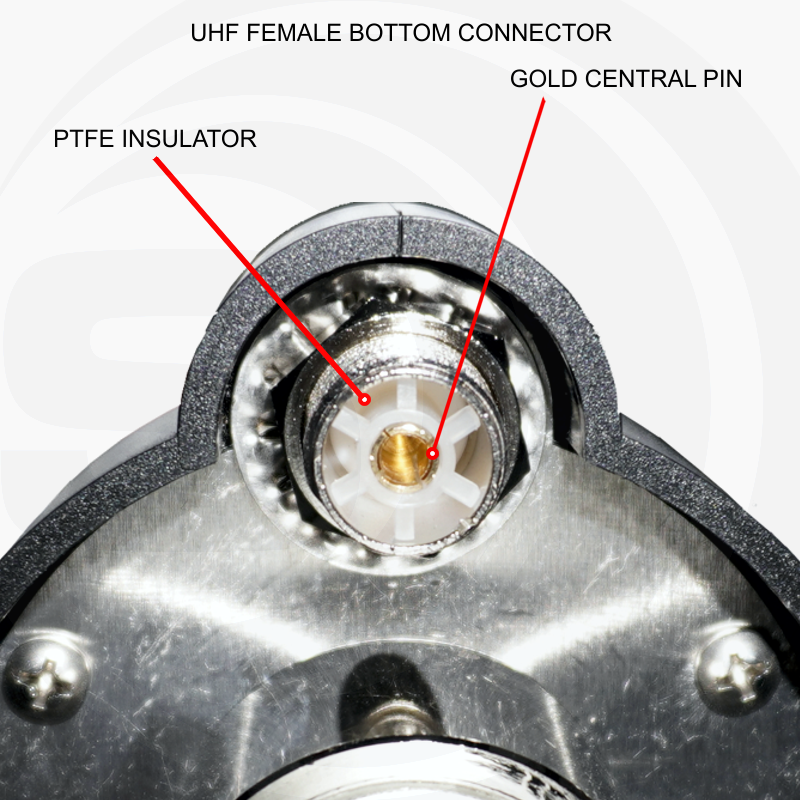

| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): |
7360 mm / 24.15 ft |
| Weight (approx): |
3000 gr / 6.61 lb |
| Mounting type: |
On-Mast |
