Product Information
Product Number: 2103120.00
Model: Sirio Gain-Master HW

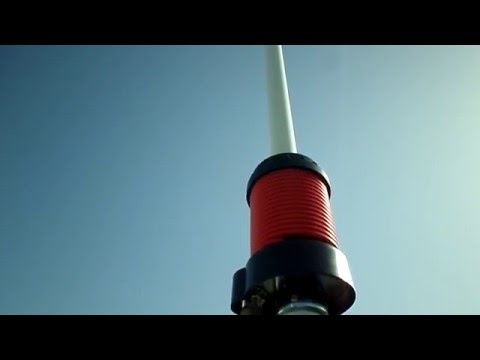

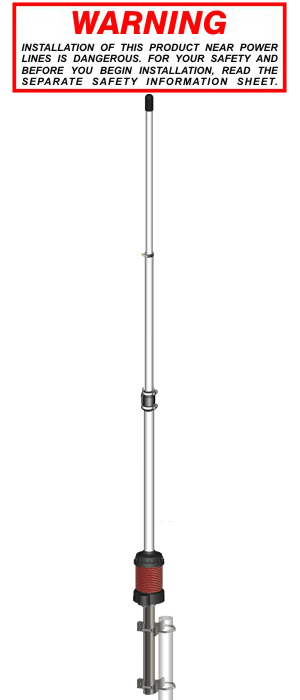

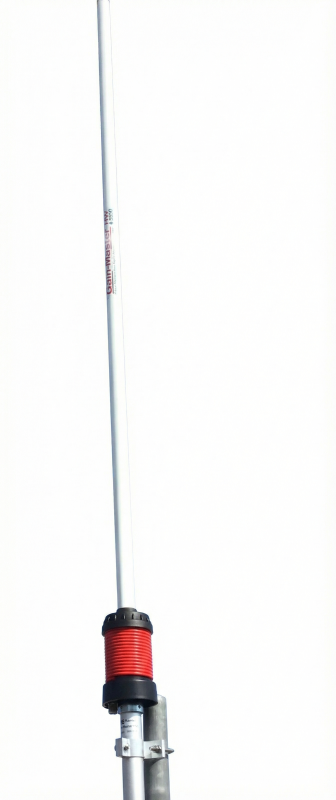

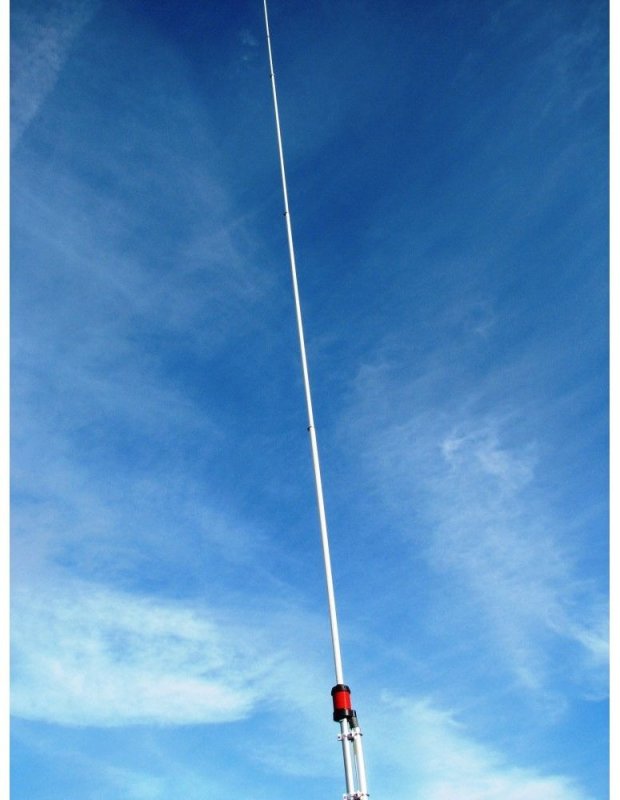

SIRIO Gain Master HW(half-wave) 10M-HAM Antenna This is the very latest version called the HW (Half-wave) which is the smaller version of the original 5/8 wave antenna. This new model is just 18 feet long and should be better for locations were high winds are an issue
-
Base station antenna, Omnidirectional
-
Type: 1/2 λ center feed vertical dipole
-
Low radiation angle for excellent DX
-
Fiberglass 3 section composite tube
Electrical Data
| Type: |
1/2 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
27.2 - 30 MHz Tunable |
| Systems: |
10m-CB-HAM |
| Gain: |
0 dBd, 2.15 dBi
≥ 1.8 MHz @ SWR ≤ 2 |
| Maximum power: |
500 Watts (CW) Continuous |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): |
5560 mm / 18.24 ft |
| Weight (approx): |
2600 gr / 5.73 lb |
| Mounting type: |
On-Mast |
