Product Information
| 2103701.00 |
GP 430 LB U |
| 2103701.00/N |
GP 430 LB N |

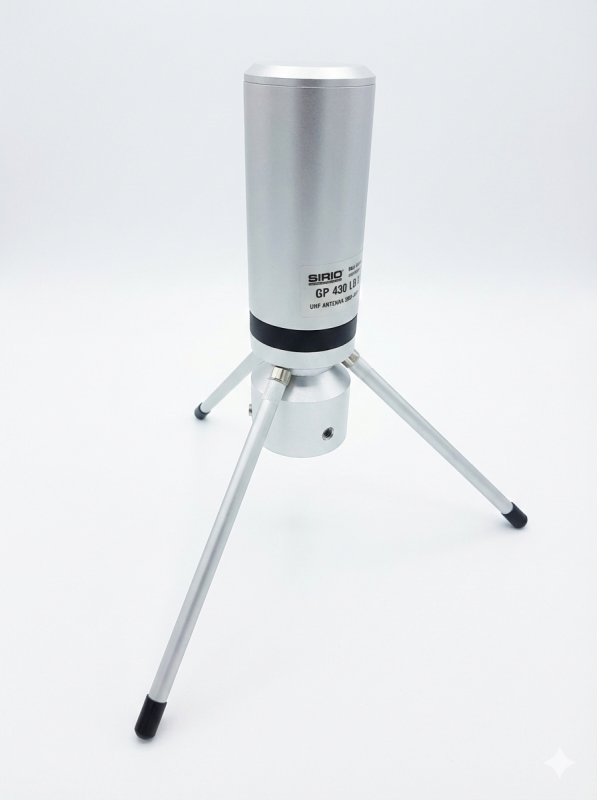

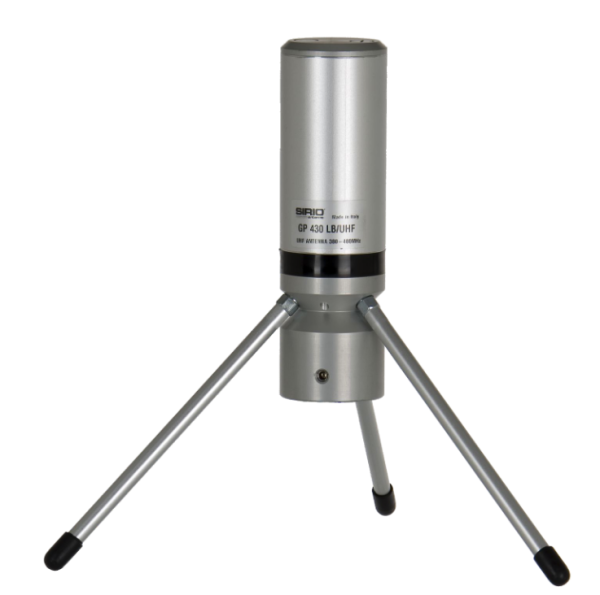

1/4 λ Ground Plane wide-band antenna for base station service. It has been developped according to the most modern technologies to assure a perfect protection against the worst atmospheric climates and to get the best performance. It is entirely made of aluminium to assure strength and robustness and its radial whip is earthed.
Electrical Data
| Type: |
|
1/4 λ ground plane |
| Radiation: |
|
Omnidirectional |
| Polarization: |
|
Linear Vertical |
| Frequency range: |
|

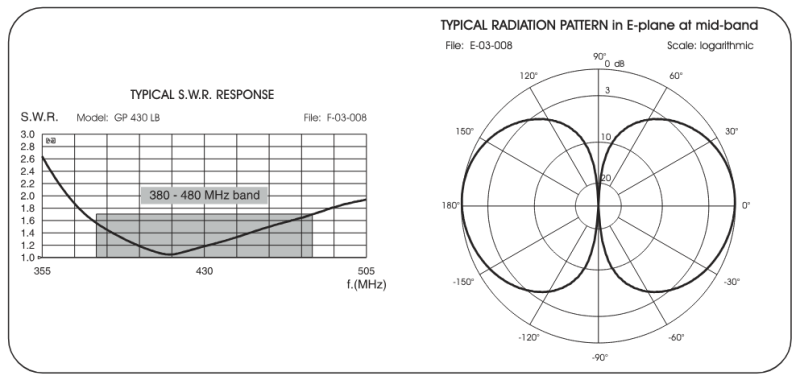

380–480 MHz @ SWR ≤ 1.7 No tuning required |
| Systems: |
|
70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz |
| Gain: |
|
0 dBd – 2.15 dBi |
| Maximum power: |
|
300 W (CW) |
| Grounding: |
|
DC-Ground |
| Connector: |
|
N-female or U (SO-239) |
Mechanical Data
| Materials: |
Anodized Aluminium, Stainless steel, Nylon |
| Height (approx): |
Anodized Aluminium, Stainless steel, Nylon |
| Weight (approx): |
830 gr / 1.83 lb |
| Mounting type: |
On-Mast |
Product manual

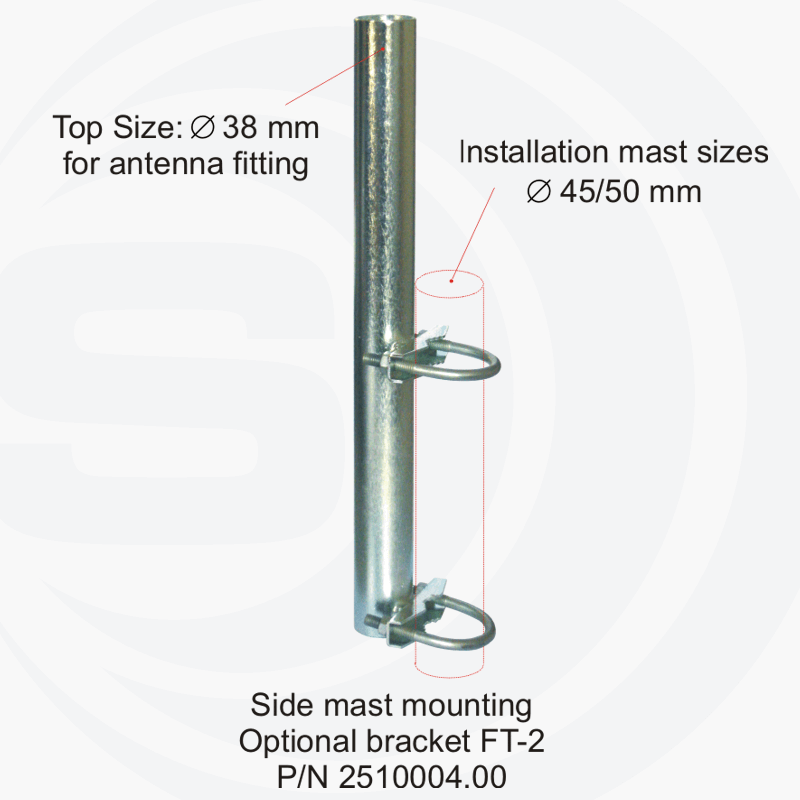

Optional Suitable Accessories: Sirio FT-2 Bracket
|
