Product Information
Product Number: 2210805.05
Model: ZN-22C

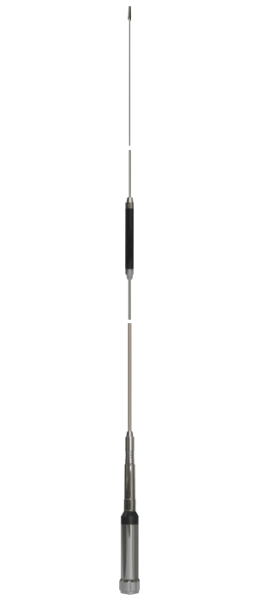

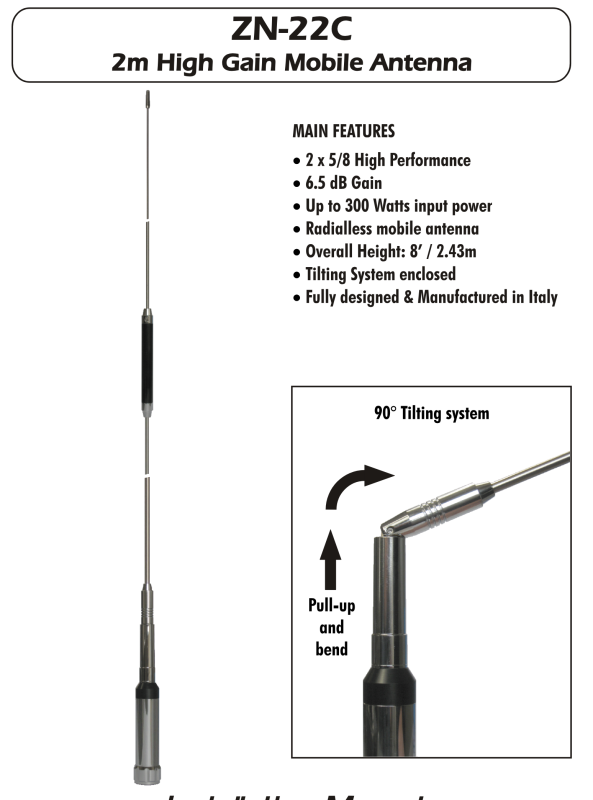

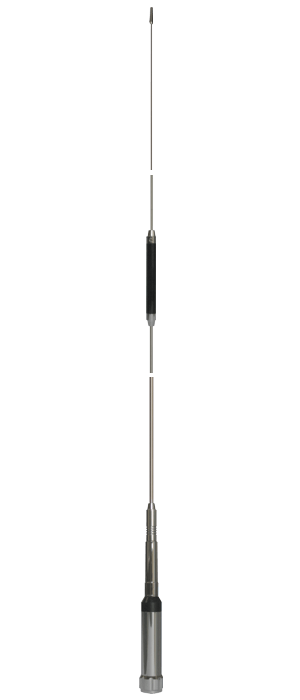

High Gain 2 x 5/8 wave mobile whip antenna will give you the edge on the popular 2m (145MHz) band.

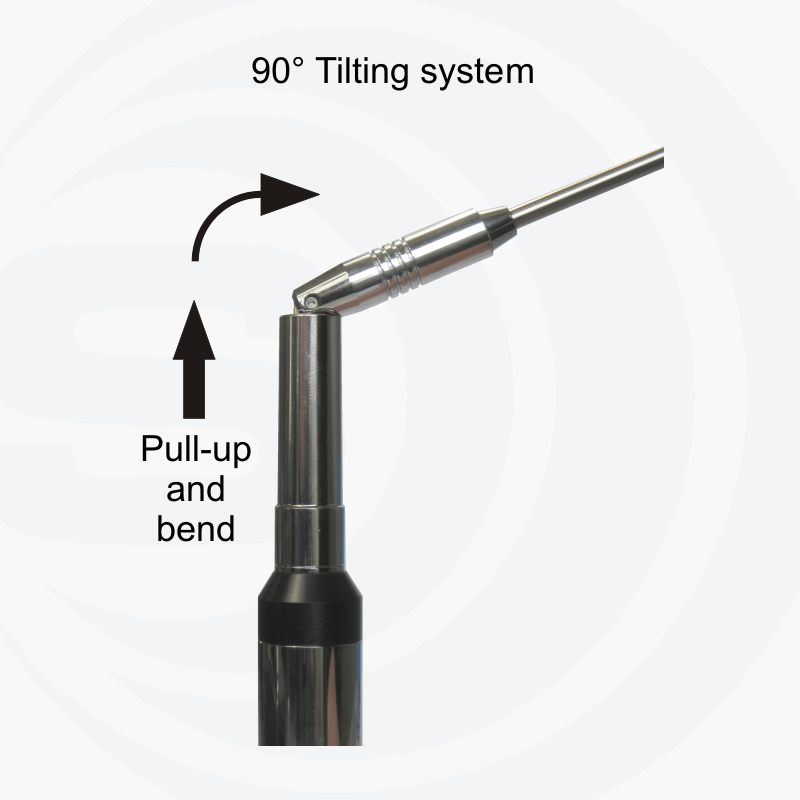

Great for those distant repeaters and comes with a swivel base too,Classic PL259 type connector.
Electrical Data
| Type: |
2 x 5/8 λ - Ground plane independent |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
143–147 MHZ @ SWR ≤1.5 No tuning required |
| Systems: |
2m-HAM, ORBCOMM M2M |
| Bandwidth: |
≥ 9MHz @ SWR ≤ 2 |
| Gain: |
6.5 dB |
| Maximum power: |
300 W (CW) |
| Connector: |
UHF-male (PL-259) |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
2430 mm / 7.97 ft |
| Weight (approx): |
530 gr / 1.17 lb |
| Mounting type: |
On-mast |
Product manual
