Product Information
Product Number: 2110001/1090

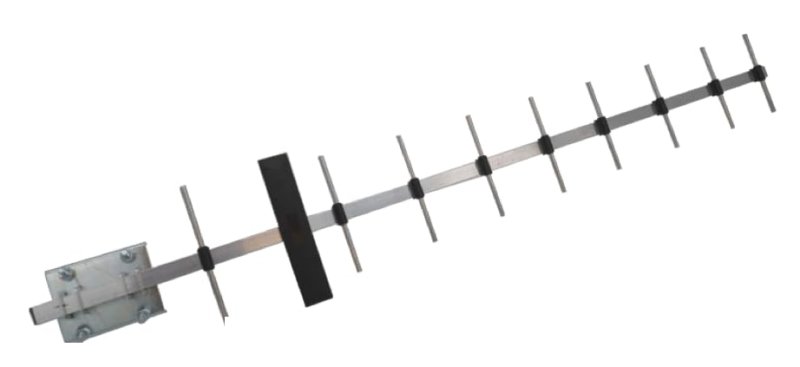

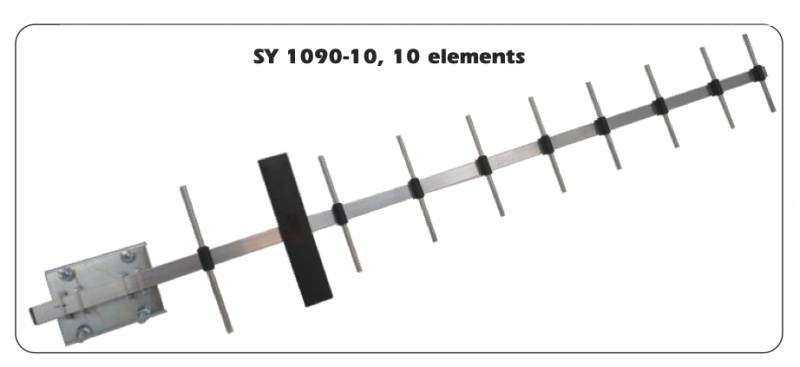

Model: SY 1090-10
Electrical Data
| Type: |
10 Elements Yagi |
| Radiation: |
Directional |
| Polarization: |
Linear vertical |
| Frequency range: |
1090 MHz |
| Systems: |
ADS-B 1090 MHz |
| Gain: |
11.9 dBd – 14 dBi |
| Maximum power: |
10 W (CW) |
| Connector: |
FME-female |
Mechanical Data
| Materials: |
Aluminium, Nickel plated brass, Thermoplastic UV stabilized, PCB |
| Dimensions: |
145 x 905 x 60 mm / 0.48 x 2.97 x 0.2 ft |
| Weight (approx): |
610 gr / 1.34 lb |

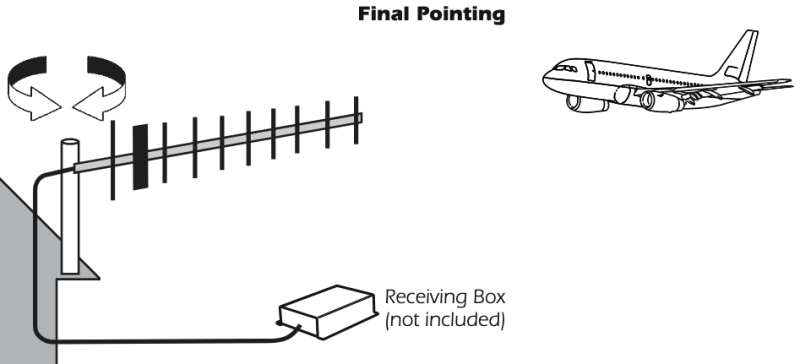

| Mounting type: |
On-Mast |
Product manual
|
