Product Information
Product Number: 21031101.00
Model: Sirio 2016
-
Base station antenna, Omnidirectional
-
High power handling capability
-
Low radiation angle for excellent DX
-

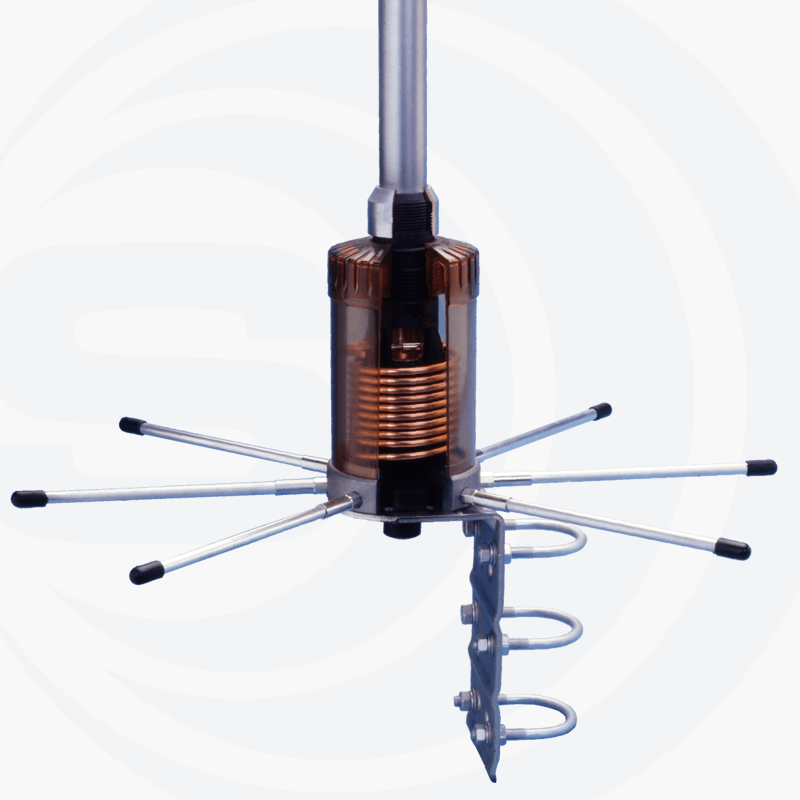

Coil protected by transparent cover
-
Whip equipped whit waterproof jointing sleeve
-
Equipped whit excellent multi element ground plane
-
Protection from static discharges DC-Ground
-
Made of aluminium alloy 6063 T-832
Electrical Data
| Type: |
5/8λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
tunable from 26.4 - 28.2 MHz |
| Systems: |
10m-CB |
| Gain: |
1.3 dBd, 3.45 dBi
≥ 2.1MHz @ SWR ≤ 2 |
| Maximum power: |
1000 Watts (CW) Continuous
3000 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): |
6100 mm / 20.01 ft |
| Weight (approx): |
5300 gr / 11.68 lb |
| Mounting type: |
On-Mast |
