Product Information
Product Number: 2210605.05/USA
Model: HP 7000 C USA

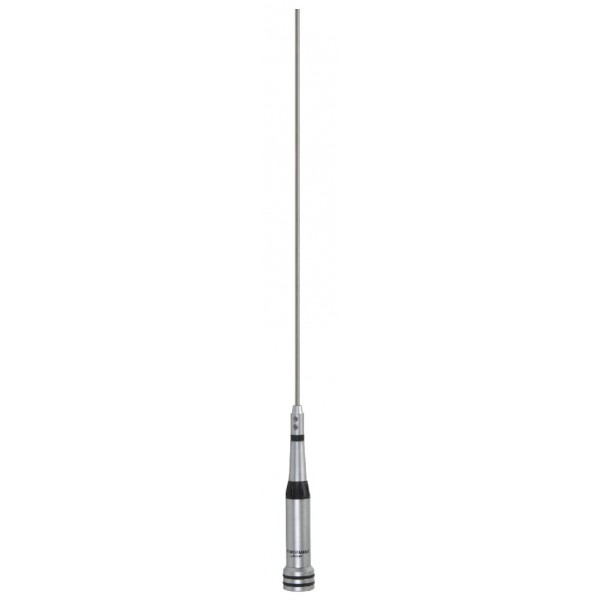

Sirio UHF radialless vehicular antenna working on 70 cm band. It is made with the very best material to guarantee the maximum strength and the best performance. The whip made of 17/7 PH stainless steel, is very flexible and incorporate custom inclination system that allows it to be tilted to 90 degree without using keys or tools.
Also a particular attention has been paid to the UHF-Female antenna connector with a goldplated center pin, a PTFE insulator and a silicone rubber gastet for a perfect waterproofing
- Mobile antenna, Mono-band
- Low-Gain, Omnidirectional
- Suitable for fitting on magnetic mounts, angular connectors, or portable transceiver
- Tunable by whip cutting
- Protection from static discharges DC-Ground
- 17/7 PH tapered stainless steel whip

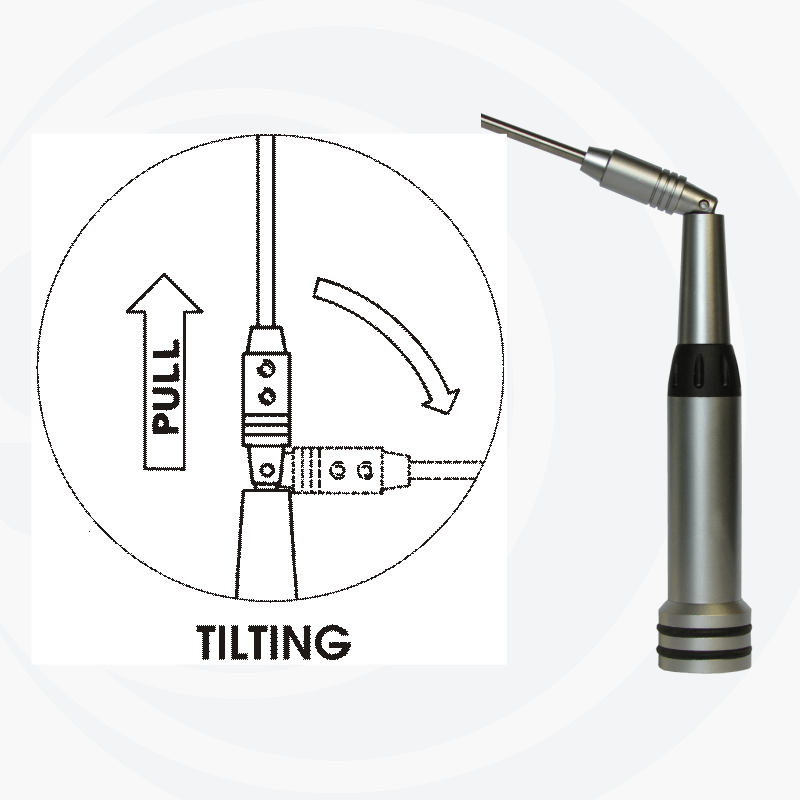

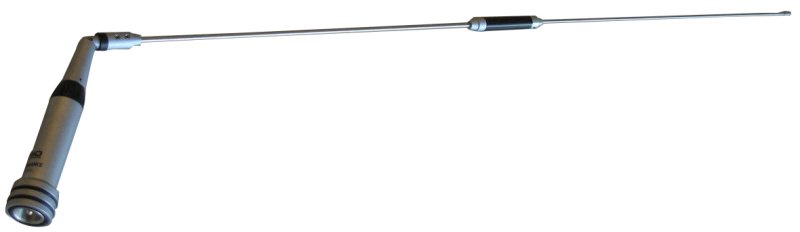

- 90° tiltable whip and detachable for car-washes access
- Magnetic mount version available
Electrical Data
| Type: |
2 x 5/8 λ colinear
Ground plane independent |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
437-453 MHz No tuning required |
| Systems: |
70cm-HAM, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz |
| Bandwidth: |
≥ 6.7MHz @ SWR ≤ 2 |
| Gain: |
5 dB ref. to a λ/4 whip |
| Maximum power: |
80 W (CW) |
| Connector: |
UHF-male (PL-259) |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, PTFE |
| Height (approx): |
435 mm / 1.43 ft |
| Weight (approx): |
250 gr / 0.55 lb |
| Mounting type: |
On-Connector |
Suitable Accessories:
SIrio Mag 145 PL Mag Mount
Sirio SG-AC/U Angular Roof Mount Kit
Sirio KF Gutter Mount Kit
Sirio Mag 125 PL Mag mount
Product manual
