Product Information
Product Number: 2132220.00
Model: SCO-1.09-5
Electrical Data
| Type: |
3×1/2 λ colinear |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
1090 MHz (No tuning required) |
| Systems: |
ADS-B 1090 MHz |

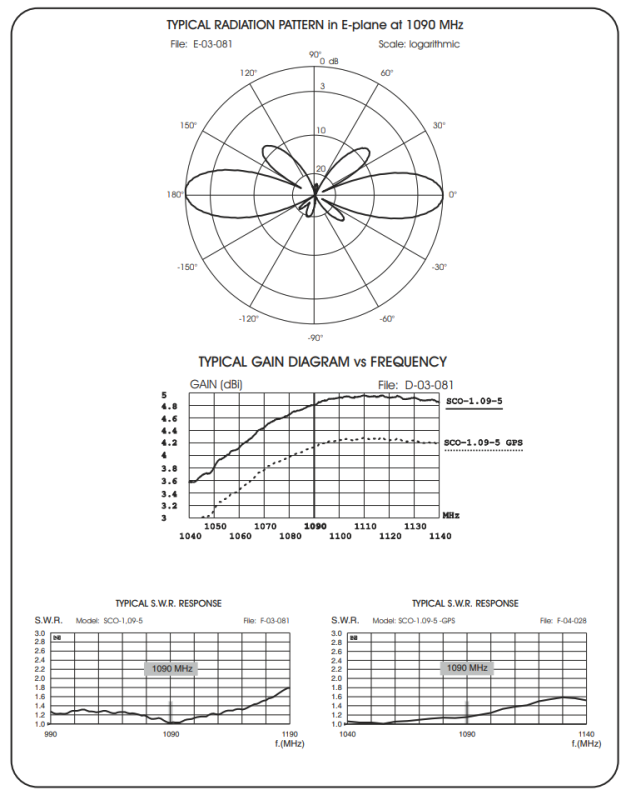

| Gain: |
2.65 dBd – 4.8 dBi |
| Grounding: |
DC-Ground |

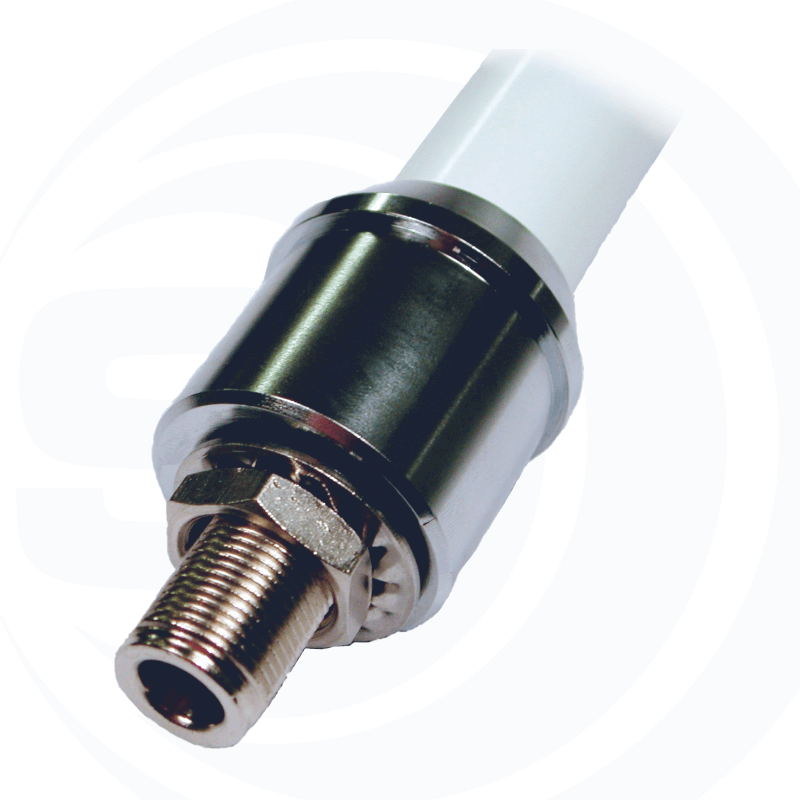

| Connector: |
N-female |
Mechanical Data
| Materials: |
Anodized aluminium, nickel-plated brass, fiberglass, PCB |
| Height (approx): |
555 mm / 1.82 ft |
| Weight (approx): |
288 gr / 0.63 lb |

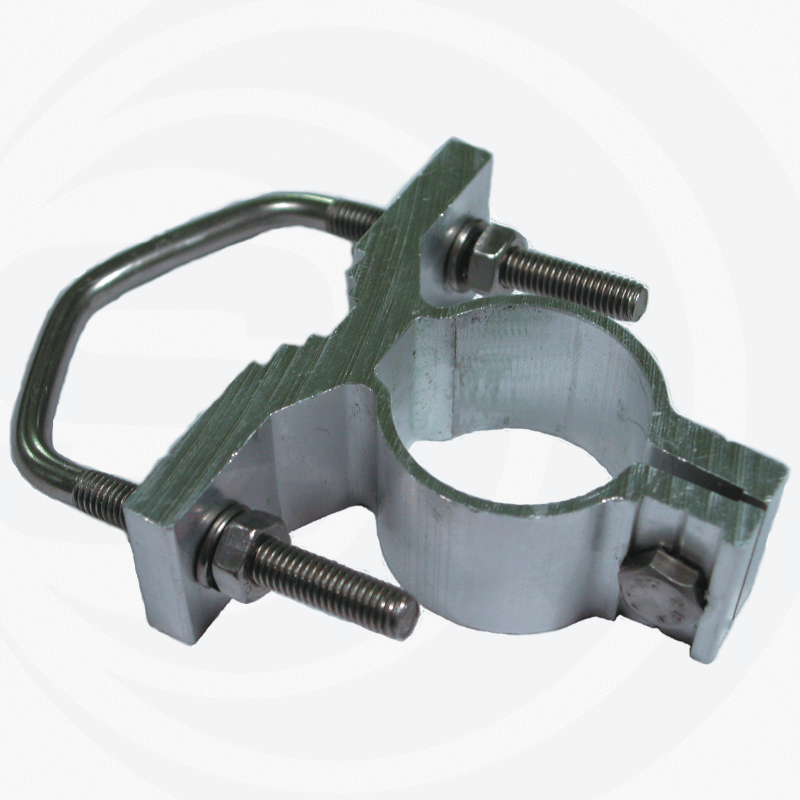

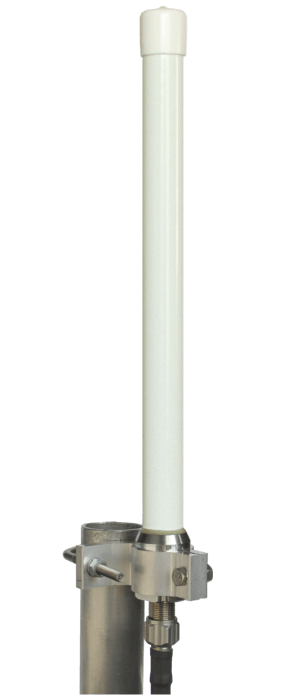

| Mounting type: |
On-mast, on-wall |
