Product Information
Product Number: 210105.00
Model: GP 365-470 C

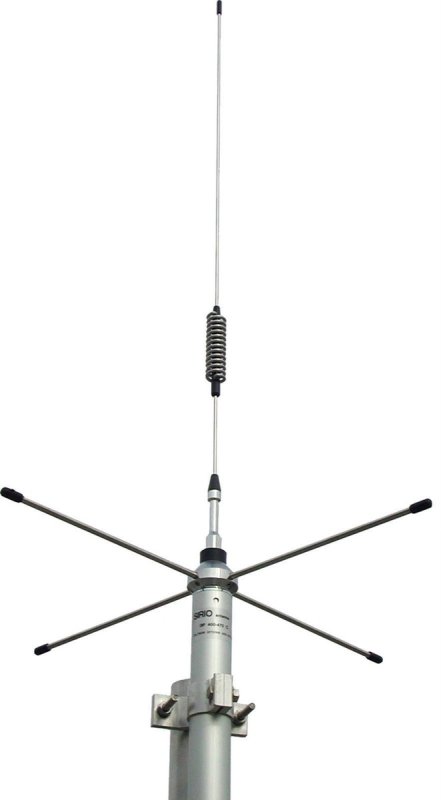

UHF colinear Ground Plane antenna suitable for the base station service covering the frequency range of 365 - 470 MHz tunable by cutting.
The main whip and the radials are made of 17/7 PH stainless steel and its base is of chromed brass to get the best robustness. Easy to fit, it is suitable for a handy installation everywhere
- Base station antenna, Omnidirectional
- Medium-gain, Mono-band
- Tunable by whip cutting
- Made of anodized aluminium alloy
- Stainless steel hardware and radials

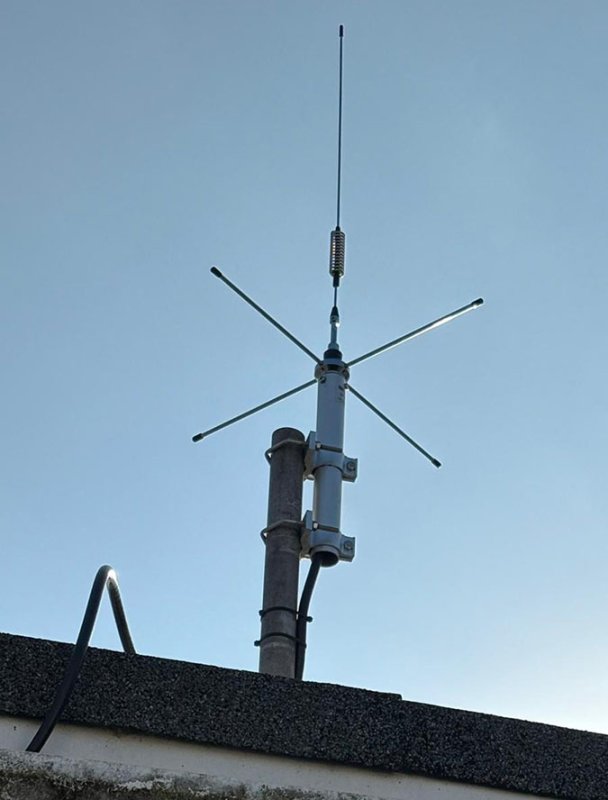

- Equipped with anodized aluminium bracket for an easy side mast installation
- 17/7 PH stainless steel spring whip
- Supplied with nylon reinforce part inside the spring whip
Electrical Data
| Type: |
1/4 λ + 1/2 λ colinear |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
365 … 470 MHz Tunable |
| Systems: |
GMRS - UHF |
| Bandwidth: |
@ SWR ≤ 1.5 |
| Gain: |
2.5 dBd – 4.65 dBi |
| Maximum power: |
150 Watts (CW) continuous |
| Grounding protection: |
DC-Ground |

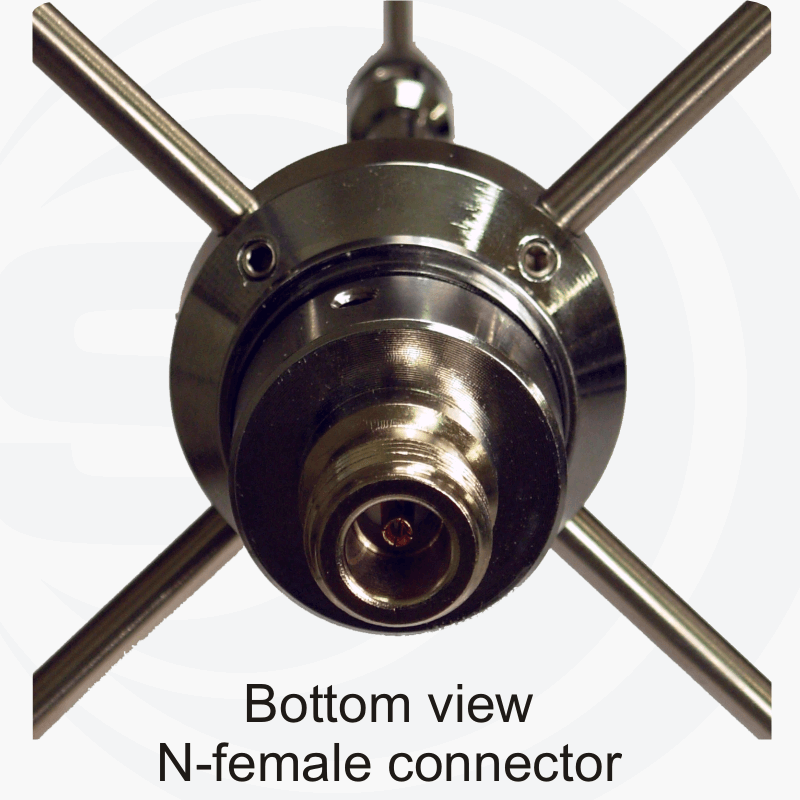

| Connector: |
N-female |
Mechanical Data
| Materials: |
Aluminium, Brass, Stainless Steel 17/7 PH |
| Height (approx): |
990 mm / 3.25 ft |
| Weight (approx): |
730 gr / 1.61 lb |
| Mounting type: |
On-mast |
