Product Information
Product Number: 2100301.00
Model: GPE 5/8
5/8 wave 10M-HAM Base station antenna tunable from 26.4 to 29Mhz and 10m band. They are made of anti-corodal aluminium tubes and supplied with polythene jointing sleeves to guarantee a perfect waterproofing. Strong and easy to install, they allow very good links.
-
Base station antenna, Omnidirectional
-

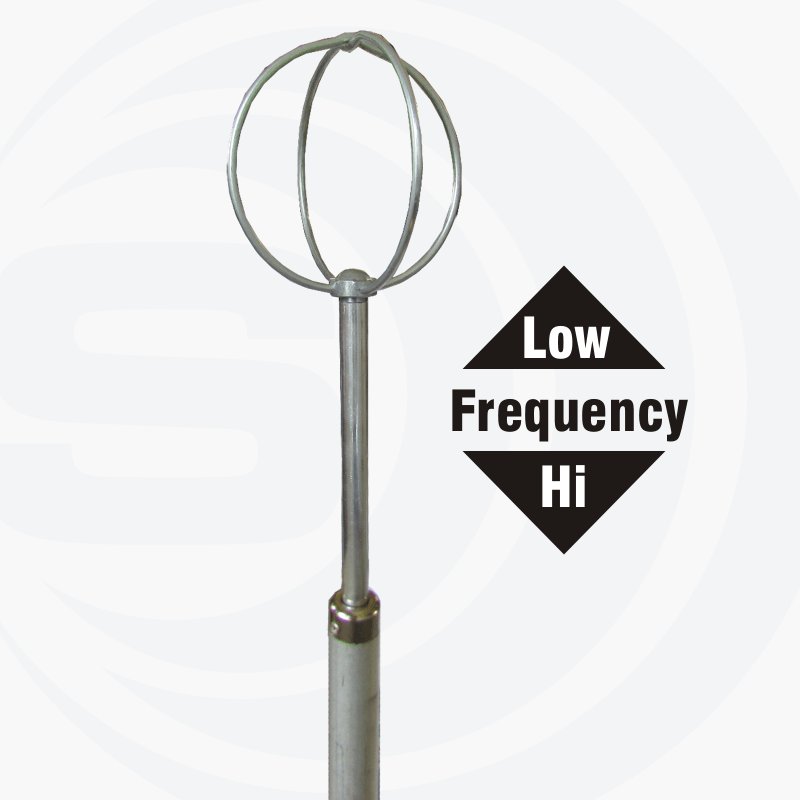

Tunable by acting on the whip length
-
Low radiation angle for excellent DX
-

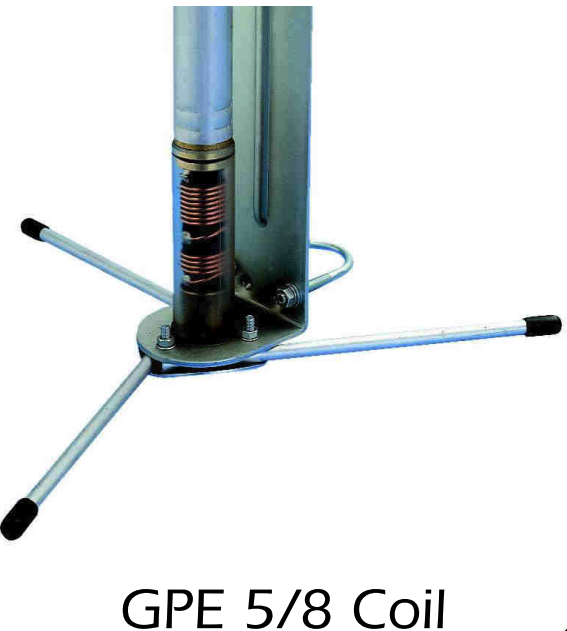

Coil protected by transparent cover
-
Whip equipped whit waterproof jointing sleeve
-
Made of aluminium alloy 6063 T-832
Electrical Data
| Type: |
5/8 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
26.4 - 29.0 Mhz Tunable |
| Systems: |
10m-CB |
| Gain: |
1.2 dBd – 3.35 dBi
≥ 1.6MHz @ SWR ≤ 2 |
| Maximum power: |
250 Watts (CW) Continuous
750 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |

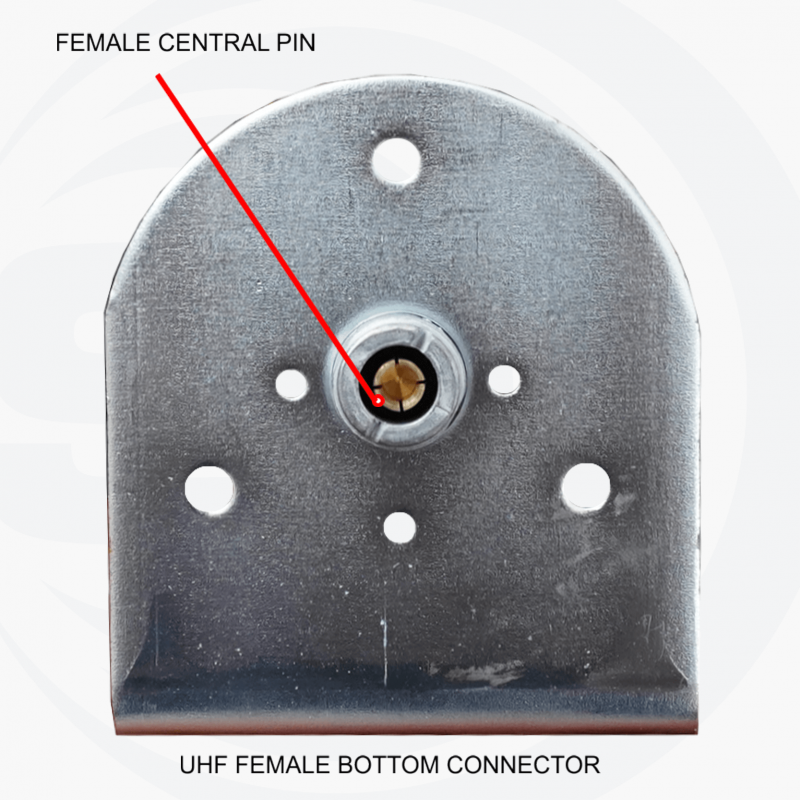

U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Galvanized steel, Nylonn |
| Height (approx): |
5950 mm / 19.52 ft |
| Weight (approx): |
2500 gr / 5.51 lb |
| Mounting type: |
On-Mast |
