Product Information
Product Number: 2101401.00
Model: GPA 40-70

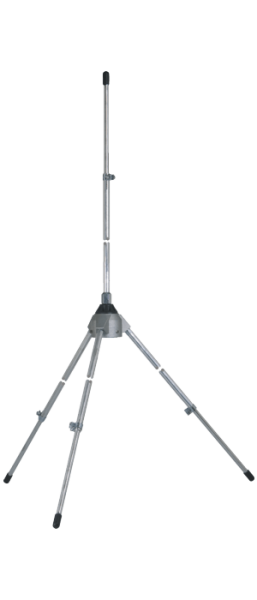

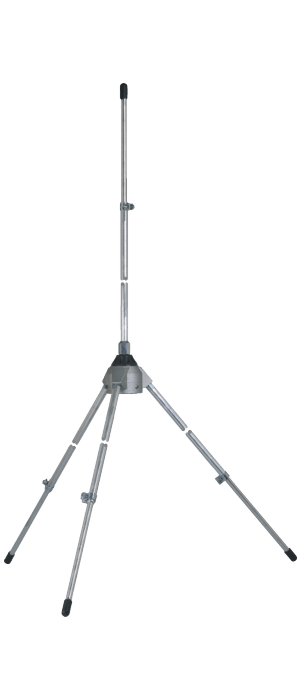

Sirio GPA 40-70 is 1/4 λ VHF base antenna for professional 40 - 70 MHz. Manufactured from robust aluminim alloy and weather proof plastics. High quality materials garrantee maximum effectivŠµness and long term exploitation.

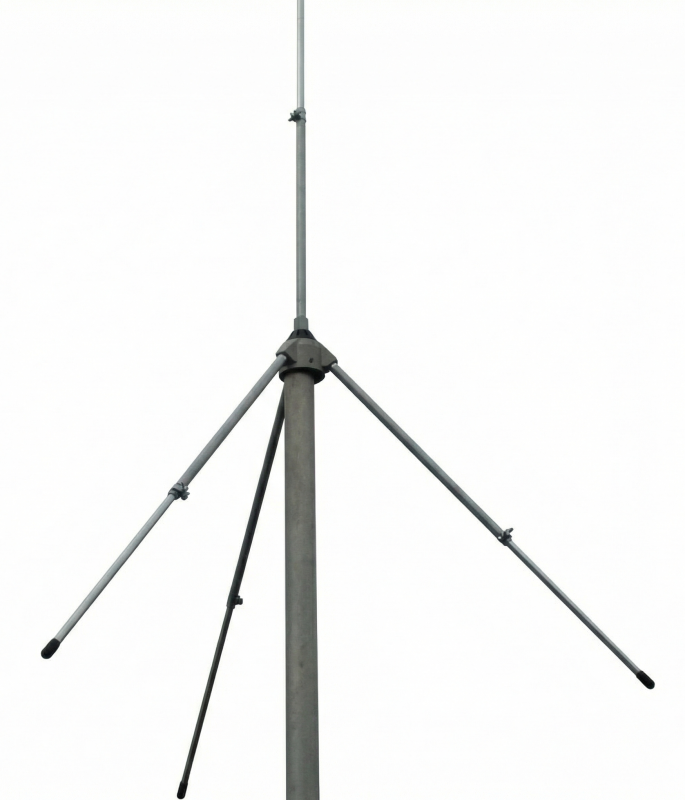

Sirio GPA 40-70 - VHF antenna type ground plane for base station applications in frequency range 40 - 70 Mhz tunable base antenna.
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
40 … 70 MHz Tunable |
| Systems: |
VHF Airband |
| Bandwidth: |
≥ 3.7 MHz @ SWR ≤ 2 |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
1000 W (CW) |
| Grounding protection: |
DC-Ground |

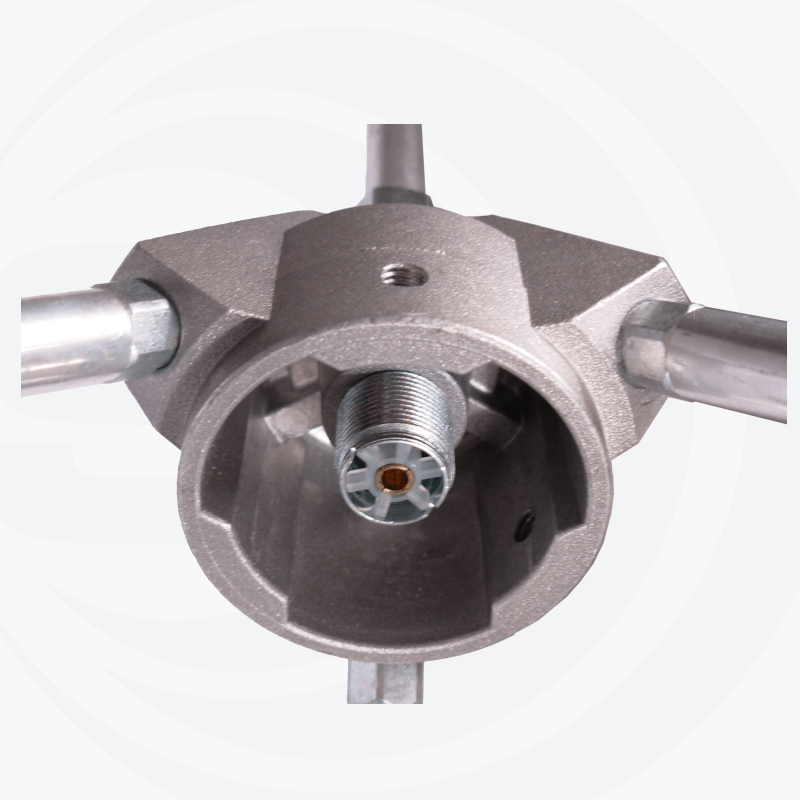

| Connector: |
UHF-female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
3200 mm / 10.5 ft |
| Weight (approx): |
935 gr / 2.06 lb |
| Mounting type: |
On-mast |
Product manual
Optional Suitable Accessories: Sirio FT-2 Bracket
