Product Information
Product Number: 2209906.33
Model: MC 430-450

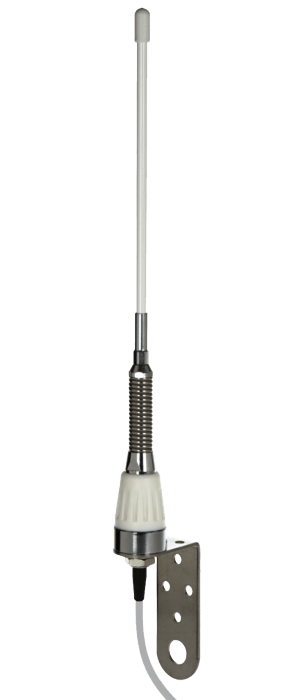

Vehicular antenna conceived for UHF band and particulary suitable for the motorcicle installation. It's made of high quality materials such as fiberglass, chromed brass, nylon and stainless steel to guarantee the best performan- ce. MC series doesn't need any tuning and its standardly supplied with low loss cable (CO100) and TNC-male
- Mobile antenna, Omnidirectional
- Mono-band, Unity-gain
- Protection from static discharges DC-Ground
- Supplied with a strong stainless steel spring
- Designed to work without Ground Plane
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
430-450 MHz No tuning required |
| Systems: |
TETRA |
| Gain: |
0 dBd – 2.14 dBi |
| Maximum power: |
30 W (CW) |
| Cable: |
1.5 m (4.92 ft) / Low loss |
| Connector: |
TNC-male |
Mechanical Data
| Materials: |
Chromed brass, Stainless steel, Fiberglass, Nylon |
| Height (approx): |
354 mm / 1.16 ft |
| Weight (approx): |
450 gr / 0.99 lb |
| Mounting type: |
Thru-Hole |
