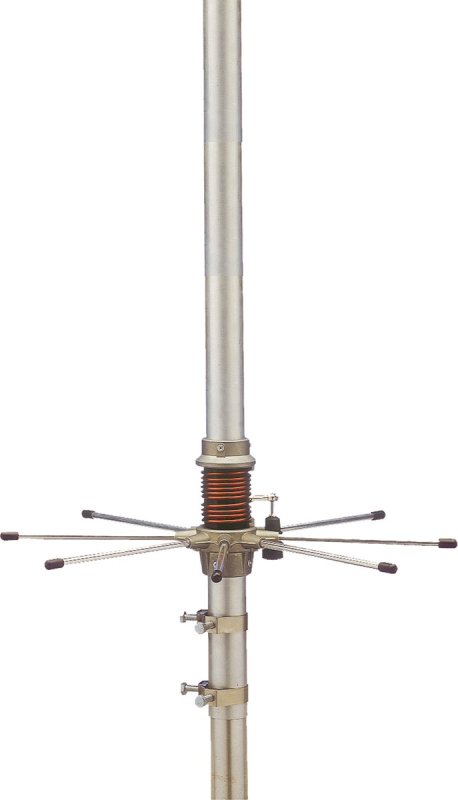

Sirio 827 (26.4 - 28.4 Mhz) 10M-HAM 3000W Tunable Base Antenna

Model: SIR-CBBA-0827
26.4 - 28.4 Mhz Tunable, High Power Capacity, Great for DX
Check In-Store availability
$165.00
Description
Reviews
  • Model
  • SIR-CBBA-0827

Description:

Product Information

Product Number: 2104801.00
Model: Sirio 827

  • Base station antenna, Omnidirectional
  • High power handling capability
  • Low radiation angle for excellent DX

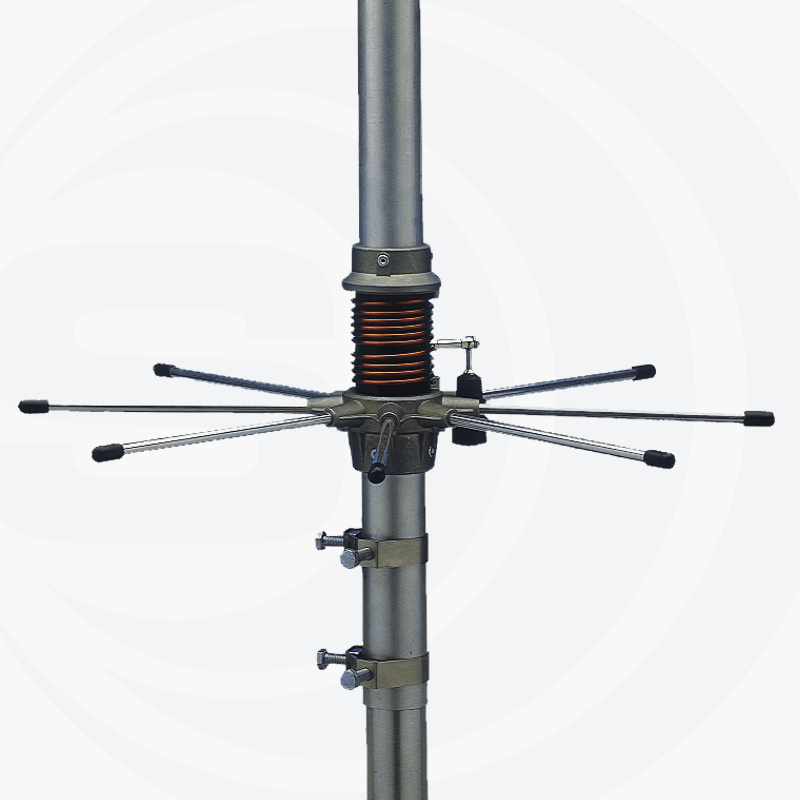

  • Equipped whit excellent multi element ground plane
  • Optional radials reinforcement, anti-noise NYLON RING
  • Protection from static discharges DC-Ground
  • Made of aluminium alloy 6063 T-832

Electrical Data

Type: 5/8 λ ground plane
Radiation: Omnidirectional
Polarization: Linear Vertical

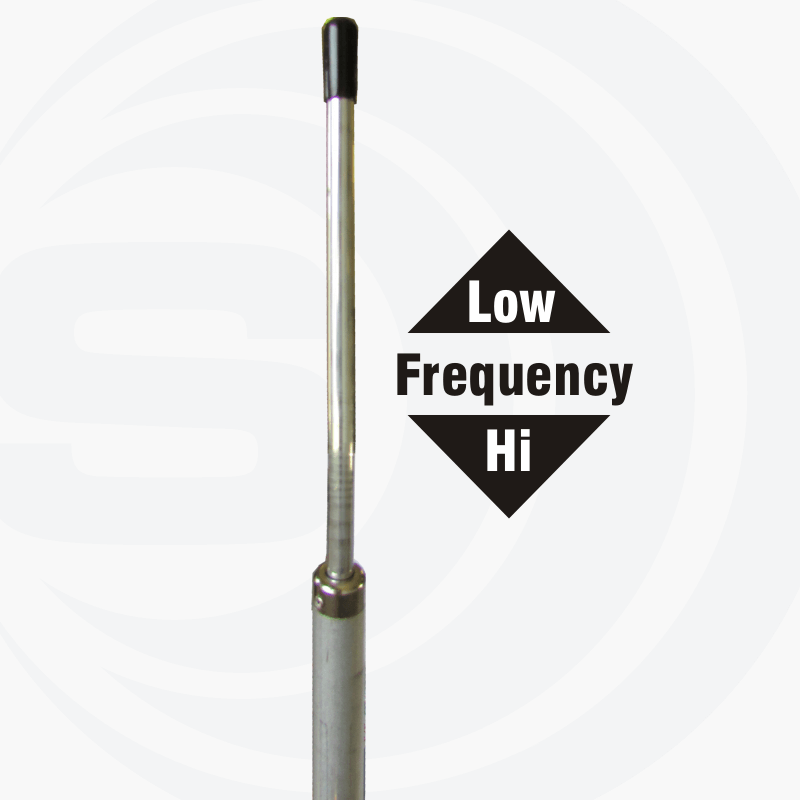

Frequency range: tunable from 26.4 to 28.4 MHz
Systems: 10m-CB
Gain: 1.3 dBd, 3.45 dBi
Maximum power: 1000 Watts (CW) Continuous
3000 Watts (CW) Short time
Grounding: DC-Ground
Connector: U-Female  (SO-239)

Mechanical Data

Materials: Aluminium, Steel, Nylon
Height (approx): 6700 mm / 21.98 ft
Weight (approx): 6000 gr / 13.23 lb
Mounting type: On-Mast

Product manual

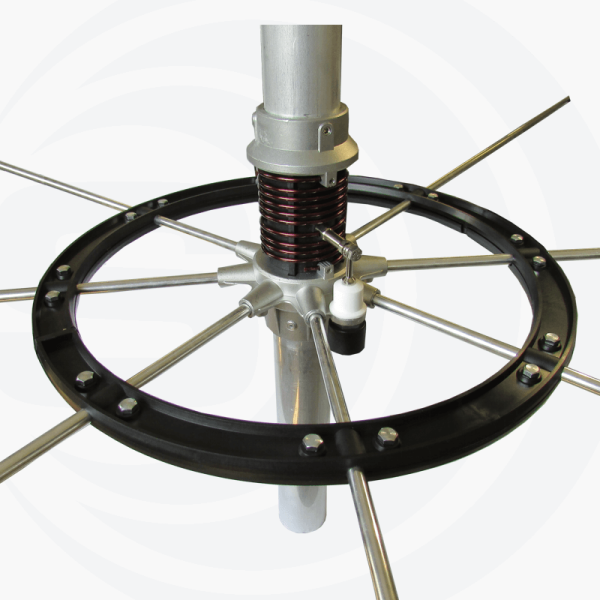

Optional Suitable Accessories:  Sirio Radial Reinfforcement Ring
Sirio 827 Ring
