Product Information
Product Number: 2430505.05

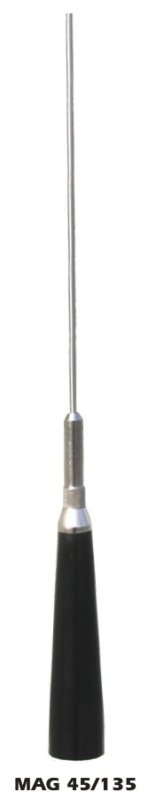

Model: MAG 45/135
Dual band VHF vehicular antenna working on 45...60 MHz and 135...175 MHz by means of the attached cutting diagram. Its bottom coil allows very good impedance adjustment and its conic stainless steel whip is very flexible.
All the metallic components are made of chromed brass or stainless steel for the best robustness and it can be supplied with a UHF-male (PL 259) connector suitable for the fitting on magnetic mounts, angular connector or portable RTx.
- Mobile antenna, Dual-band
- Omnidirectional
- 6m band: Unity-gain, 2m band: Low-gain
- Tunable by whip cutting
- 17/7 PH stainless steel whip
- Suitable for fitting on magnetic mounts, angular connectors, or portable transceiver
- MAG-S 45/135 is supplied with a strong stainless steel spring
- Magnetic mount version available
Electrical Data
| Type: |
1/4 λ base loaded for 45…60 MHz band
5/8 λ for 135…175 MHz band |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
45…60 MHz & 135…175 MHz Tunable |
| Systems: |
6m-HAM, 2m-HAM, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, ISM-169MHz |
| Bandwidth: |
≥ 6.7MHz @ SWR ≤ 2 |
| Gain: |
0 dB ref. to a λ/4 whip for 45…60 MHz
2 dB ref. to a λ/4 whip for 135…175 MHz |
| Maximum power: |
100 Watts (CW) continuous |
| Connector: |

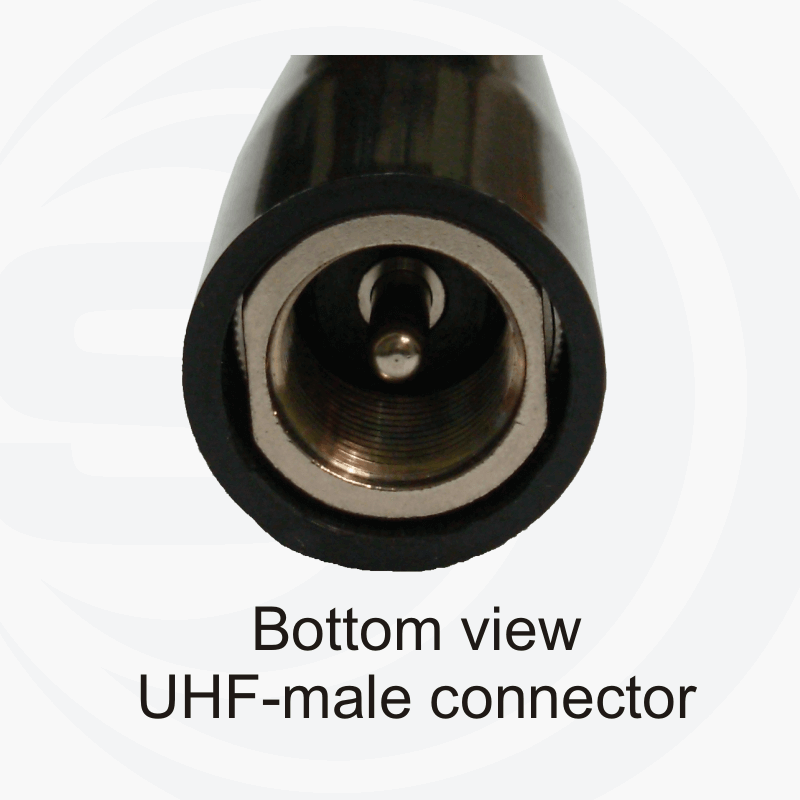

UHF-male (PL-259) |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
1460 mm / 4.79 ft |
| Weight (approx): |
200 gr / 0.44 lb |
| Mounting type: |
On-Connector |
Suitable Accessories:
SIrio Mag 145 PL Mag Mount
Sirio SG-AC/U Angular Roof Mount Kit
Sirio KF Gutter Mount Kit
