Product Information
Product Number: 2213405.05
Model: HP 140-175

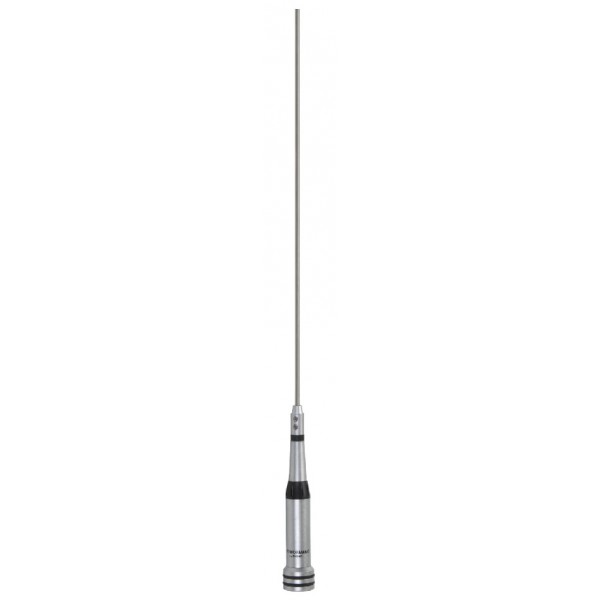

Sirio VHF radialless vehicular antenna working on 2 meter band. It is made with the very best material to guarantee the maximum strength and the best performance. The whip made of 17/7 PH stainless steel, is very flexible and incorporate custom inclination system that allows it to be tilted to 90 degree without using keys or tools.

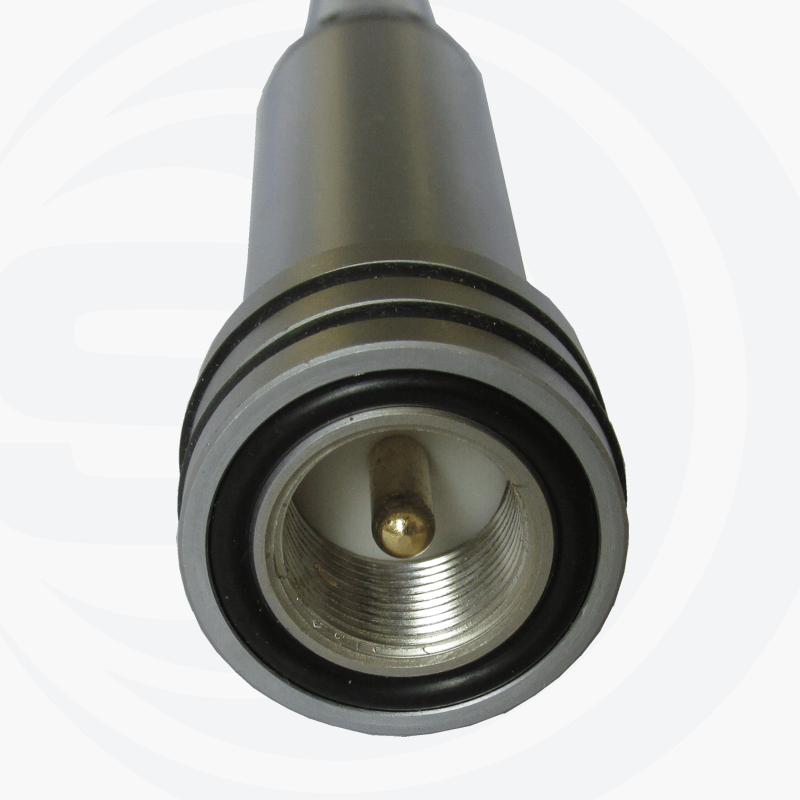

Also a particular attention has been paid to the UHF-Female antenna connector with a goldplated center pin, a PTFE insulator and a silicone rubber gastet for a perfect waterproofing
- Mobile antenna, Mono-band
- Low-Gain, Omnidirectional
- Suitable for fitting on magnetic mounts, angular connectors, or portable transceiver
- HP 140-175 Tunable by whip cutting
- Protection from static discharges DC-Ground
- 17/7 PH tapered stainless steel whip

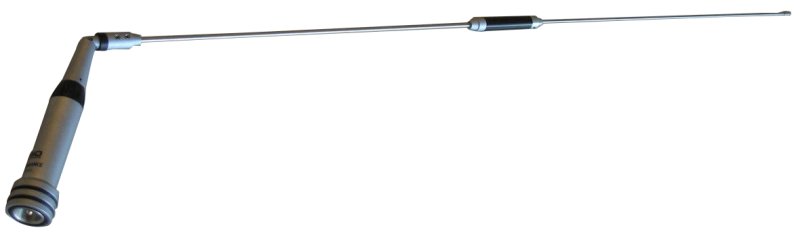

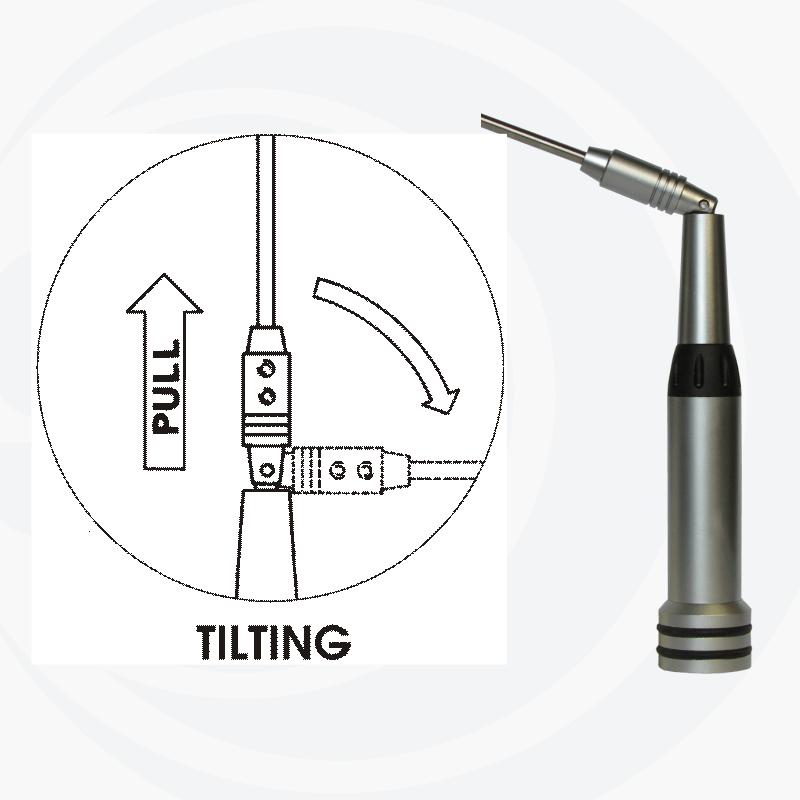

- 90° tiltable whip and detachable for car-washes access
- Magnetic mount version available
Electrical Data
| Type: |
5/8 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
139.3 … 175 MHz Tunable |
| Systems: |
2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz |
| Bandwidth: |
≥ 6.7MHz @ SWR ≤ 2 |
| Gain: |
4.15 dBi |
| Maximum power: |
200 W (CW) |
| Connector: |
UHF-male (PL-259) |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, PTFE |
| Height (approx): |
1435 mm / 4.71 ft |
| Weight (approx): |
270 gr / 0.6 lb |
| Mounting type: |
On-Connector |
Suitable Accessories:
SIrio Mag 145 PL Mag Mount
Sirio SG-AC/U Angular Roof Mount Kit
Sirio KF Gutter Mount Kit
Sirio Mag 125 PL Mag mount
Product manual
