Product Information
Product Number: 2204715.00
Model: TaiFun VHF 118-480

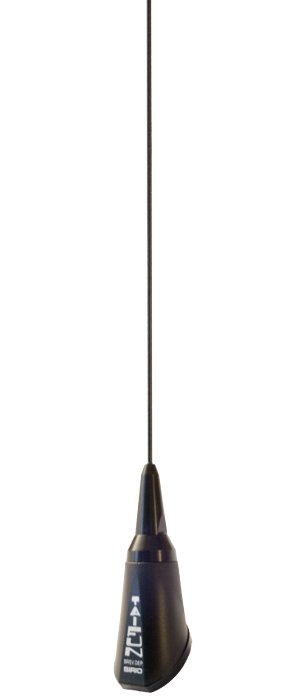

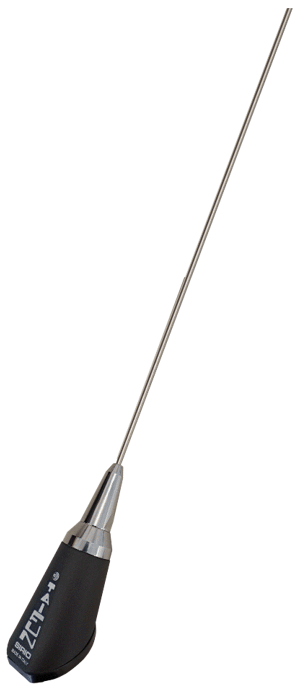

This antenna is designed to look like a standard car radio antenna, looking very similar to the "bee-sting" type radio aerials factory fitted to many cars.

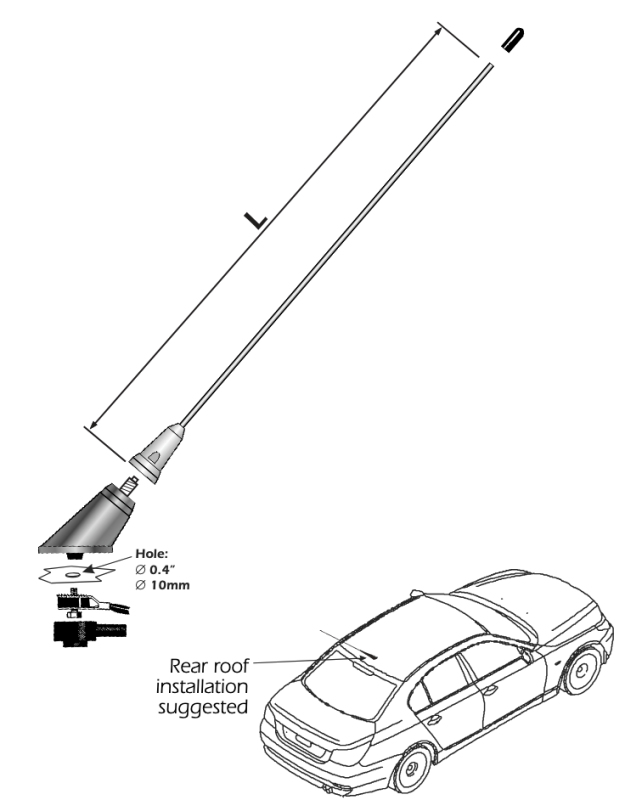

Because of it's design it needs to be mounted through a hole in a body panel (usually roof) so it's a permanant fixing although the aerial itself detaches for going through carwashes etc.

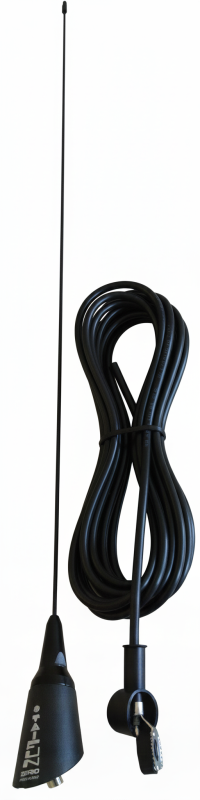

A neat design, Sirio's usual excellent build quality and supplied with 4m cable and plug.
Electrical Data
| Type: |
1/4 λ Mobile Antenna |
| Radiation: |
Directional |
| Polarization: |
Linear vertical |
| Frequency range: |
118 … 480 MHz Tunable |
| Systems: |
2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, ISM-169MHz, ISM/SIGFOX/LoRa 433MHz, VHF-260MHz |
| Gain: |
0 dB ref. to a λ/4 whip |
| Maximum power: |
100 W (CW) |
| Cable Length |
5.5 m (18.04 ft) / RG58 |
| Connector: |
Not Supplied |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
700 mm / 2.3 ft |
| Weight (approx): |
350 gr / 0.77 lb |
| Mounting type: |
Thru-Hole |
Product manual
|
