Product Information
Product Number: 2108101.00

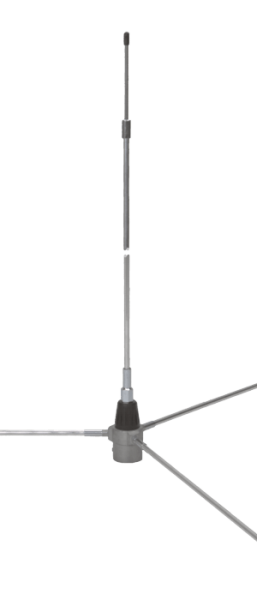

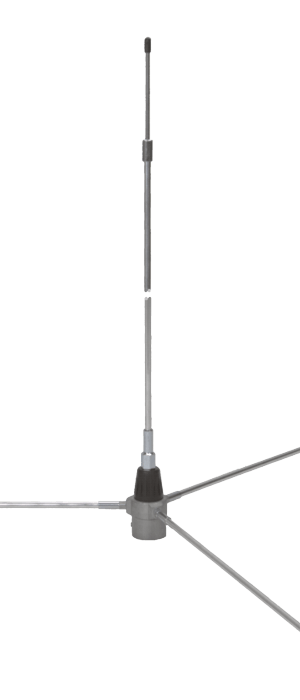

Model: GP 3-E
GP 3-E is made of non-corrosive aluminium and assembled on a very strong base of die-cast metal to get the maximum robustness and the best performance. Tuning is easy by following the attached directions
- Base station antenna, Omnidirectional
- Low-gain, Mono-band
- Suitable for land and marine service
- Tunable by whip cutting
- Protection from static discharges DC-Ground
- Made of aluminium alloy 6063 T-832
- Side mast mounting allowed by optional bracket FT-3 code 2511301.00
Electrical Data
| Type: |
5/8 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
140…175 MHz Tunable |
| Systems: |
2m-HAM, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, ISM-169MHz |
| Gain: |
1.5 dBd – 3.65 dBi |
| Maximum power: |
200 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
UHF-female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Brass, Nylon |
| Height (approx): |
1480 mm / 4.86 ft |
| Weight (approx): |
570 gr / 1.26 lb |
| Mounting type: |
On-mast |
Product manual

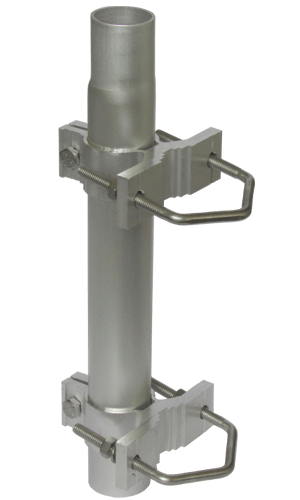

Optional Suitable Accessories: Sirio FT-3 Bracket
