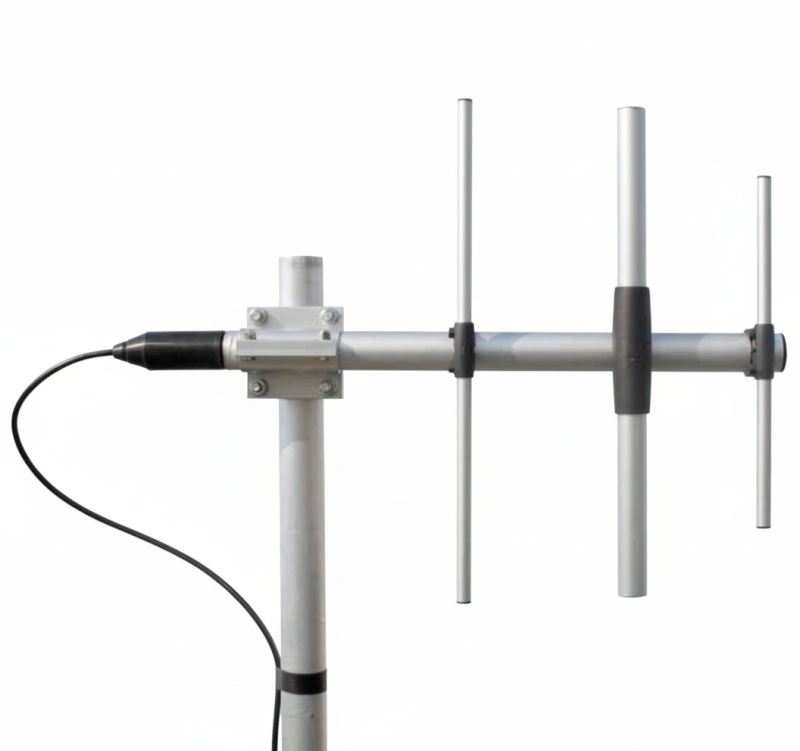

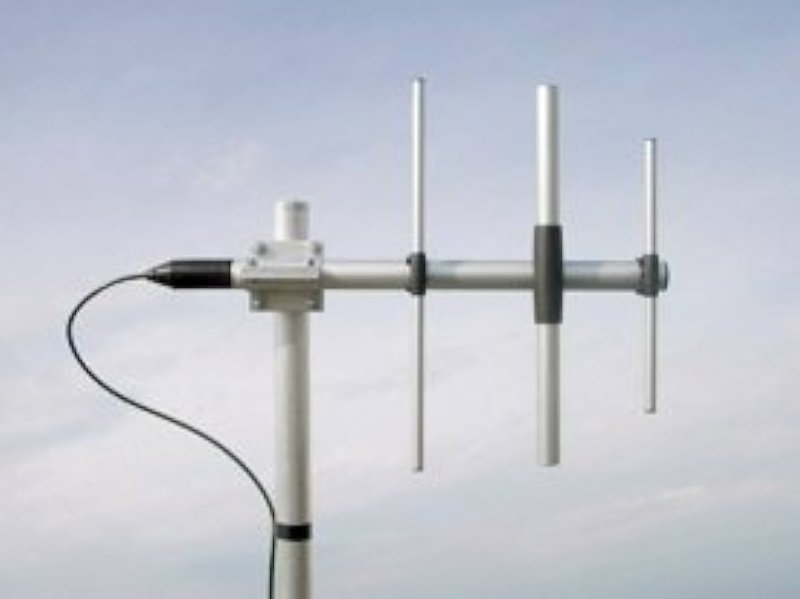

Sirio WY 400-3N 380-440 MHz 3 Element Yagi Antenna

Model: SIR-UHBA-403N

400 - 470 Mhz Professional UHF Antennna , no Tuning Required

Check In-Store availability
$149.00
Description
Reviews
  • Model
  • SIR-UHBA-403N

Description:

Product Information

Product Number: 2113501/400
Model: WY 400-3N

Base station antenna conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H).
It’s completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of Stainless steel or zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access.

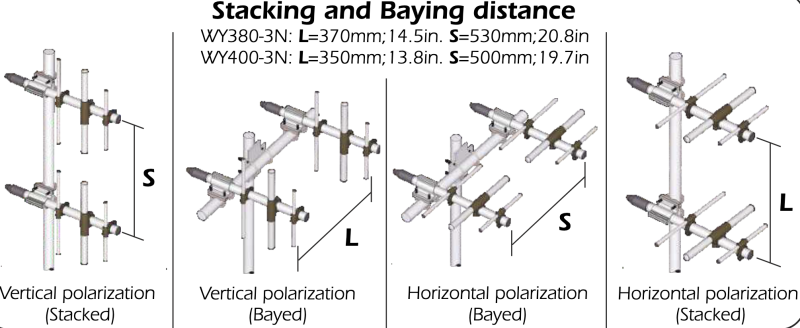

To increase the antenna gain please install it in stacked or bayed array.

Wide Band, Highly Symmetrical Radiation Pattern

  • Base station antenna, Directional

  • Wide band, High-gain

  • Highly symmetrical radiation pattern in both planes (E and H)

  • Protection from static discharges DC-ground

  • Made of anodized aluminium alloy

  • Stacked and bayed array for more gain

  • Optional: tilting bracket for +-20°

Electrical Data

Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Vertical
  400-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 4.85 dBd – 7 dBi
Maximum power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female

Mechanical Data

Materials: Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber
Height (approx): 525 x 375 mm / 1.72 x 1.23 ft
Weight (approx): 1100 gr / 2.43 lb
Mounting type: On-mast

Suitable Accessories:
Tilting bracket for WY series
