Product Information
Product Number: 2109620.00
Model: CPF 703N

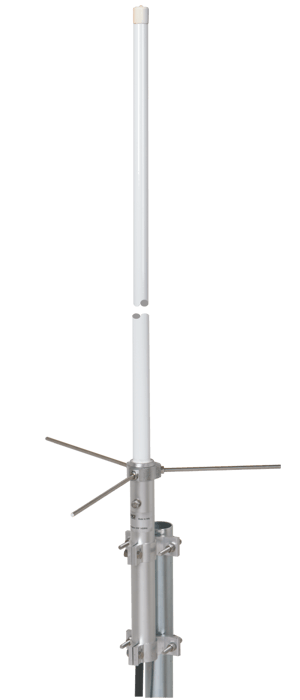

Sirio GPF 703N is a 3x5/8 λ ground plane base station collinear UHF base antenna. The rugged construction is made to last, the max. rated windspeed is approx. 160 km/h.
It Works on 370 – 510 mhz tunable by cutting. 6.75 dBi, 200W max power handling, the useable bandwidth is approx 14 MHz at an SWR of 2:0 or better, about 2230 mm (87.8 inch) long
The matching coil is DC feeded for perfect protection from the static discharges.
GPF 703-N is made of fiberglass, non-corrosive aluminum, stainless steel and its die-cast strong base assures the maximum robustness and the best performance tuning is easy by following the simple directions.
Electrical Data
| Type: |
3 X 5/8 λ ground plane colinear |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
370...510 MHz Tunable |
| Systems: |
70cm-HAM, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz |
| Gain: |
4.6 dBd – 6.75 dBi |
| Maximum power: |
200 W (CW) |
| Grounding protection: |
DC-Ground |

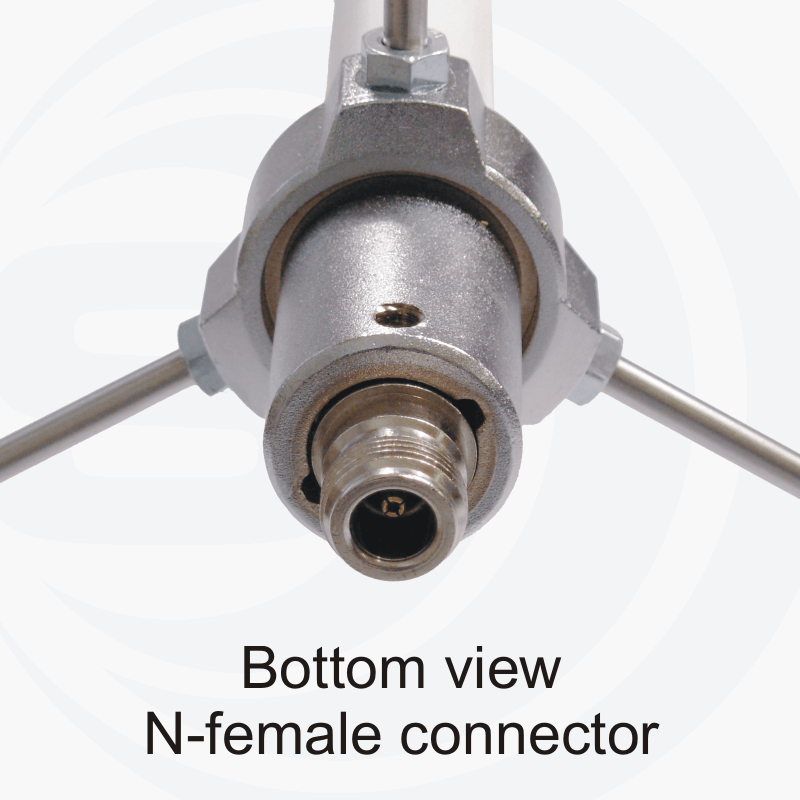

| Connector: |
N-female |
Mechanical Data
| Materials: |
Aluminium, Brass, Stainless steel, Fiberglass |
| Height (approx): |
2230 mm / 7.32 ft |
| Weight (approx): |
1160 gr / 2.56 lb |
| Mounting type: |
On-mast |
