Product Information
Product Number: 2100201.00
Model: Sirio 2008

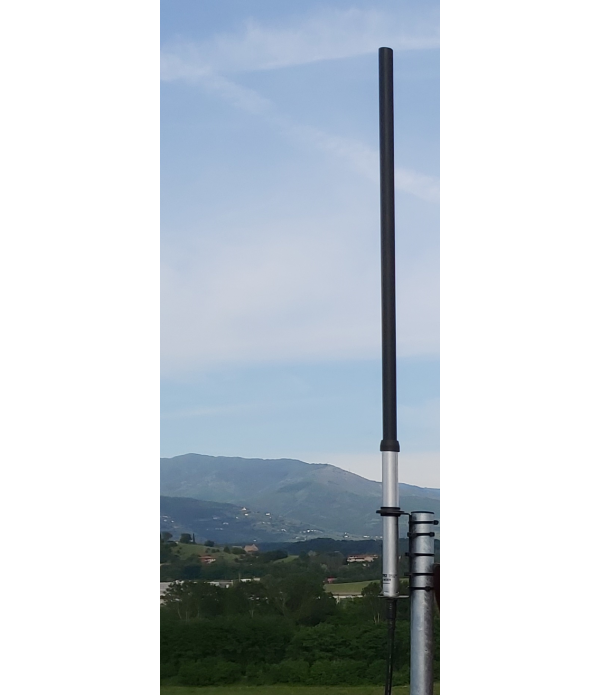

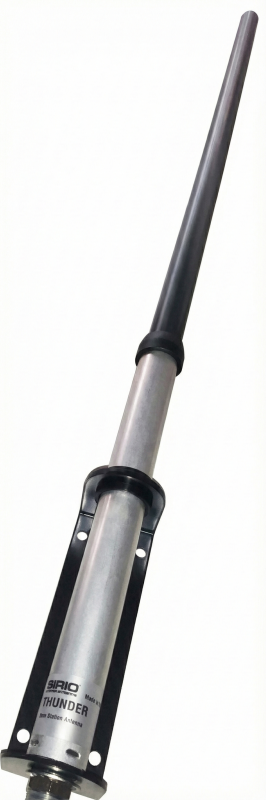

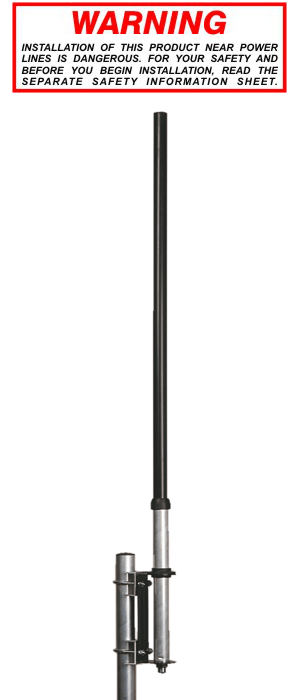

This Base CB 27 MHz 1/4 wave. Designed to pass unnoticed. Very discreet. It can be placed as a balcony. Also as a provisional base installation. It is composed of an elecoidal dipole encapsulated in a PVC tube in black and with UV protection. Frequency range between 27 and 29 MHz. Bandwidth ,PL-Female connector.
- Balcon or temporary installation antenna
- Omnidirectional
- Factory tuned at mid-band
- Designed to work without Ground Plane
Electrical Data
| Type: |
1/4 λ helical loaded dipole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
25 - 29 Mhz No Tuning Required |
| Systems: |
10m-CB |
| Gain: |
0 dBd, 2.15 dBi
≥ 5 MHz @ SWR ≤ 2 |
| Maximum power: |
100 Watts (CW) Continuous
300 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): |
960 mm / 3.15 ft |
| Weight (approx): |
700 gr / 1.54 lb |
| Mounting type: |
On-Mast |
