Product Information
| 2109205.00 |
SD 3000 U |
| 2109305.00 |
SD 3000 N |

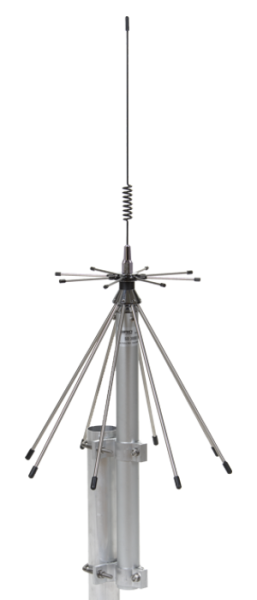

TThis antenna covers the frequency range of 300-3000 MHz and, due to its broadband concept, is suited for scanner and monitoring applications.
Wide-band discone antenna working on 300-3000 MHz in reception and on many amateur frequencies in transmission (70cm, 33cm, 23cm, 13cm). It is made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance. .
Easy to fit, it can be suitable for the installation everywhere.

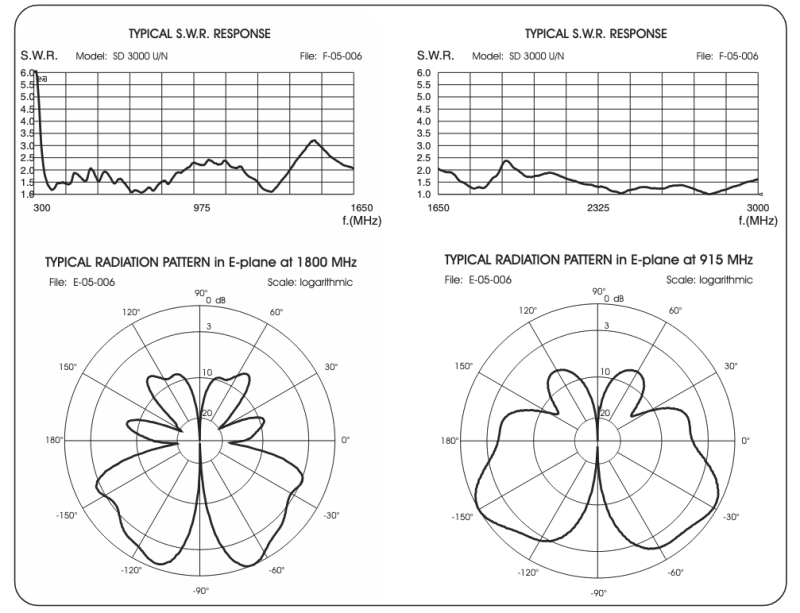

The antenna is capable also for transmit purposes, with a SWR = 2 and a transmitting power of up to 200 W, within the following ranges:
340-535 MHz
545-960 MHz
1180-1380 MHz
1660-1910 MHz
1980-3000 MHz
Electrical Data
| Type: |
Discone |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical or Horizontal |
| Frequency range: |
RX band: 300-3000 MHz
TX band (@ SWR ≤2): 340-535, 545-960, 1180-1380, 1660-1910, 1980-3000 MHz |
| Systems: |
70cm-HAM, TETRA-350, CDMA-450, GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, ISM/SIGFOX/LoRa 433MHz, WiFi-2.4GHz |
| Gain: |
0 dBd – 2.15 dBi @ lowest frequency |
| Maximum power: |
200 Watts |

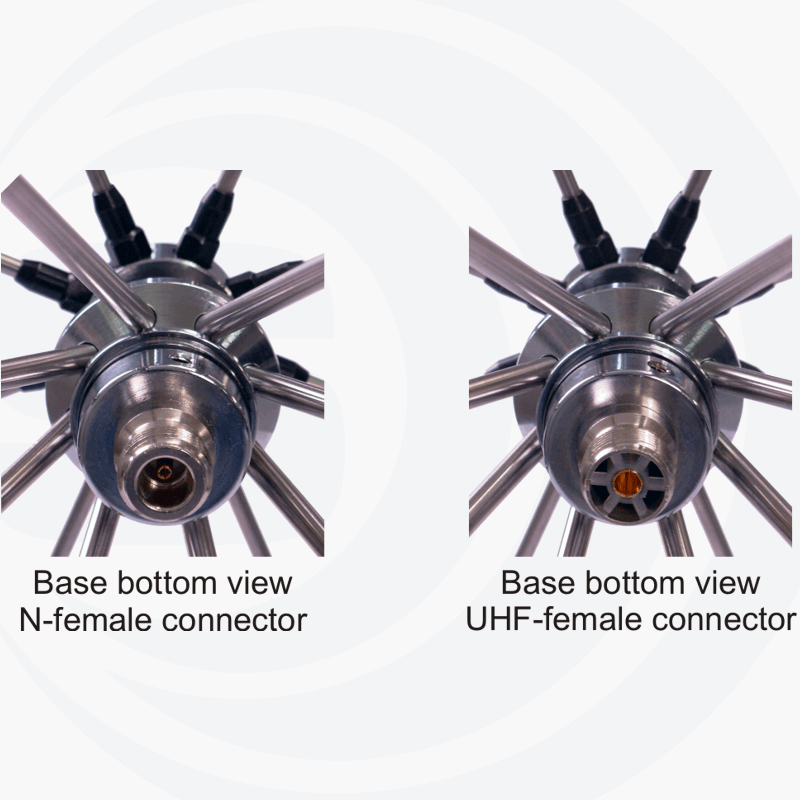

| Connector: |
N-female or U (SO-239) |
Mechanical Data
| Materials: |
Chromed brass, Stainless steel, Nylon |
| Height (approx): |
725 mm / 2.38 ft |
| Weight (approx): |
830 gr / 1.83 lb |
| Mounting type: |

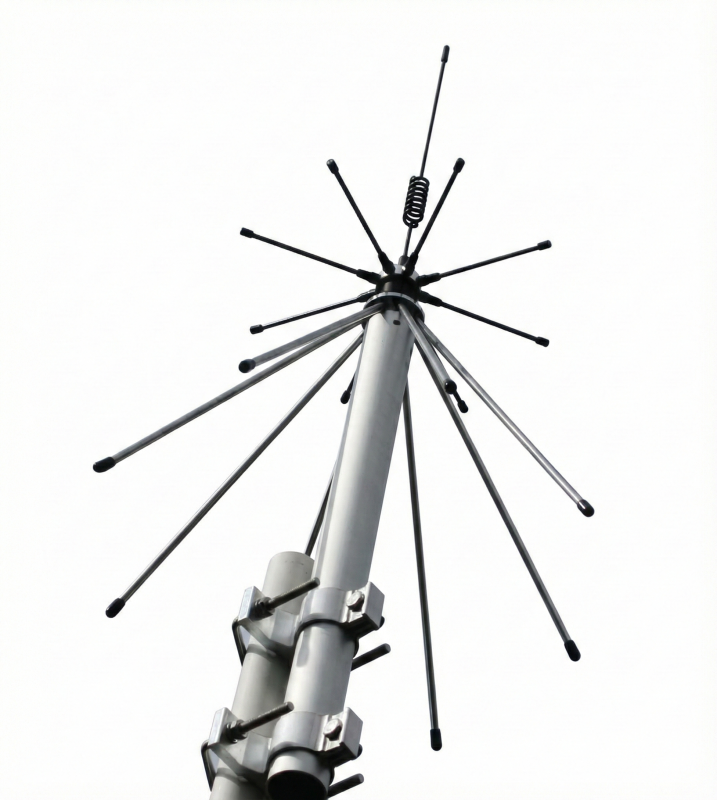

On-Mast |
