Product Information
Product Number: 2115120.420
Model: SPO 420-5

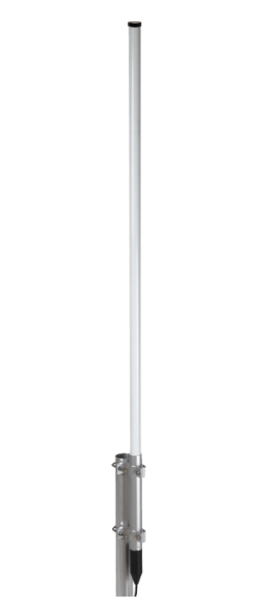

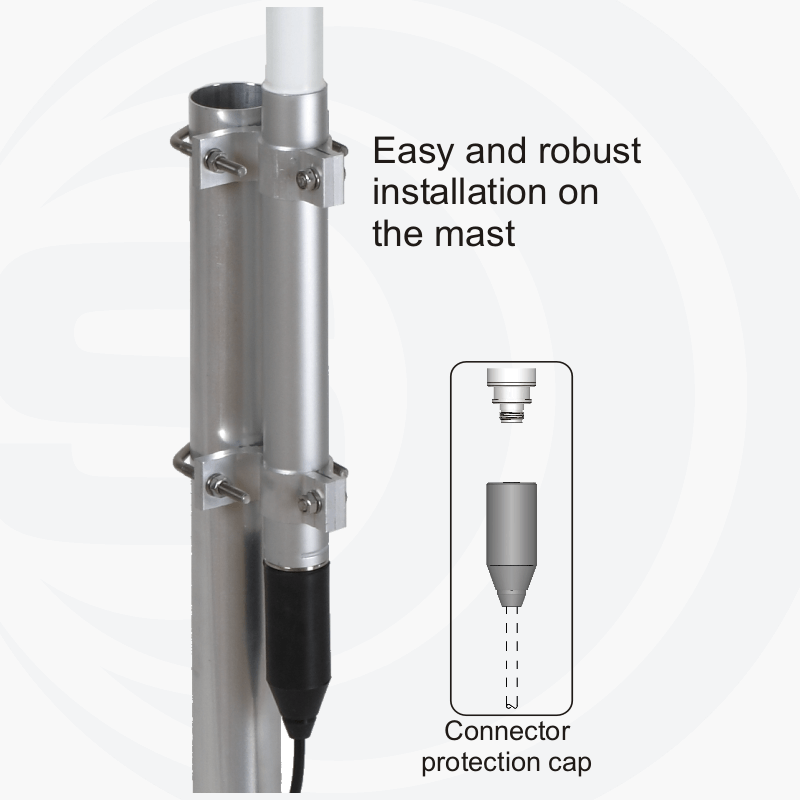

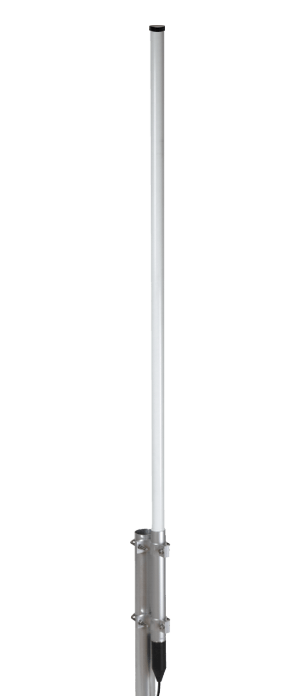

New series of wide band omnidirectional base station antennas for UHF band suitable for marine service too. The fiberglass protection radome and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.
- Base station antenna, Wide-band
- Unity-gain, Omnidirectional
- Suitable for land and marine service
- Protection from static discharges DC-Ground
- Perfect protection against the worst weather conditions
- Designed to work without Ground Plane
Electrical Data
| Type: |
Colinear |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
420-470 MHz @ SWR ≤1.5 No tuning required |
| Systems: |
70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz |
| Gain: |
|
| Maximum power: |
75 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
N-female |
Mechanical Data
| Materials: |
Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber |
| Height (approx): |
1230 mm / 4.04 ft |
| Weight (approx): |
1160 gr / 2.56 lb |
| Mounting type: |
On-mast |
