Product Information
Product Number: 2112920/437
Model: SO 437N

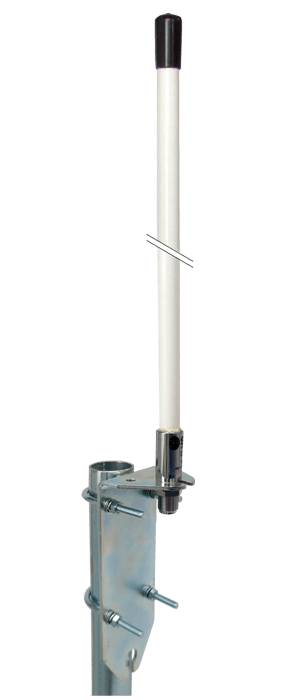

Base station Antenna conceived for 430-450 Mhz systems, The radiant element are made of brass and protected by a strong fiberglass tube
- Base station antenna, Mono-band
- Low-gain, Omnidirectional
- Protection from static discharges DC-Ground
- Made of aluminium alloy 6063 T-832
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
430-450MHz |
| Systems: |
70cm-HAM, ISM/SIGFOX/LoRa 433MHz |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
20 W (CW) |
| Grounding protection: |
DC-Ground |

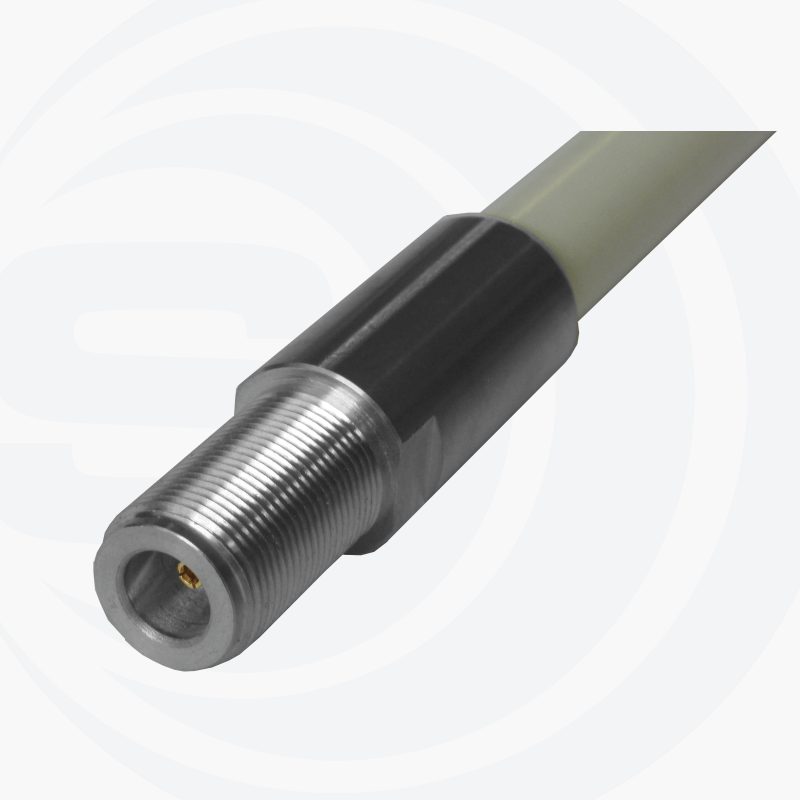

| Connector: |
N-female |
Mechanical Data
| Materials: |
Copper, Chromed brass, Fiberglass |
| Height (approx): |
530 mm / 1.74 ft |
| Weight (approx): |
150 gr / 0.33 lb
|
| Mounting type: |
Thru-Holes, On-Wall |
