Product Information
Product Number: 2430405.05

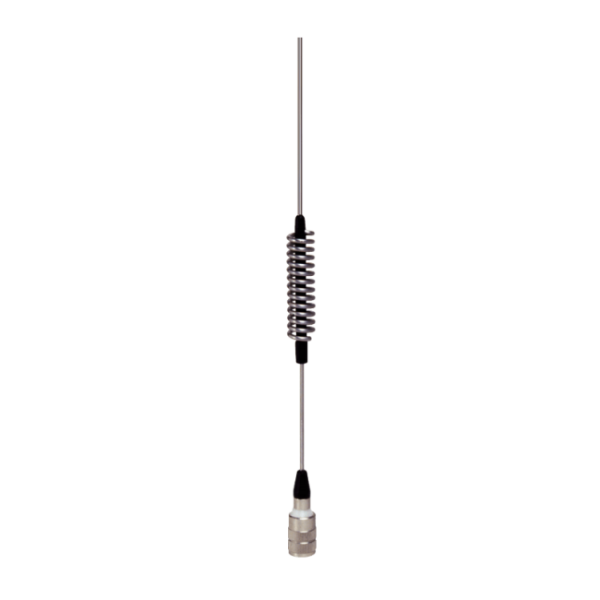

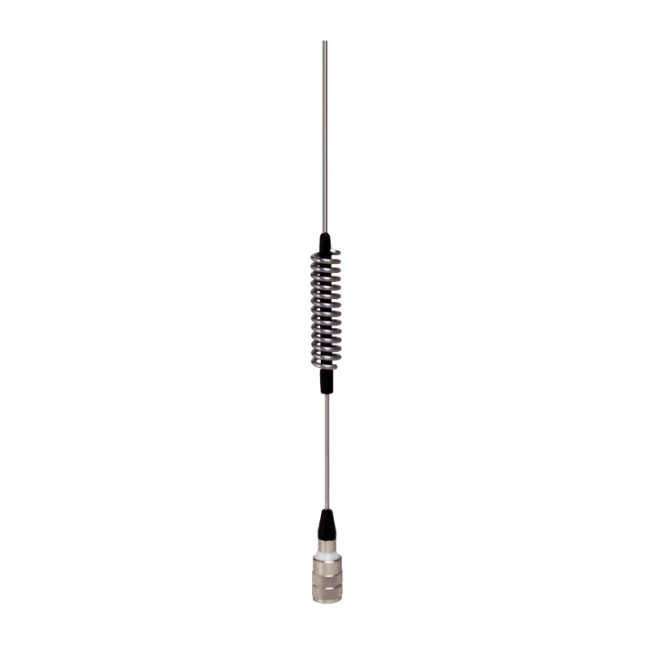

Model: SU 375-480 PL
- Suitable for fitting on magnetic mounts, angular connectors, or portable transceiver
- Omnidirectional, Mono-band
- Medium-gain
- Tunable by whip cutting
- 17/7 PH stainless steel spring whip
- Supplied with nylon reinforce part inside the spring whip
- Magnetic mount version available
Electrical Data
| Type: |
1/4 λ + 1/2 λ colinear |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
375…480 MHz Tunable |
| Systems: |
70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz |
| Bandwidth: |
≥ 30MHz @ SWR ≤ 2 |
| Gain: |
3.5 dB ref. to a λ/4 whip |
| Maximum power: |
100 Watts (CW) continuous |
| Connector: |
UHF-male (PL-259) |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
750 mm / 2.46 ft |
| Weight (approx): |
125 gr / 0.28 lb |
| Mounting type: |
On-Connector |
Suitable Acccessories:
Sirio Mag 125 PL Mag mount
