Product Information
Product Number: 2106101.00/N
Model: CX 220 N

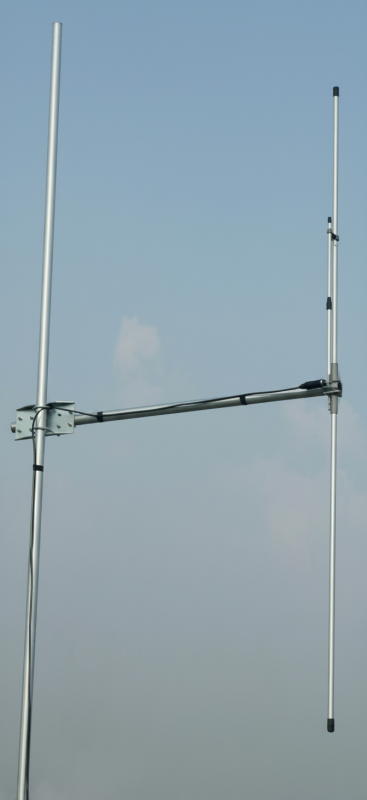

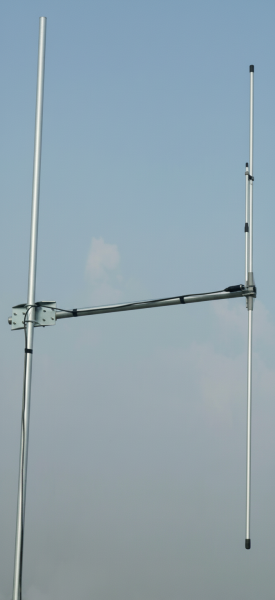

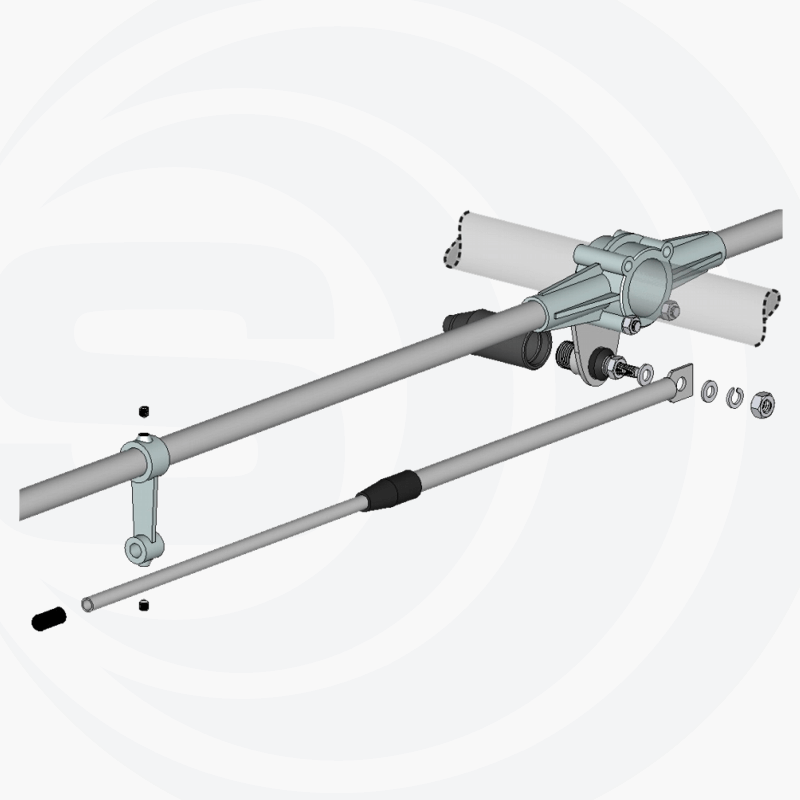

Dipole base station antenna working on 87 - 194 Mhz by cutting. Optimized for vertical polarization it can be also placed in horizontal polarization. The elements are fixed to the boom by a strong die-cast metal support to get the maximum strength.
All connections are waterproof and it is supplied with UHF female connector. To inprove the antenna gain please install it in stacked or bayed array.
- Base station antenna, Mono-band
- Unity-gain, Horizontal or Vertical polarization
- Directional (if Horizontal) or Omnidirectional (if Vertical)
- Made of aluminium alloy 6063 T-832
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Directional |
| Polarization: |
Linear Vertical or Horizontal |
| Frequency range: |
87…194 MHz Tunable |
| Systems: |
6m-HAM, 2m-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz |
| Bandwidth: |
≥ 14.5MHz @ SWR ≤ 1.5 |
| Gain: |
1.85 dBd - 4 dBi (vertical polarization only) |
| Maximum power: |
300 W (CW) |
| Grounding protection: |
All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: |
UHF-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
1600 x 1030 mm / 5.25 x 3.38 ft |
| Weight (approx): |
1850 gr / 4.08 lb |
| Mounting type: |
On-mast |
Product manual
|
