Product Information
Product Number: 2103201.00
Model: StarDuster M-400

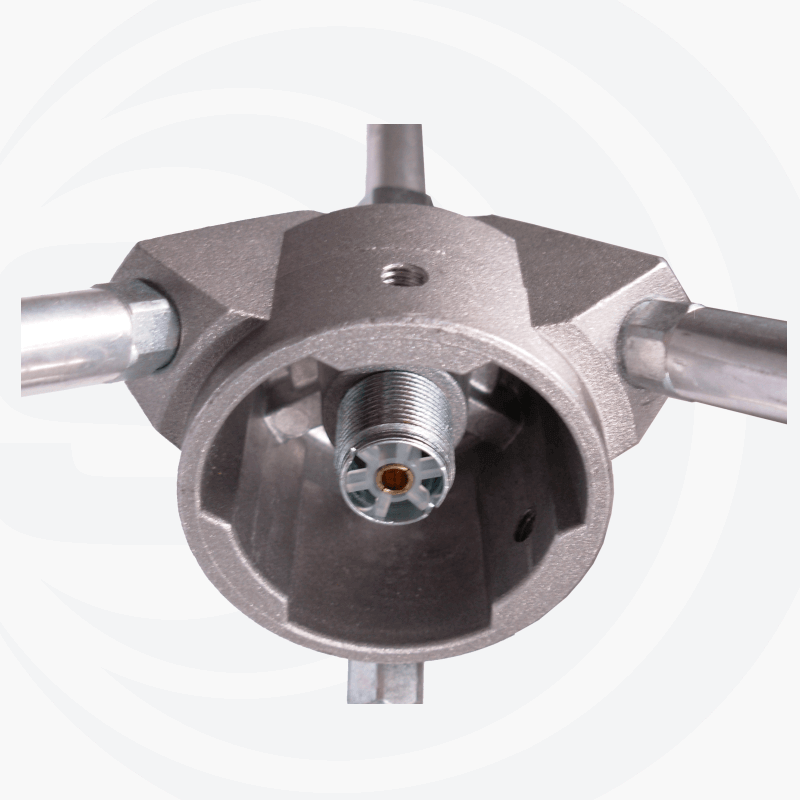

Very Popular Base Station Antenna tunable from 26.5 to 30Mhz. It's made of anti-corodal aluminium tube and supplied with a strong die cast base and a plastic arms bracket to reinforce the radials. It's easy to tune at the desired working frequency.
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
26.5 - 30 MHz Tunable |
| Systems: |
10m-CB |
| Bandwidth: |
≥ 2.5 MHz @ SWR ≤ 2 |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
1000 Watts (CW) continuous
3000 Watts (CW) short time |
| Grounding protection: |
DC-Ground |
| Connector: |
UHF-female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
5040 mm / 16.54 ft |
| Weight (approx): |
1230 gr / 2.71 lb
|
| Mounting type: |
On-mast |
Product manual
Optional Suitable Accessories: Sirio FT-2 Bracket
