Product Information
Product Number: 2130003.00
Model: SPH-1.5÷6-17

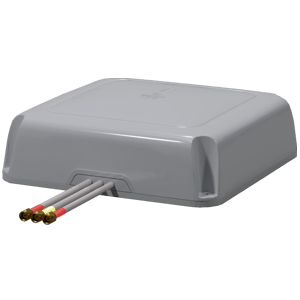

# Low profile antenna for use on vehicles outdoor and indoor installation
# 5G MiMo 2x multi systems (2G-GSM, 3G-UMTS, 4G-LTE, 5G, LTE 700, ISM/LoRa, etc)
# W-LAN Dual Band (2.4-2.485 GHz & 5.15-6 GHz)
# 5G MiMo 2x: Protection from static discharges DC-Ground
# Ground Plane indipendent
# High Antenna Efficiency
# Side Cable Outlet
# Completely sealed and waterproof IP65
Electrical Data
| Type: |
|
Wide Band Low Profile (Ground plane independent) |
| Radiation: |
|
Omnidirectional |
| Polarization: |
|
Linear vertical |
| Frequency range: |
|
5G MiMo 2x:
698-960 MHz & 1.71- 3.8 GHz (2G, 3G, 4G, 5G)
W-LAN:
2.4-2.485 GHz & 5.15-6 GHz (W-Lan Dual band) |
| Systems: |
|
4G-LTE, 5G, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, WiFi-5GHz, V2X |
| Gain: |
|
5G MiMo 2x:
3 dBi @ 698-960 MHz; 7 dBi @ 1.71-3.8 GHz
W-LAN:
3 dBi @ 2.4-2.485 GHz; 7 dBi @ 5.15-6 GHz |
| Maximum power: |
|
10 Watts |
| Cable: |
|
3x 2 m (9.84 ft) / Low loss |
| Connector: |
|
2 x SMA-male, SMA-male Reverse polarity |
| Tyical Efficiency: |
|
5G MiMo 2x: > 80 % @ 698-960 MHz; > 85 % @ 1.71-3.8 GHz;
W-LAN: > 90 % |
| Correlation Coeffient: |
|
5G MiMo 2x: < 0.05 |

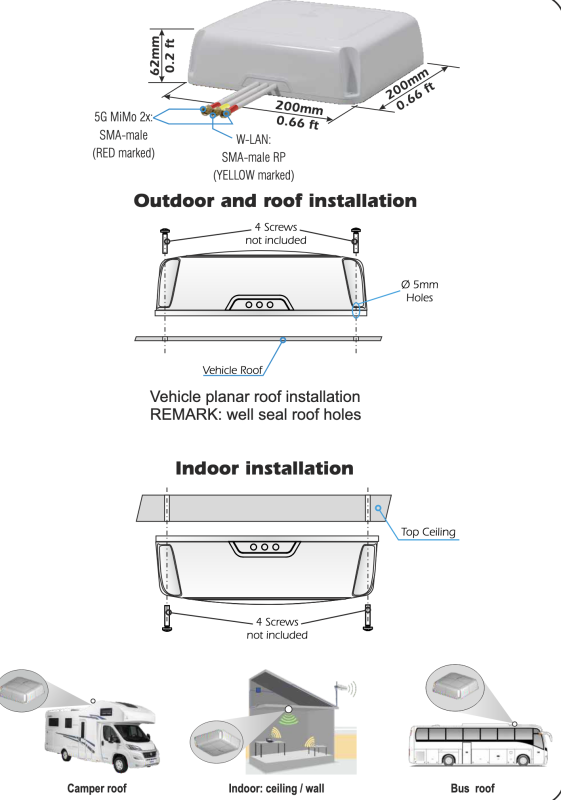

Mechanical Data
| Materials: |
Brass, Thermoplastic UV stabilized, PCB |
| Height (approx): |
62 x 200 x 200 mm / 0.2 x 0.66 x 0.66 ft |
| Weight (approx): |
400 gr / 0.88 lb |
| Mounting type: |
On-Mast, On-Wall |
