Product Information
Product Number: 2133320.00

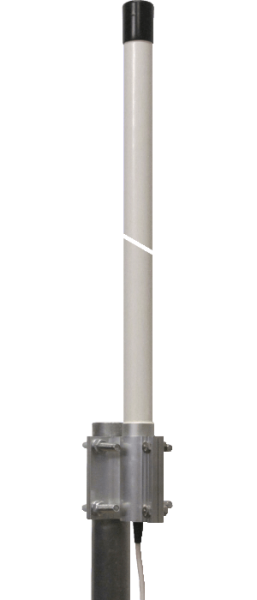

Model: SPO 1090-6
Electrical Data
| Type: |
Colinear |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
1090 MHz (No tuning required) |
| Systems: |
ADS-B 1090 MHz |
| Gain: |
3.8 dBd (approx. 6 dBi) |
| Maximum power: |
20 W (CW) |

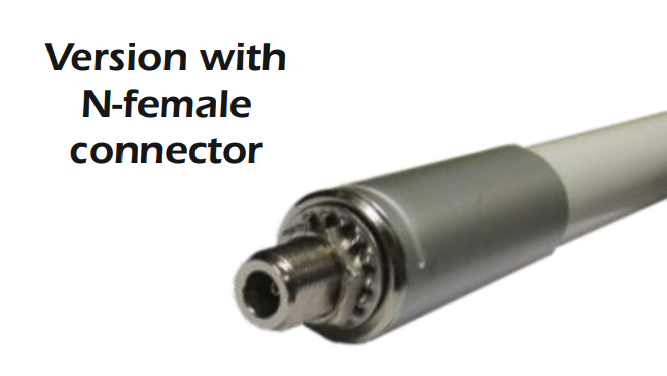

| Connector: |
N-female |
Mechanical Data
| Materials: |
Anodized aluminium, nickel-plated brass, fiberglass, PCB |
| Height (approx): |
690 mm / 2.26 ft |
| Weight (approx): |
390 g / 0.86 lb |

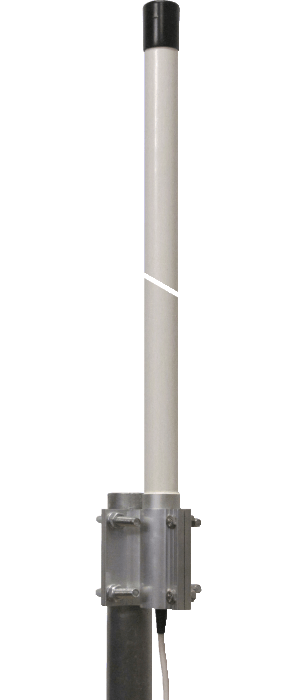

| Mounting type: |
On-mast, on-wall |
Product manual
|
