Product Information
Product Number: 210501.00
Model: GPA 170-230

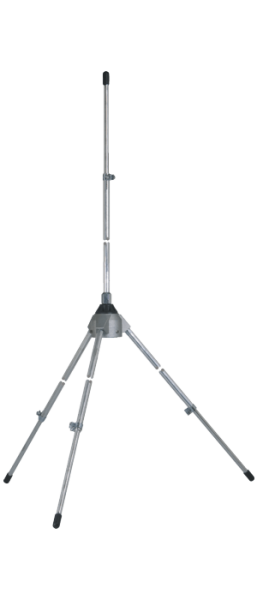

Sirio GPA 170-230 is 1/4 λ VHF base antenna for professional 170-230 MHz. Manufactured from robust aluminim alloy and weather proof plastics. High quality materials garrantee maximum effectivŠµness and long term exploitation.
Sirio GPA 170-230 VHF antenna type ground plane for base station applications in frequency range 170-230 Mhz tunable base antenna.
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
170 … 230 MHz Tunable |
| Systems: |
VHF Airband |
| Bandwidth: |
≥ 19 MHz @ SWR ≤ 2 |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
300 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
UHF-female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
760 mm / 2.49 ft |
| Weight (approx): |
480 gr / 1.06 lb |
| Mounting type: |
On-mast |
Product manual
Optional Suitable Accessories: Sirio FT-2 Bracket
