Product Information
Product Number: 2108501.00
Model: GPA 108-136

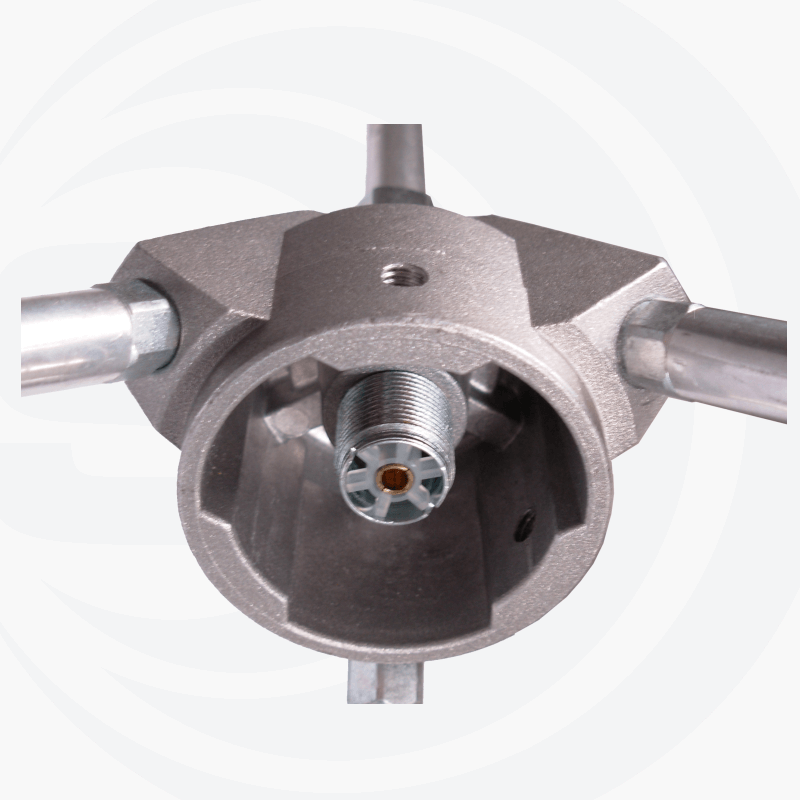

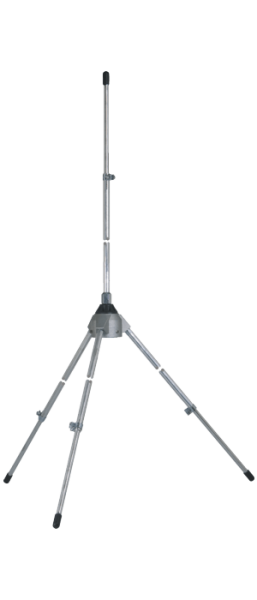

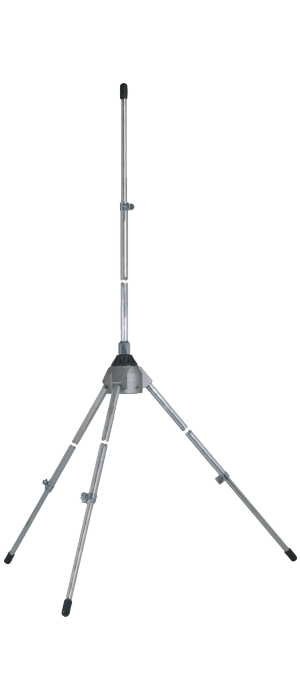

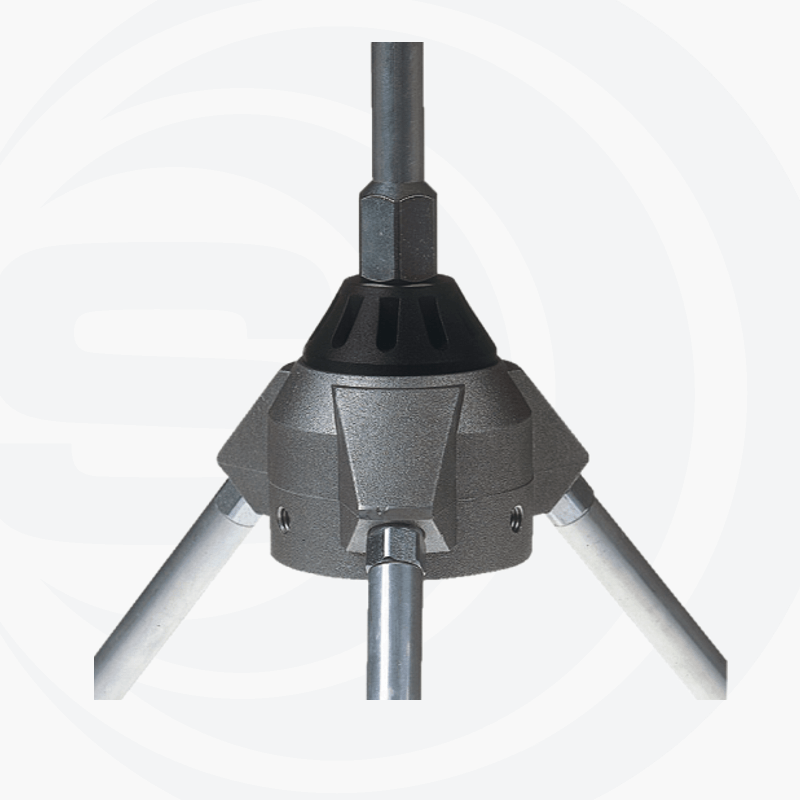

Sirio GPA 108-136 is 1/4 λ VHF base antenna for professional Air Band 108-136MHz. Manufactured from robust aluminim alloy and weather proof plastics. High quality materials garrantee maximum effectivŠµness and long term exploitation.
Sirio GPA 108-136 - VHF antenna type ground plane for base station applications in frequency range 108MHz - 136MHz tunable base antenna.
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
108 … 136 MHz Tunable |
| Systems: |
VHF Airband |
| Bandwidth: |

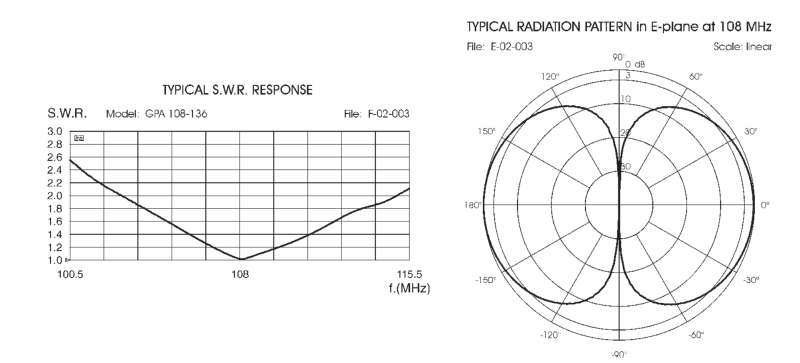

≥ 12.2MHz @ SWR ≤ 2 |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
500 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
UHF-female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
1185 mm / 3.89 ft |
| Weight (approx): |
520 gr / 1.15 lb |

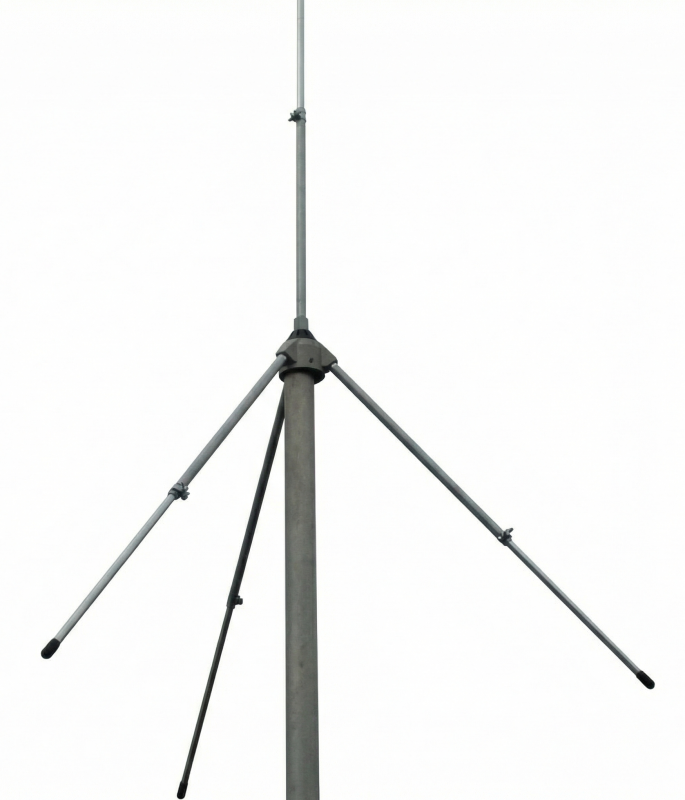

| Mounting type: |
On-mast |
Product manual

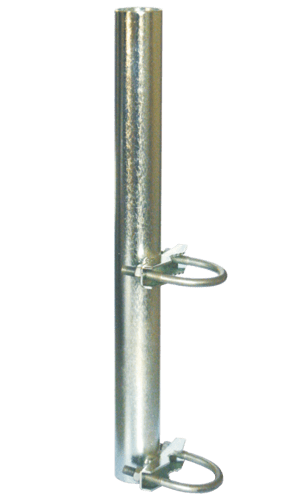

Optional Suitable Accessories: Sirio FT-2 Bracket
