Product Information
Product Number: 2115020/118
Model: SPO-118-2

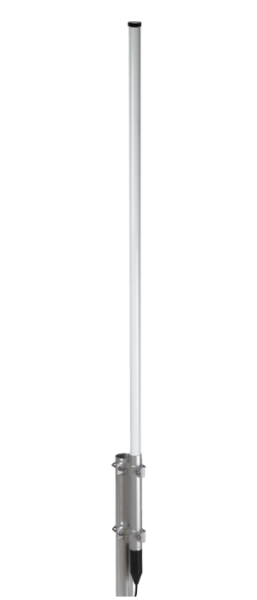

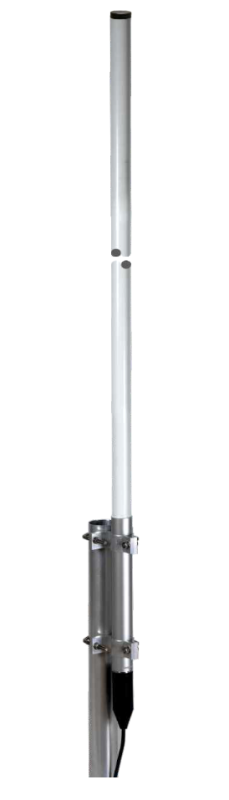

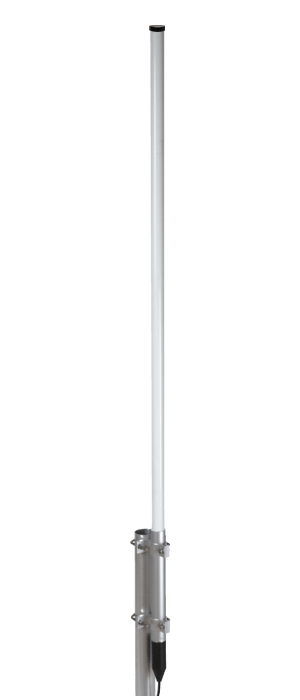

Wide band omnidirectional base station antenna suitable for VHF AIR band. The fiberglass protection radome and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |

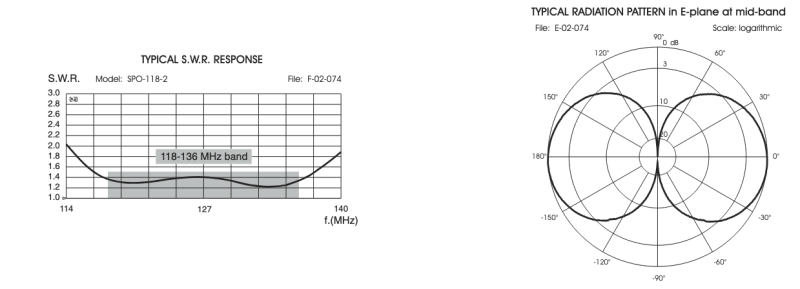

| Frequency range: |
TX: 118-136 MHz @ SWR ≤1.5 (No tuning required)
RX: 108-136 MHz |
| Systems: |
VHF Airband |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
100 W (CW) |
| Grounding protection: |
DC-Ground |

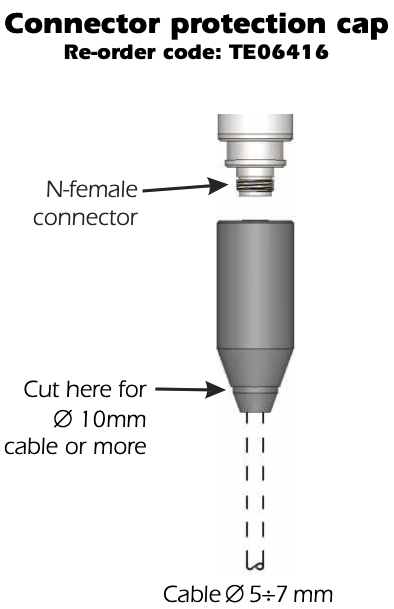

| Connector: |
N-female |
Mechanical Data
| Materials: |
Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber |
| Height (approx): |
1700 mm / 5.58 ft |
| Weight (approx): |
1400 g / 3.09 lb |
| Mounting type: |
On-mast |
