Product Information
Product Number: 2113501/108
Model: WY 108-3N

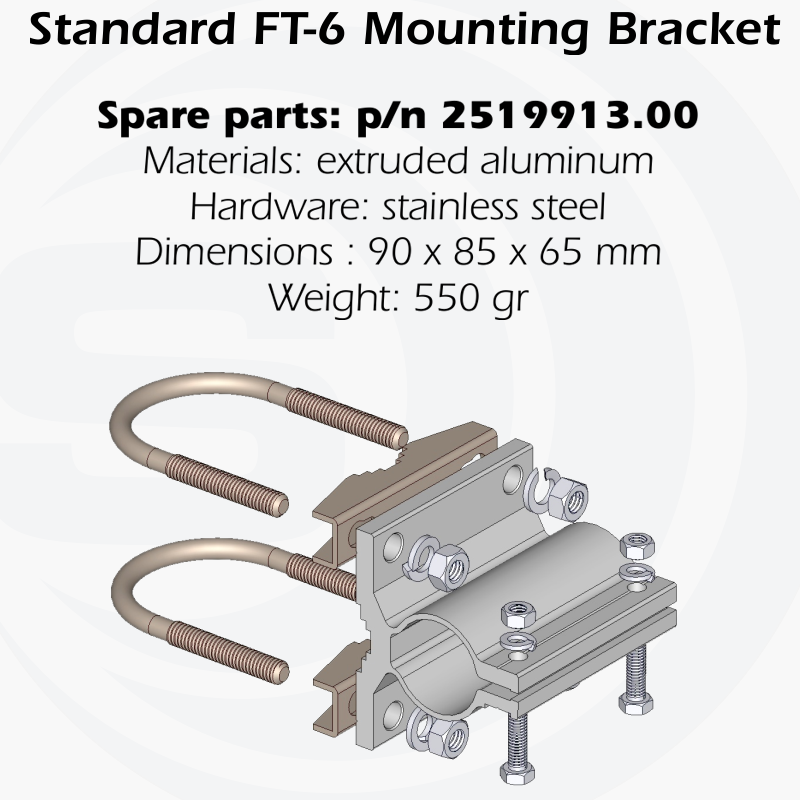

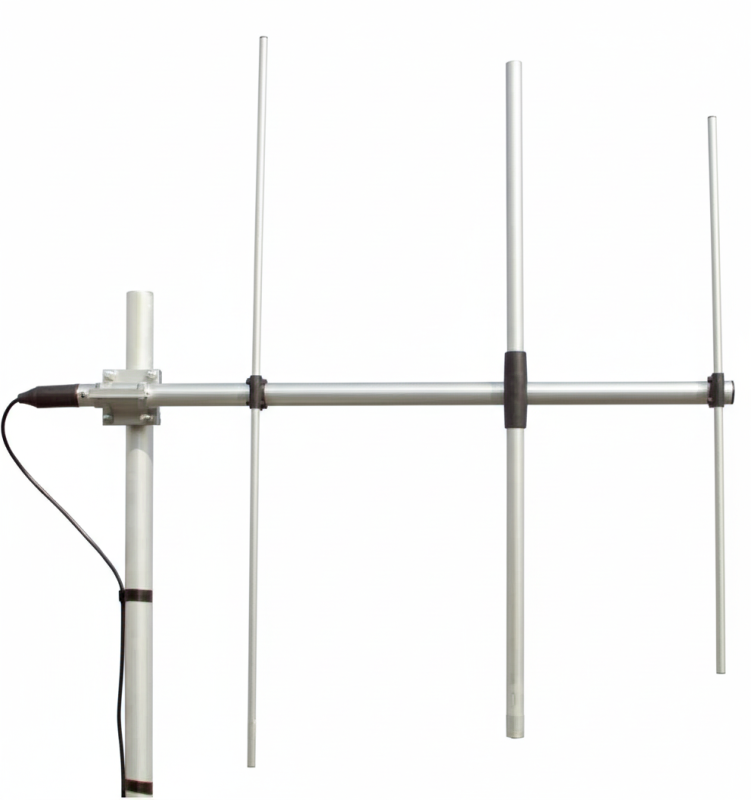

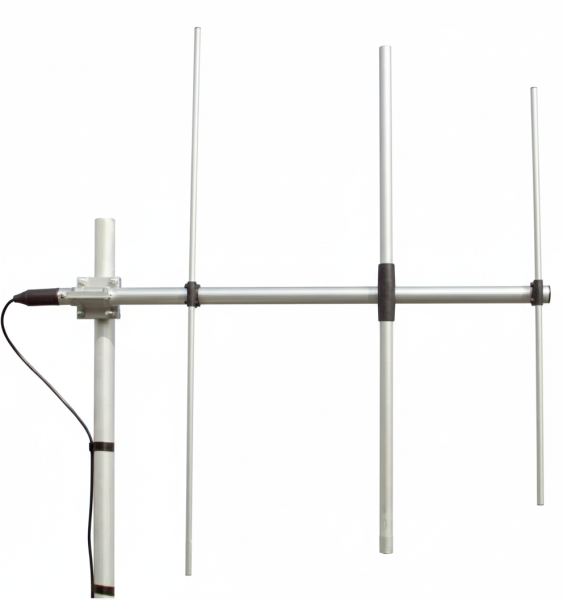

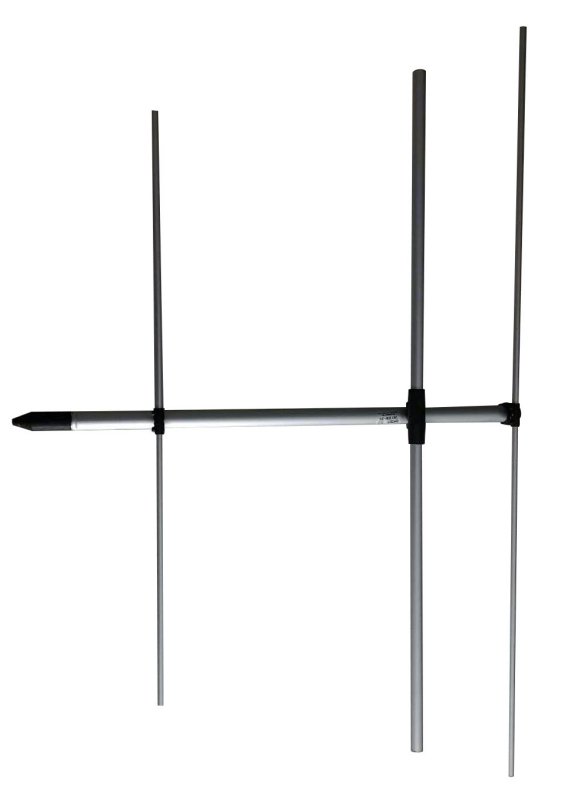

Base station antenna conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H). It’s completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of Stainless steel or zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access. To increase the antenna gain please install it in vertical stacked array.

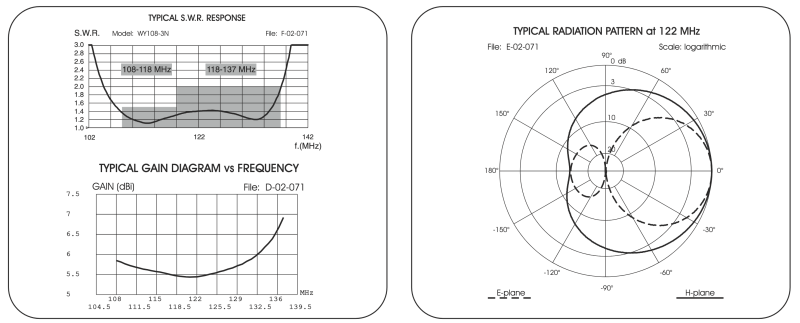

Electrical Data
| Type: |
3 elements Yagi |
| Radiation: |
Directional |
| Polarization: |
Linear Vertical or Horizontal |
| Frequency range: |
118-137 MHz No tuning required |
| Systems: |
VHF Airband |
| Gain: |
4.85 dBd - 7 dBi |
| Maximum power: |
200 W (CW) |
| Grounding: |
DC-Ground |
| Connector: |
N-female |
Mechanical Data
| Materials: |
Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber |
| Height (approx): |
1400 x 910 mm / 4.59 x 2.99 ft |
| Weight (approx): |
1860 gr / 4.1 lb |
| Mounting type: |
On-Mast |
Product manual

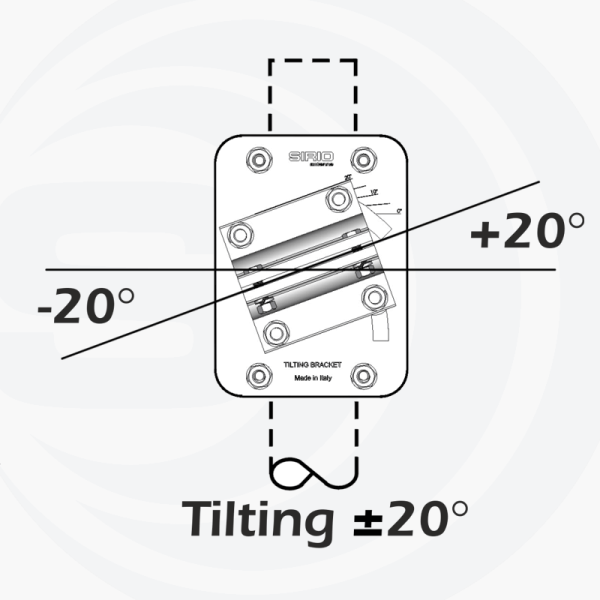

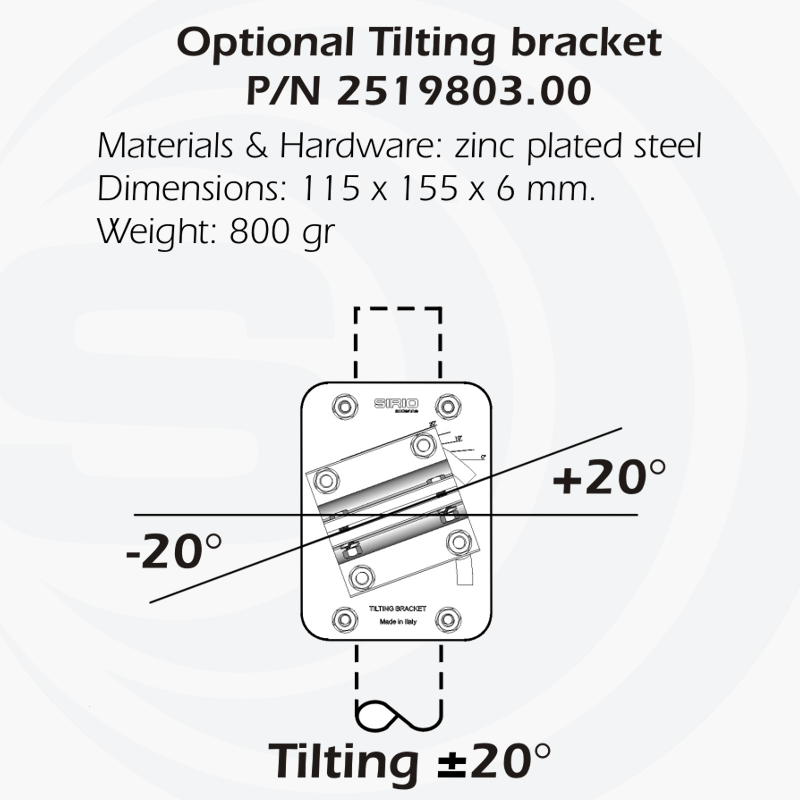

Optional Suitable Accessories: Sirio Steel Tilting Bracket
