Product Number: 2113301/380
Model: WD 380-N

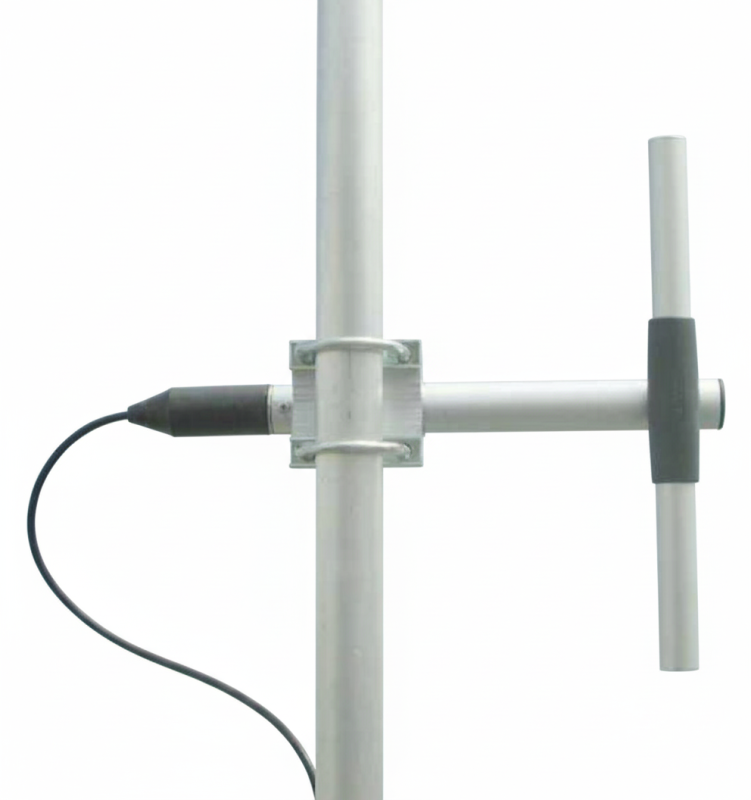

Base station antenna conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H).
It’s completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of Stainless steel or zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access.

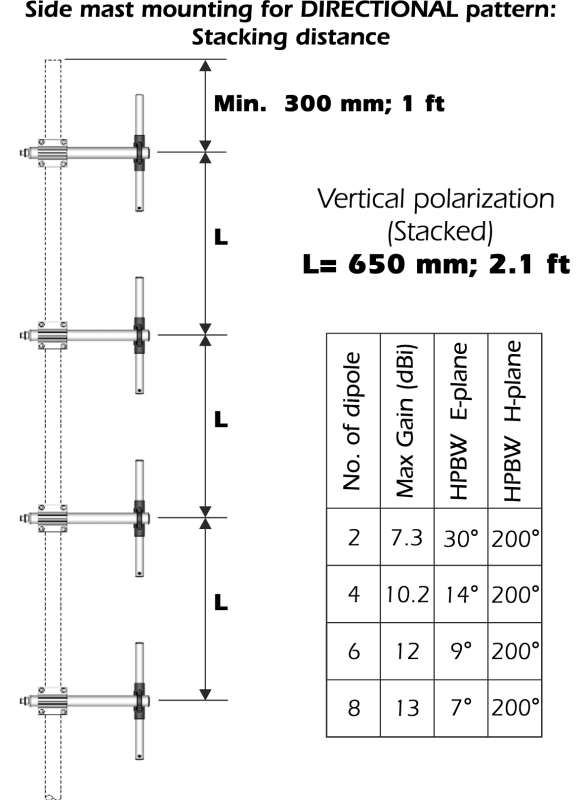

To increase the antenna gain please install it in stacked or bayed array.
Wide Band, Highly Symmetrical Radiation Pattern
-
Base station antenna, Directional
-
Wide band, High-gain
-
Highly symmetrical radiation pattern in both planes (E and H)
-
Protection from static discharges DC-ground
-
Made of anodized aluminium alloy
-
Stacked and bayed array for more gain
-
Optional: tilting bracket for +-20°
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Directional |
| Polarization: |
Linear vertical |

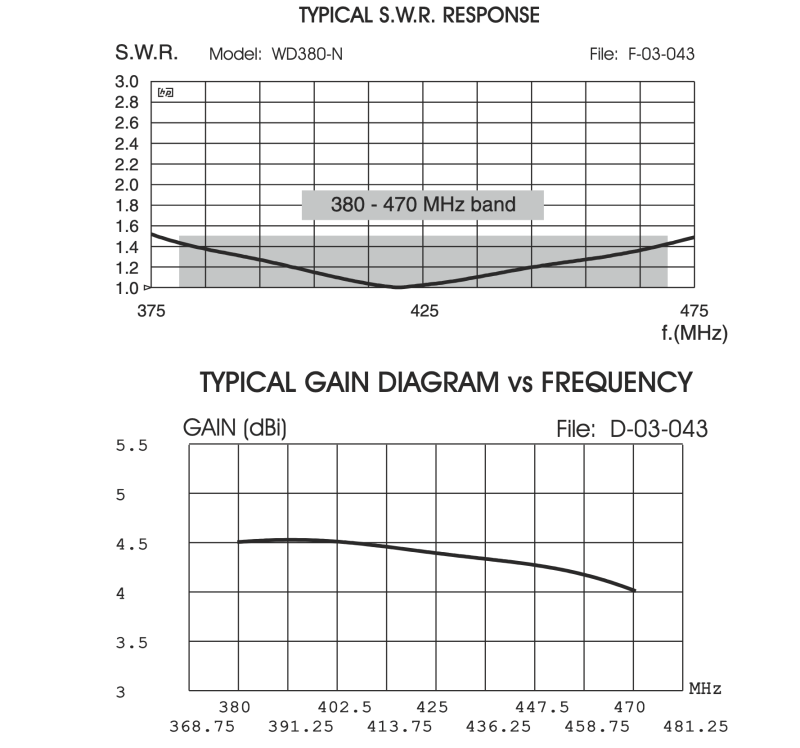

| Frequency range: |
380-470 MHz @ SWR ≤1.5 No tuning required |
| Systems: |
70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz |
| Gain: |
2.35 dBd – 4.5 dBi |
| Maximum power: |
150 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
N-female |
Mechanical Data
| Materials: |
Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber |
| Height (approx): |
380 x 340 mm / 1.25 x 1.12 ft |
| Weight (approx): |
950 gr / 2.09 lb |
| Mounting type: |
On-mast |
