Sirio Turbo 800 S PL Blue Line 10m & CB Mobile Antenna

Model: SIR-CBMA-8KPL

27-8.5 Mhz Tunable Mobile Antenna

Check In-Store availability
$64.00
  • Model
  • SIR-CBMA-8KPL

Description:

Product Information

Product Number: 2201905.41

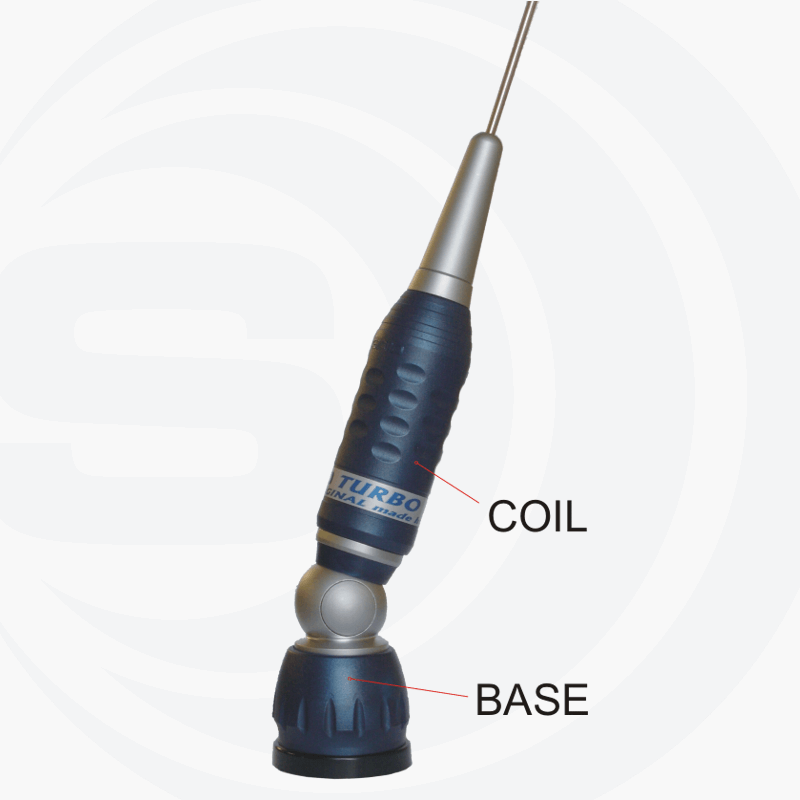

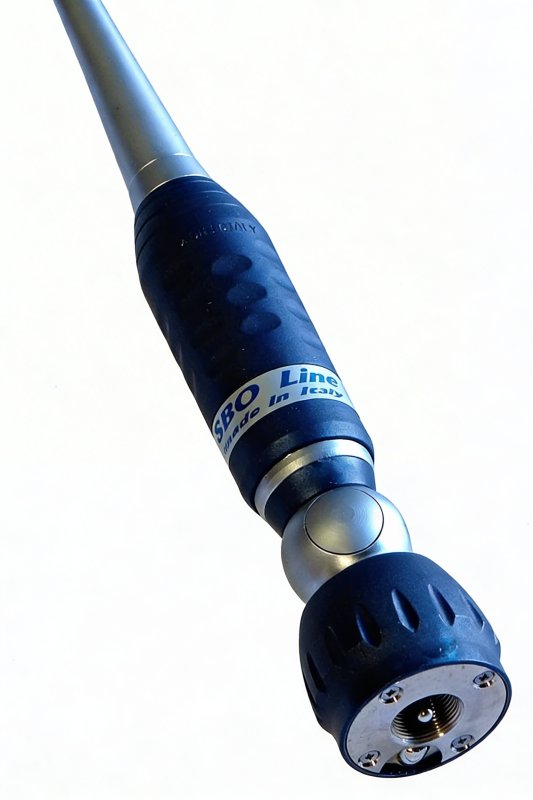

Model: TURBO 800 S PL Blue Line

TURBO series are a vehicular antennas working on 27 MHz or 10 m band. The whip is made of 17/7 PH stainless steel and all the metallic parts are of chromed brass to get the best robustness.

  • CB & 10m Mobile antennas
  • Tunable from 27 to 28.5 MHz
  • Protection from static discharges DC-Ground
  • 17/7 PH tapered stainless steel whip
  • 90° inclination and adjustable whip, detachable for car-wash
  • Glazed chromed surface, blue plastic parts

Electrical Data

Type: Base Loaded
Radiation: Omnidirectional
Polarization: Linear Vertical
Frequency range: 27 - 28.5 MHz Tunable
≥ 430KHz @ SWR ≤ 2
Systems: 10m-CB-HAM
Max Power: 200 Watts (CW) continuous
1000 Watts (CW) short time
Grounding: DC-Ground
Connector: U-Female  (SO-239)

Mechanical Data

Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx): 840 mm / 2.76 ft
Weight (approx): 300 gr / 0.66 lb



Suitable Accessories:

- SGAC Root Mount Kit

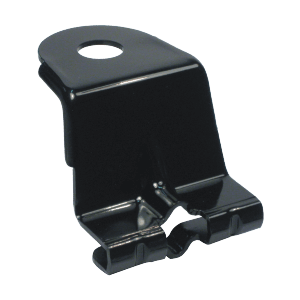

- ABN-2 Truck Mount Adaptor

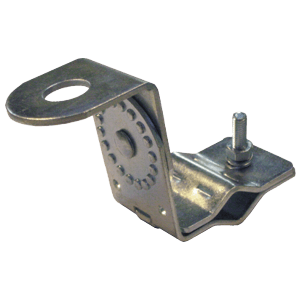

- ASP-1 Mirror Mount

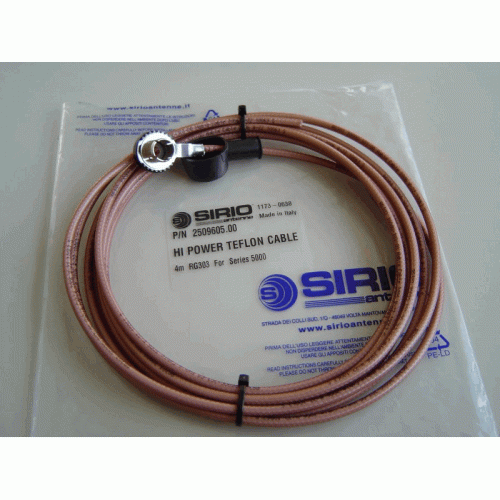

- RG303 2000 Watts Power Cable

- Mag 145 PL Mag Mount

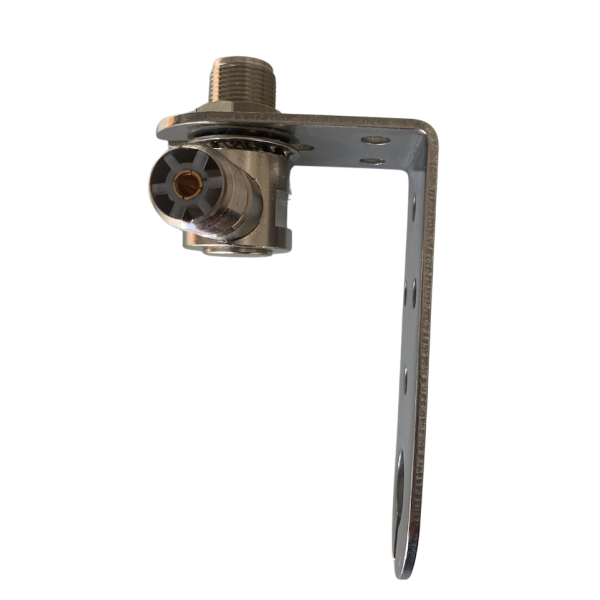

-  Sirio M-1 90 Degrees Bracket With Heavy Duty 2X SO 239 Angular Connector

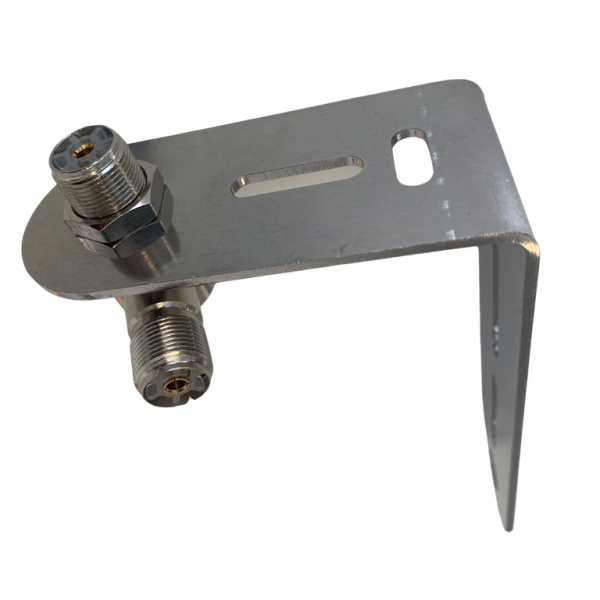

- Sirio M-2 90 Degrees Bracket With Heavy Duty 2X SO 239 Angular Connector

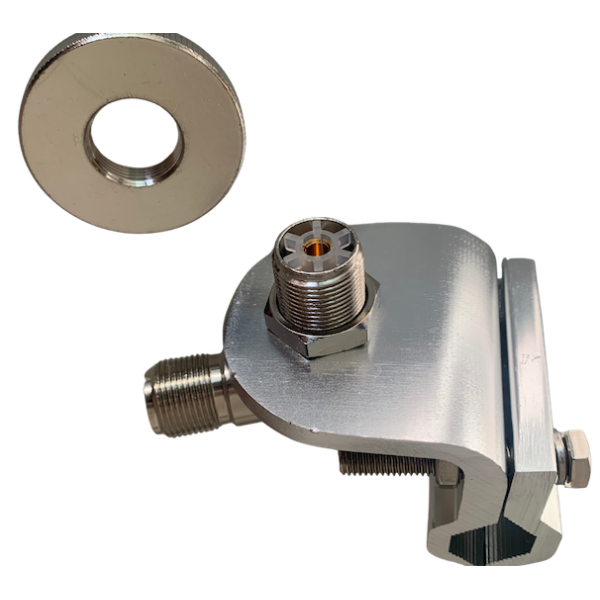

Sirio Heavy Duty Mirror Mount Bracket With 2X SO 239 Angular Connect
- Sirio KF Gutter Mount Kit suitable for SO239 Fitting

- Sirio Mag 125 PL Mag Mount

Product manual
