Product Information
Product Number: 2107801.00
Model: TORNADO 42-50
This high quality base station antenna for the very popular 42-50 Mhz band is a great addition to the Sirio range.

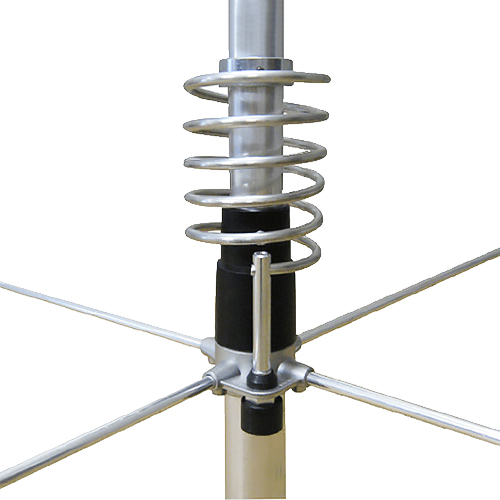

5/8 Wavelength antenna for base station working on 42-50 Mhz tunable by means of the enclosed tuning diagram. This series are made of anti-corodal aluminium tubes. Strong and easy to install, it allows very good links.
-
Base station antenna, Omnidirectional
-
Tunable by acting on the whip length
-
Made of aluminium alloy 6063 T-83
Electrical Data
| Type: |
5/8 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
42 - 50 Mhz Tunable |
| Systems:Low |
Low Band, Ham, AM |
| Gain: |
1.2 dBd – 3.35 dBi |
| Maximum power: |
1000 Watts (CW) Continuous |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Steel, Nylon |
| Height (approx): |
5650 mm / 18.53 ft |
| Weight (approx): |
2100 gr / 4.63 lb |
| Mounting type: |
On-Mast |
