Product Information
Product Number: 2300120.80

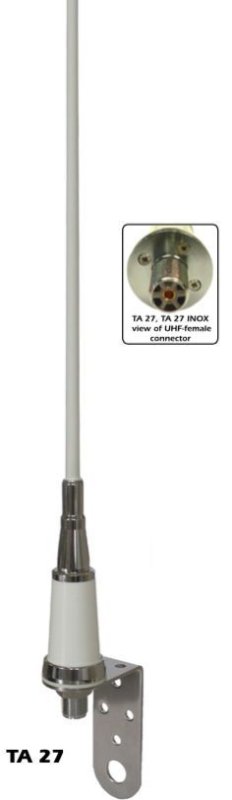

Model: TA 27
CB marine antenna studied to work without Ground Plane. The whip is made of glass fibre conic tube and metallic components are of chromium plated brass and stainless steel. The whip is DC-grounded in order to avoid stray R.F. currents and their discharges.
It is supplied with a stainless steel bracket for an easy and quick installation on the top of the mast. In the mentioned range of frequencies adjustments are not required.
- CB & 10m Marine antenna
- Designed to work without Ground Plane
- Perfect protection against the worst weather conditions
- Protection from static discharges DC-Ground
- Provided with stainless steel bracket for an easy installation on mast top
- High quality white fiberglass conic whip
Electrical Data
| Type: |
Base Loaded - Groundless |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
24.5 - 29.5 MHz No Tuning Required
≥ 5.5 MHz @ SWR ≤ 2 |
| Systems: |
CB - 27 Mhz |
| Maximum power |
15 Watts Continuous
50 Watts PEP |
| Grounding: |
DC-Ground |
| Connector: |
UHF-Female (SO-239) |
Mechanical Data
| Materials: |
Chromed Brass, Fiberglass, Nylon |
| Height (approx): |
1120 mm / 3.67 ft |
| Weight (approx): |
360 gr / 0.79 lb |
| Mounting Type: |
Thru-Holes |
