Product Information
Product Number: 2109901/1090

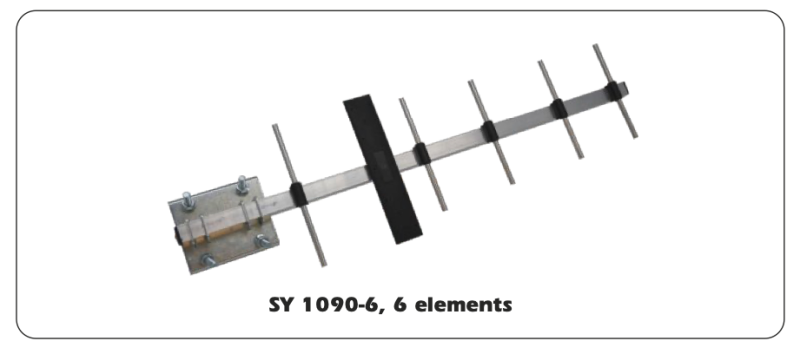

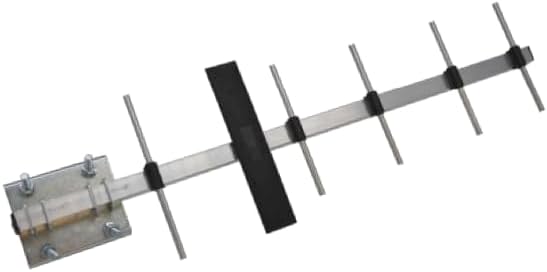

Model: SY 1090-6
Electrical Data
| Type: |
6 Elements Yagi |
| Radiation: |
Directional |
| Polarization: |
Linear vertical |
| Frequency range: |
1090 MHz |
| Systems: |
ADS-B 1090 MHz |
| Gain: |
9.4 dBd – 11.5 dBi |
| Maximum power: |
10 W (CW) |
| Connector: |
FME-female |
Mechanical Data
| Materials: |
Aluminium, Nickel plated brass, Thermoplastic UV stabilized, PCB |
| Dimensions: |
145 x 505 x 60 mm / 0.48 x 1.66 x 0.2 ft |
| Weight (approx): |
460 gr / 1.01 lb |
| Mounting type: |
On-Mast |
