Product Information
Product Number: 2130003.00

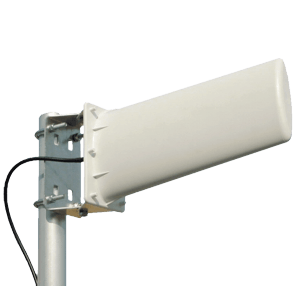

Model: SPH-1.5÷6-17
Wide band base station antenna, suitable for all systems between 1.5 and 6Ghz
High-gain and extremely wide band directional base station antenna suitable for all system between 1.6 and 6Ghz (i.e, GSm 1.8Ghz, DCS 1.9Ghz, DECT, UMTS, WLAN 2.4 Ghz, WLAN 5Ghz, WiMax 2.5 GHz and WiMAX 3.6 Ghz systems).
The radiant element is made of PTFE PCB to guarantee high power and low losses. The radiator is proteted by a UV-stablized radome to get the best performance for long periods of time. it supplied with adjustable aluminum bracket that allows the best installation flexibility.
Electrical Data
| Type: |
|
Wide Band PCB |
| Radiation: |
|
|
| Polarization: |
|
Linear vertical |
| Frequency range: |
|
1.5-6 GHz @ SWR ≤ 1.8 No tuning required |
| Systems: |
|
GSM-1800, 4G-LTE, 5G (3.4-3.8GHz), WiFi-2.4GHz, WiFi-5GHz, WiMAX, DECT, V2X |
| Gain: |
|
14.9 dBd - 17 dBi @ 6 GHz |
| Maximum power: |
|
15 Watts @ 1.5÷4 GHz
10 Watts @ 4÷6 GHz |
| Cable: |
|
30 cm (11.81 in) / Low loss |
| Connector: |
|
SMA-female |
Mechanical Data
| Materials: |
Galvanized steel, Thermoplastic UV stabilized, PCB |
| Height (approx): |
345 x 135 x 73 mm / 1.13 x 0.44 x 0.24 ft |
| Weight (approx): |
450 gr / 0.99 lb |
| Mounting type: |
On-Mast, On-Wall |
