Product Information
Product Number: 2111520.80

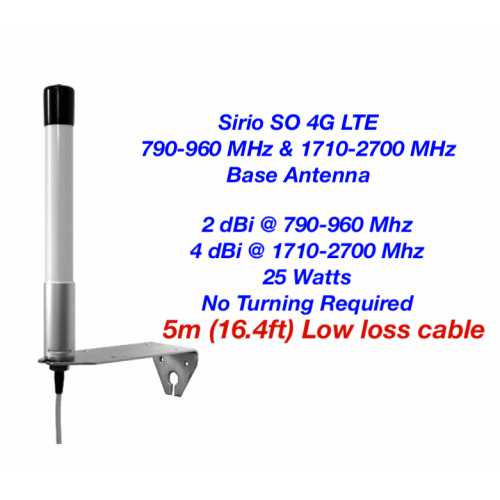

Model: SO 4G LTE W/Cable
Electrical Data
| Type: |
|
Colinear dipole array |
| Radiation: |
|
|
| Polarization: |
|
Linear vertical |
| Frequency range: |
|
790-960 MHz & 1710-2700 MHz No tuning required |
| Systems: |
|
GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT |
| Gain: |
|
2 dBi @ 790-960 MHz
4 dBi @ 1.71-2.7 GHz |
| Maximum power: |
|
Up to 50 Watts |
| Cable |
|
5M(16.4ft) Low Loss Cable |
| Connector: |
|
SMA-male |
Mechanical Data
| Materials: |
Aluminium, Anodized Aluminium, Nickel plated brass, Stainless steel, Galvanized steel |
| Height (approx): |
300 mm / 0.98 ft |
| Weight (approx): |
495 gr / 1.09 lb |
| Mounting type: |
On-Mast, On-Wall |
