Product Information
Product Number: 2111803.00
Model: SMP-X WLAN Mimo
Indoor-Outdoor Compact Directional Cross Polarized (WLAN 2.4, WLAN 5.5)

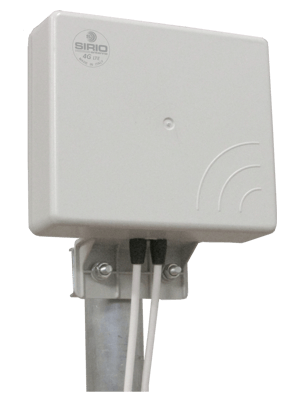

SMP-X WLAN MiMo Indoor-Outdoor Directional Cross Polarized Antenna
Electrical Data
| Type: |
Mini Panel |
| Radiation: |
|
| Polarization: |
Cross |
| Frequency range: |
2.4-2.5 GHz & 5.15-5.89 GHz No tuning required |
| Systems: |
WiFi-2.4GHz, WiFi-5GHz |
| Gain: |
7 dBi @ 2.4-2.5 GHz
11.4 dBi @ 5.15-5.89 GHz |
| Maximum power: |
20 Watts @ 790-960 MHz
8 Watts @ 1.71-2.7 GHz |
| Cable: |
30 cm (11.81 in) / Low loss |
| Connector: |
2x SMA-male |
Mechanical Data
| Materials: |
Galvanized steel, Thermoplastic UV stabilized, PCB |
| Height (approx): |
153 x 134 x 46 mm / 0.5 x 0.44 x 0.15 ft |
| Weight (approx): |
400 gr / 0.88 lb |
| Mounting type: |
On-Mast, On-Wall |
Suitable Accessories:
Tilting Bracket for SMP Series
Product manual
