Product Information
Product Number: 2112203/5SMA

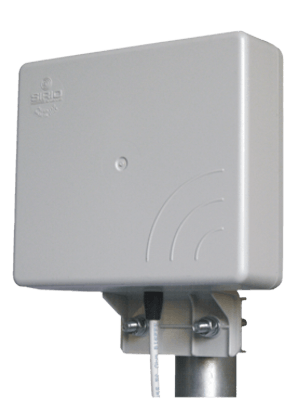

Model: SMP 5G RF/5M/SMA-M
Indoor-Outdoor Compact Directional Multi-Band, (698-960 MHz & 1.71-2.7 GHz 3.3-3.8 GHz for 5G - LTE , WLan 2.4). Full 5G LTE Band
Electrical Data
| Type: |
Mini Panel |
| Radiation: |
|
| Polarization: |
Linear vertical |
| Frequency range: |
698-960 MHz & 1710-3800 MHz No tuning required |
| Systems: |
GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, 5G (3.4-3.8GHz), 5G, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz |
| Gain: |
4÷6 dBi @ 698-960 MHz
9÷10 dBi @ 1710-2170 MHz
11÷12 dBi @ 2300-2700 MHz
11÷12 dBi @ 3300-3800 MHz |
| Maximum power: |
35 Watts (CW) @ 698-960 MHZ
35 Watts (CW) @ 1710-2170 MHz
25 Watts (CW) @ 2300-2700 MHz
20 Watts (CW) @ 3300-3800 MHz |
| Cable: |
5 m (16.4 ft) / Low loss |
| Connector: |
SMA-male |
Mechanical Data
| Materials: |
Galvanized steel, Thermoplastic UV stabilized, PCB |
| Height (approx): |
153 x 134 x 46 mm / 0.5 x 0.44 x 0.15 ft |
| Weight (approx): |
400 gr / 0.88 lb |
| Mounting type: |
On-Mast, On-Wall |
Suitable Accessories:

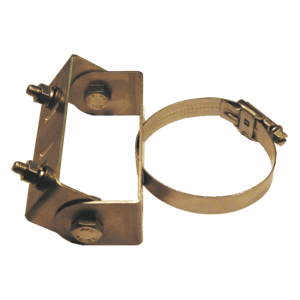

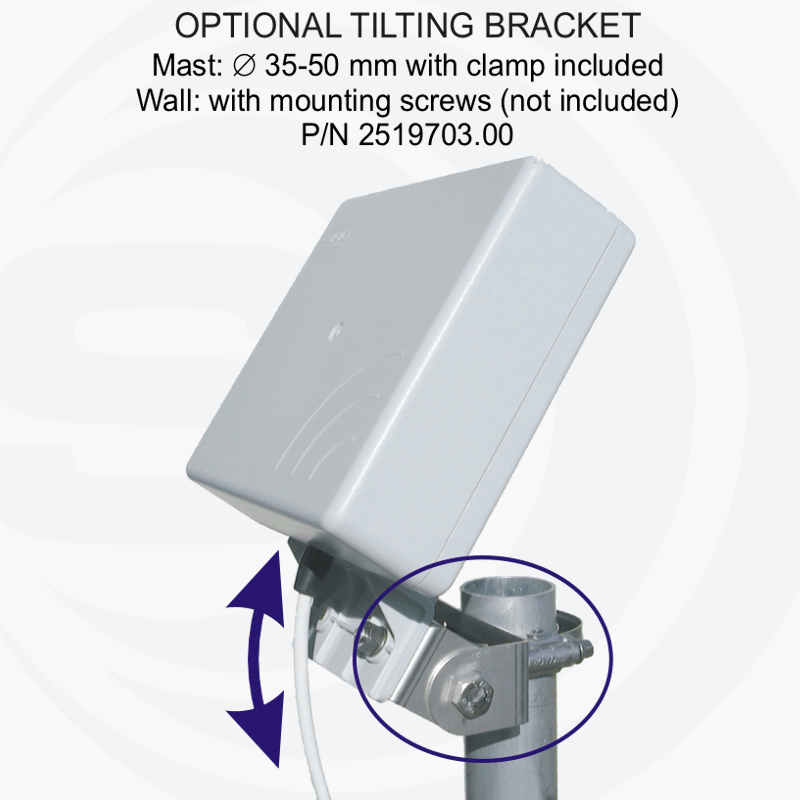

Tilting Bracket for SMP Series
