Product Information
Product Number: 2111403.00
Model: SMP 4G LTE Mimo

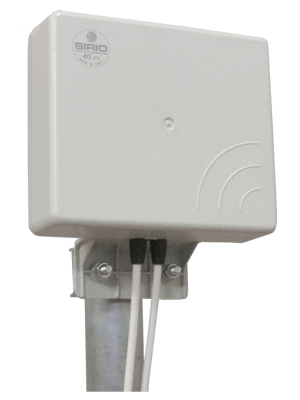

The SMP-4G-MIMO antenna is a mini-directional MIMO 4G/mulitband panel antenna designed for 4G/3G access to complement 4G routers that have dual antenna ports. With 5 dBi gain on the low band and 8 dBi gain on the high bands, the antenna offers an excellent size vs. performance ratio. This package is bundled with 2 5M BWL195 low loss cables and SMA-Male connectors.
Designed for dual antenna port equipped routers and access devices, the SMP 4G MIMO panel offers a high gain directional antenna solution for improved signal strength and download speeds.
Electrical Data
| Type: |
Mini Panel |
| Radiation: |
|
| Polarization: |
Linear vertical |
| Frequency range: |
790-960 MHz & 1710-2700 MHz No tuning required |
| Systems: |
GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT |
| Gain: |
5 dBi @ 790-960 MHz
8 dBi @ 1.71-2.7 GHz |
| Maximum power: |
20 Watts @ 790-960 MHz
8 Watts @ 1.71-2.7 GHz |
| Cable: |
30 cm (11.81 in) / Low loss |
| Connector: |
2x SMA-male |
Mechanical Data
| Materials: |
Galvanized steel, Thermoplastic UV stabilized, PCB |
| Height (approx): |
153 x 134 x 46 mm / 0.5 x 0.44 x 0.15 ft |
| Weight (approx): |
400 gr / 0.88 lb |
| Mounting type: |
On-Mast, On-Wall |
Suitable Accessories:

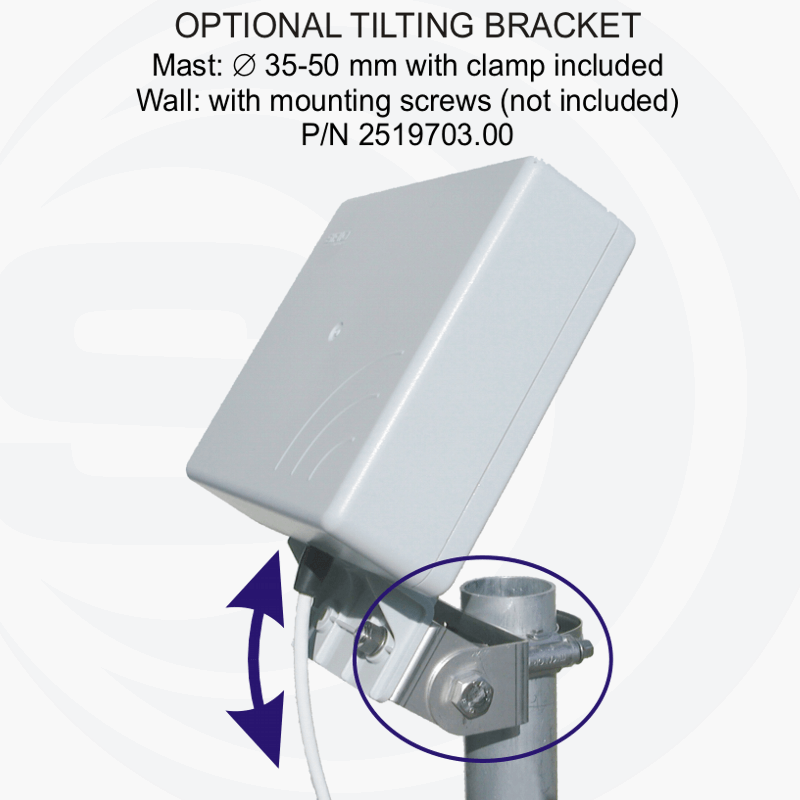

Tilting Bracket for SMP Series
