Product Information
Product Number: 2112001.00
Model: SLP 4G-LTE

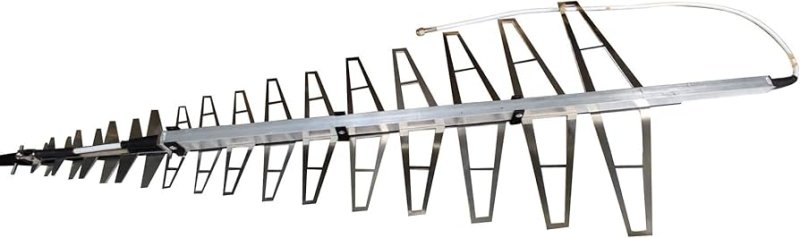

- Directional Wide Band Log Periodic Antenna
- 4G LTE muti systems (2G-GSM, 3G-UMST, 4G-LTE, ISM/LoRa, WiFi, W-Lan etc)
- Compact dimension, high linear gain, good SWR Response
- Made of Aluminium and high quality materials

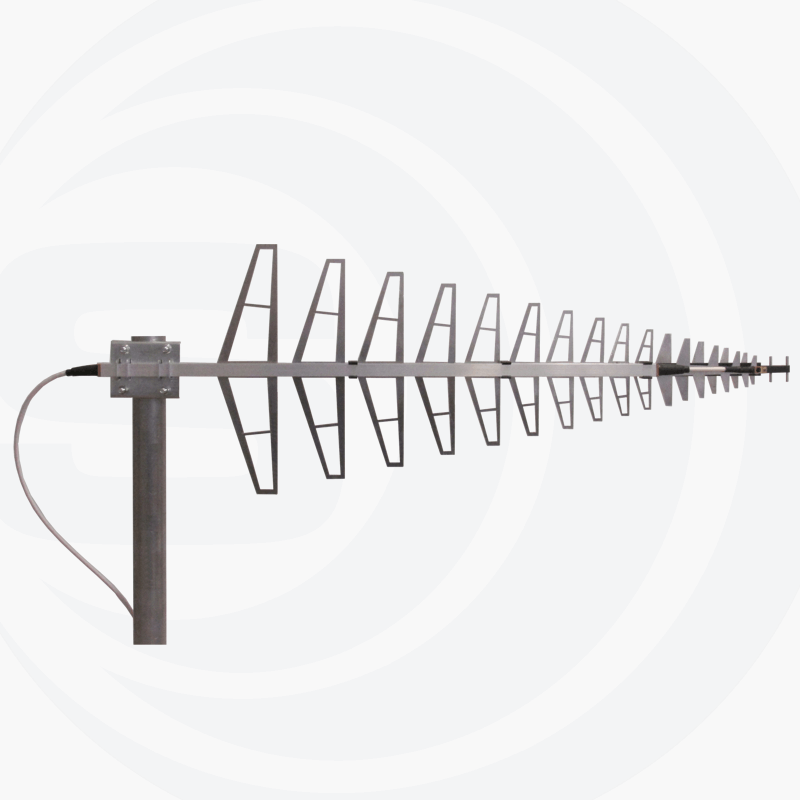

- Easy and quick installation on the mast
- Vertical or Horizontal Polarization
- Optional brackets +-45 Degree polarization installation, great for MIMO configuration
- Fully designed & Manufactured in Italy
Electrical Data
| Type: |
|
Log periodic |
| Radiation: |
|
|
| Polarization: |
|
Linear Vertical or Horizontal |
| Frequency range: |
|
698-2700 MHz No tuning required |
| Systems: |
|
GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT |
| Gain: |
|
9÷11 dBi |
| Maximum power: |
|
10 W (CW) |
| Cable: |
|
50 cm (19.69 in) / Low loss |
| Connector: |
|
SMA-male |
Mechanical Data
| Materials: |
Aluminium, Galvanized steel, Thermoplastic UV stabilized |
| Height (approx): |
850 x 290 x 30 mm / 2.79 x 0.95 x 0.1 ft |
| Weight (approx): |
770 gr / 1.7 lb |
| Mounting type: |
On-Mast, On-Wall |
