Product Information
Product Number: 2209906.33

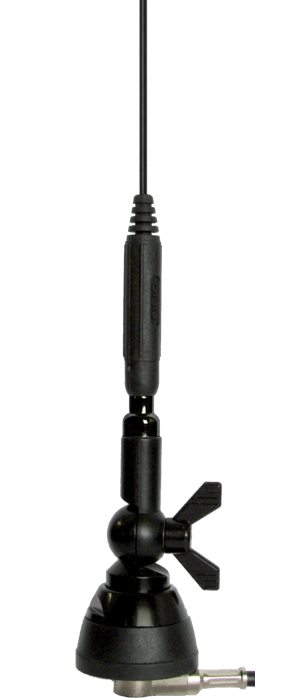

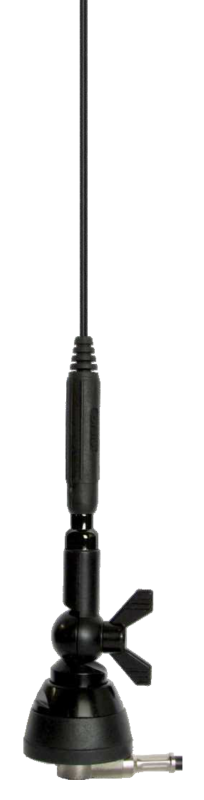

Model: SDB 270 Black
- Dual-band vehicular antenna working on 2m/70cm bands
- 17/7 PH Tapered stainless steel whip
- 90 Degree inclination and adjustable whip, detachable for car-washes access
Electrical Data
| Type: |
VHF: 1/4 λ
UHF: 3/4 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
137-152 MHz, 415-455 MHz No tuning required |
| Systems: |
2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz |

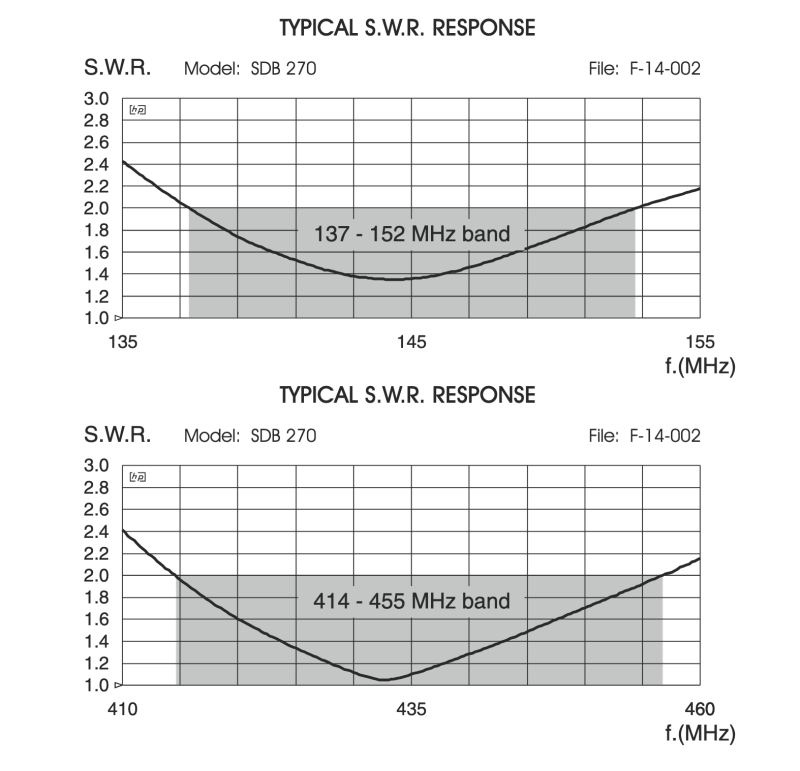

| Bandwidth: |
≥ 9MHz @ SWR ≤ 2 |
| Gain: |
0 dB ref. to a λ/4 whip |
| Maximum power: |
100 W (CW) |
| Cable: |
5 m (16.4 ft) / RG58 |
| Connector: |
Not Supplied |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
535 mm / 1.76 ft |
| Weight (approx): |
530 gr / 1.17 lb |

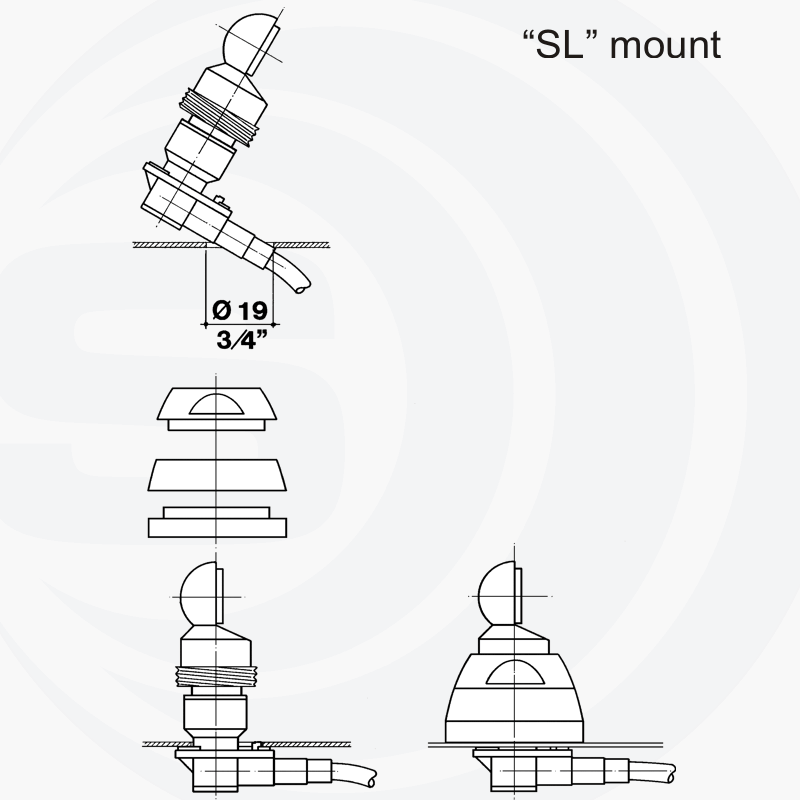

| Mounting type: |
Thru-Hole |
Product manual
|
