Product Information
Product Number: 2104801.00/BLIZ

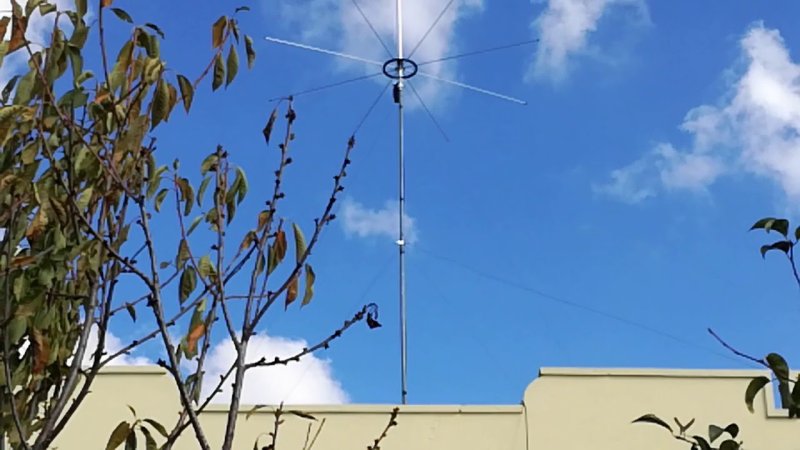

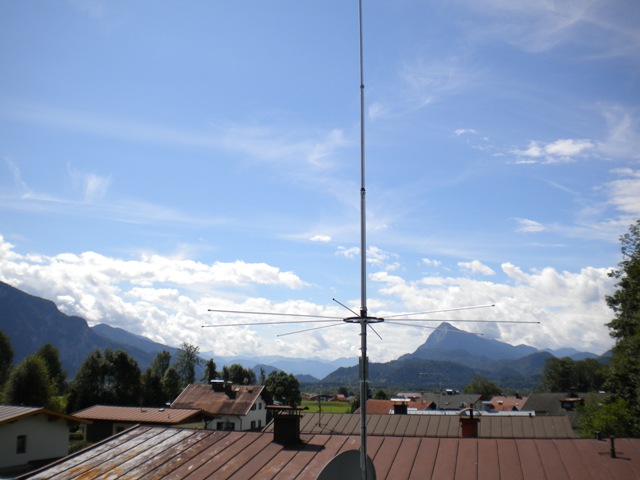

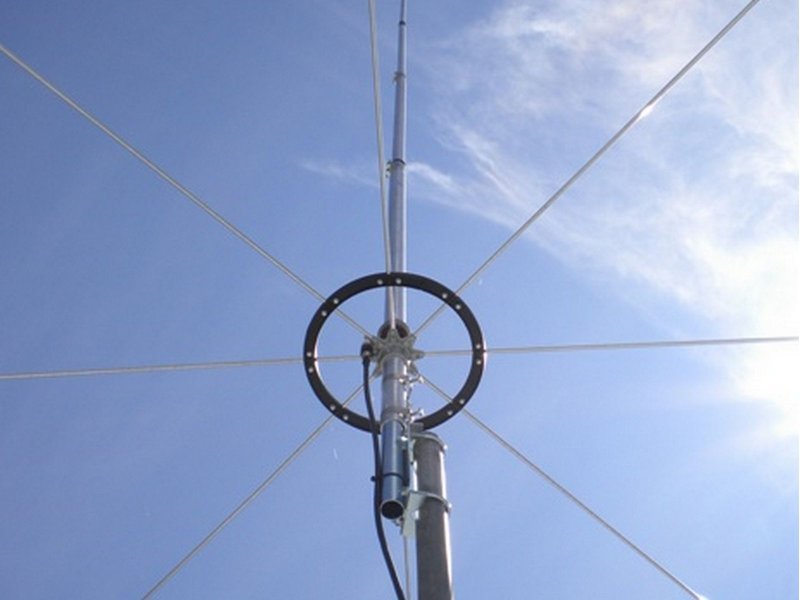

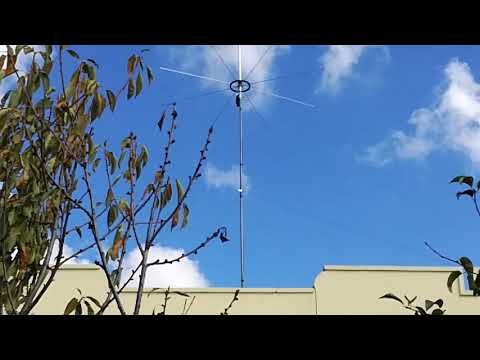

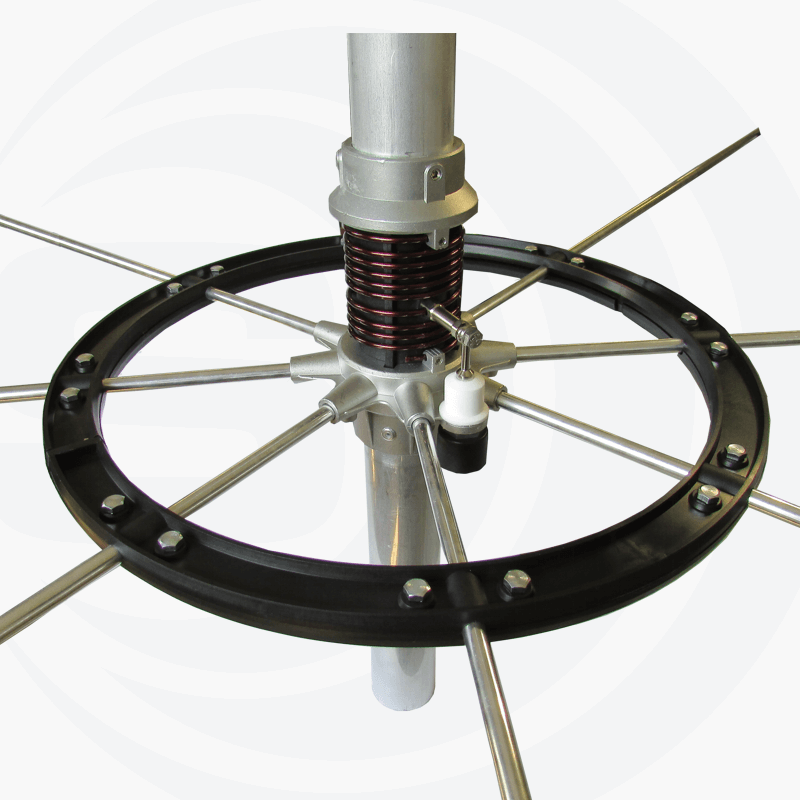

Model: Blizzard 2700 with Radial Reinforcement Ring
One of the best selling 10M-HAM Base antenna in the world, high quality, strong build, comes with the Radial reinforcement ring Great for DX.
-
Base station antenna
-
Factory tuned at mid-band
-
High power handling capability
-
Made of aluminium alloy 6063 T-832
-
Whip equipped whit waterproof jointing sleeve
Electrical Data
| Type: |
5/8 λ Dipole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
tunable from 26 - 28 MHz |
| Systems: |
10m-CB |
| Gain: |
1.5 dBd, 3.65 dBi
SWR ≤ 2: ≥ 3750 KHz |
| Maximum power: |
1000 Watts (CW) Continuous
3000 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Steel, Nylon |
| Height (approx): |
6700 mm / 21.98 ft |
| Weight (approx): |
6000 gr / 13.23 lb |
| Mounting type: |
On-Mast |
