Product Information
Product Number: 21055301.00
Model: SD-Diple

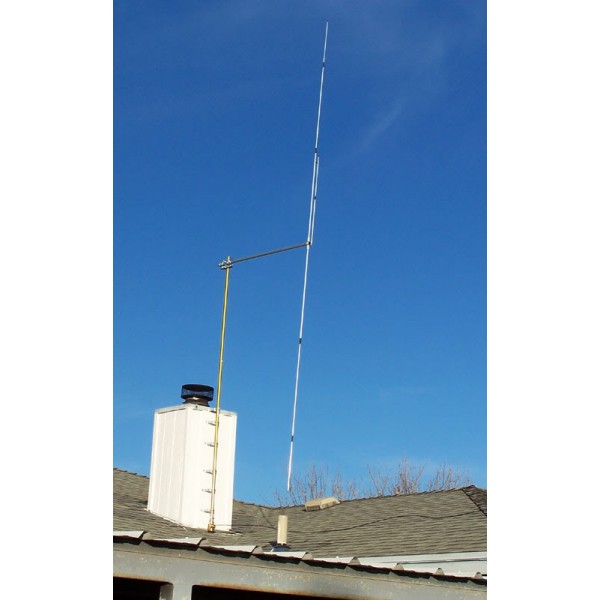

1/2 λ Dipole antenna working on 27 MHz band with Gamma Match System. It has been completely made of anticorodal aluminium and supplied with Boom and steel bracket for the fitting on the support mast. The fixing part with rapid mounting system is made of die-cast metal to get the maximum strength and robustness. The radial whip is earthed and it is supplied with jointing sleeves of polythene for a perfect water-proofing. Its supplied with UHF Female connector. Great for DX.
-
Base station antenna
-
Factory tuned at mid-band
-
High power handling capability
-
Made of aluminium alloy 6063 T-832
-
Whip equipped whit waterproof jointing sleeve
Electrical Data
| Type: |
1/2 λ Dipole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
tunable from 26.5 - 30 MHz |
| Systems: |
10m-CB |
| Gain: |
0 dBd, 1.15 dBi
SWR ≤ 2: ≥ 3750 KHz |
| Maximum power: |
1000 Watts (CW) Continuous
3000 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Steel, Nylon |
| Height (approx): |
5582 mm / 18.31 ft |
| Weight (approx): |
2560 gr / 5.64 lb |
| Mounting type: |
On-Mast |
