Product Information
| 2109005.00 |
SD 2000 U |
| 2109105.00 |
SD 2000 N |
This antenna covers the frequency range of 100-2000 MHz and, due to its broadband concept, is suited for scanner and monitoring applications.

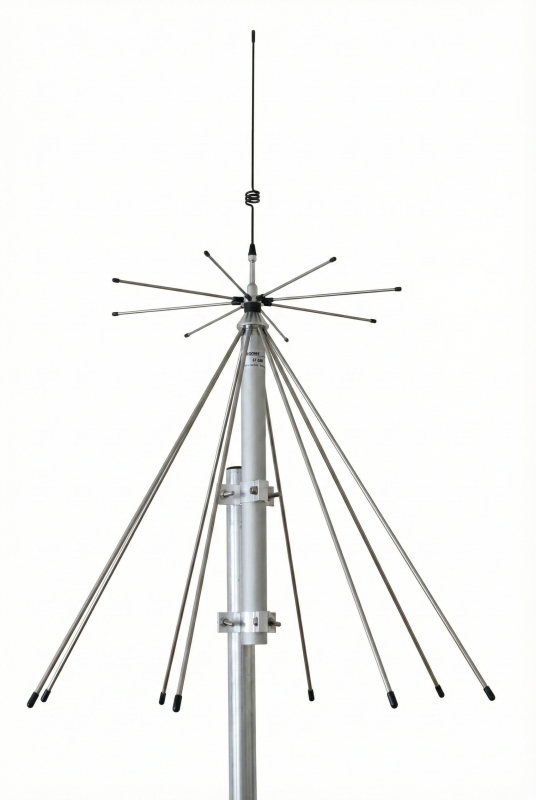

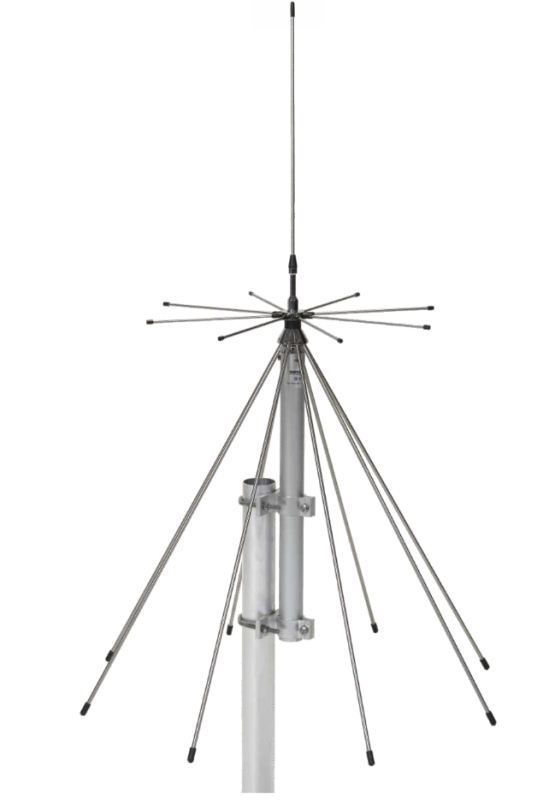

Wide-band discone antenna working on 100-2000 MHz in reception and on many amateur frequencies in transmission (2m, 1 1/4m, 70cm, 33cm, 23cm). It is made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance.
Easy to fit, it can be suitable for the installation everywhere. The vertical whip can be removed whenever the 145 MHz frequency is not required.
Electrical Data
| Type: |
Discone |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical or Horizontal |
| Frequency range: |
Banda RX: 100-2000 MHz

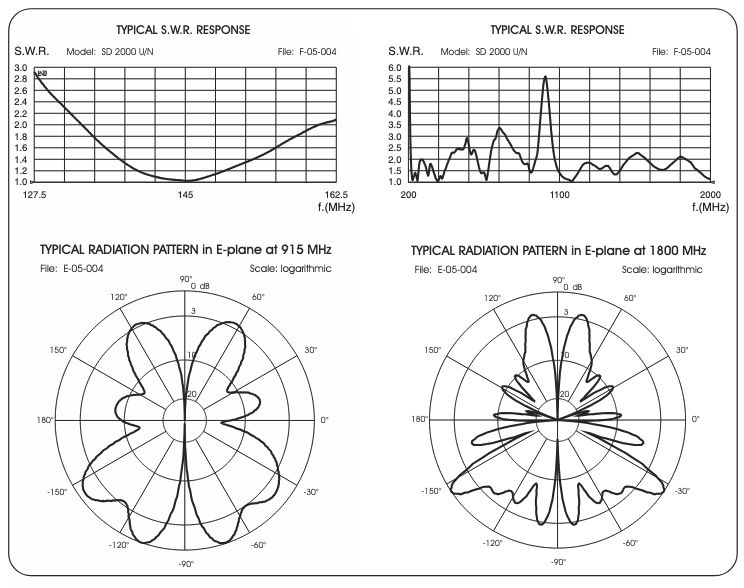

Banda TX (@ SWR ≤2): 130-160, 221-445, 610-682, 860-960, 1075-1500, 1610-2000 MHz |
| Systems: |
2m-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, ISM/SIGFOX/LoRa 915MHz |
| Gain: |
0 dBd – 2.15 dBi @ lowest frequency |
| Maximum power: |
200 Watts |
| Connector: |

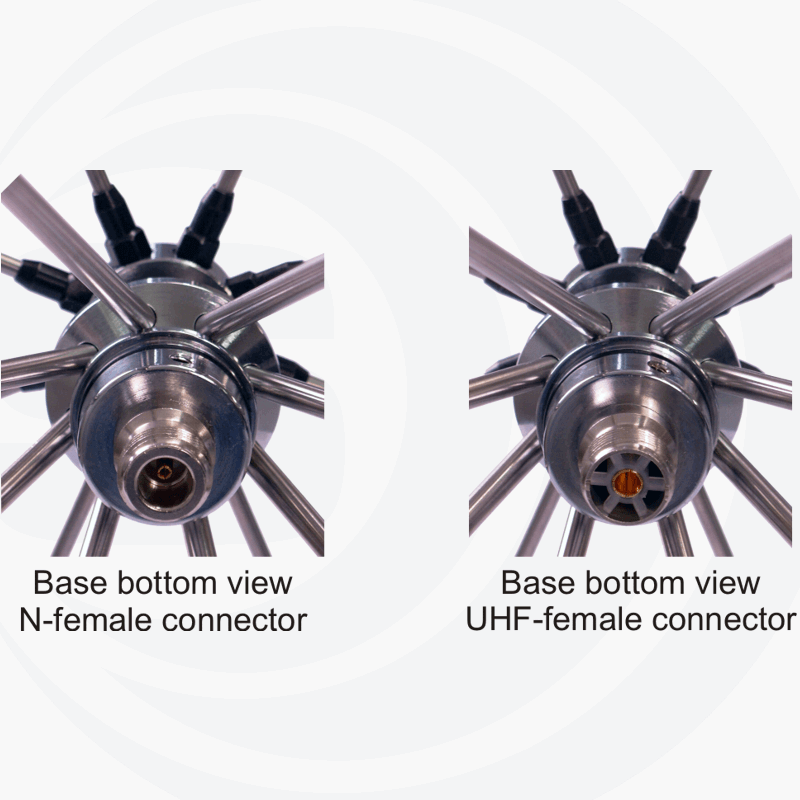

N-female or U (SO-239) |
Mechanical Data
| Materials: |
Chromed brass, Stainless steel, Nylon |
| Height (approx): |
940 mm / 3.08 ft |
| Weight (approx): |
1020 gr / 2.25 lb |
| Mounting type: |
On-Mast |
