In stock

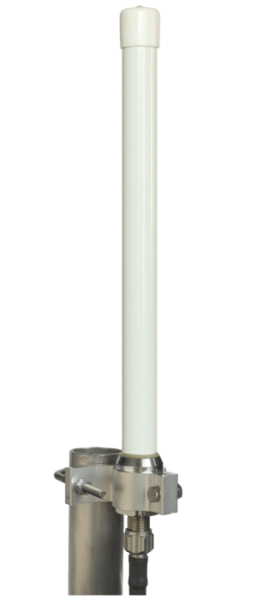

Sirio SCO-1.09-5 ADS-B 1090 MHz Base Antenna with GPS

Model: SIR-AVIA-109G

Product Number: 2132320.00

GPS (ADS-B): 1.95 dBd– 4.1 dBi
(GPS LNA): +18 dB typical

Check In-Store availability
$89.00 $79.00
Description
Reviews
  • Model
  • SIR-AVIA-109G

Description:

Product Information

Product Number: 2132320.00
Model: SCO-1.09-5 GPS

Electrical Data

Type: 3×1/2 λ colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 1090 MHz (No tuning required)
Systems: ADS-B 1090 MHz
Gain GPS (ADS-B) 1.95 dBd– 4.1 dBi
Gain GPS (LNA) +18 dB typical
Required supply 3Vcc (+V on connector central pin)
Current 10mA @ 3Vcc
Grounding: DC-Ground

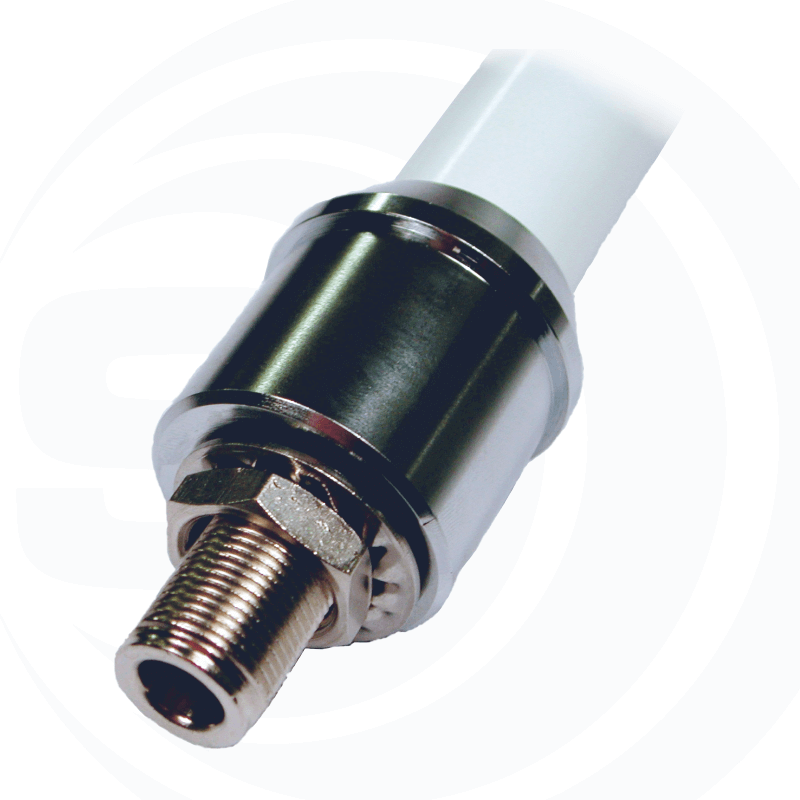

Connector: N-female

Mechanical Data

Materials: Anodized aluminium, nickel-plated brass, fiberglass, PCB
Height (approx): 625 mm / 2.05 ft
Weight (approx): 310 gr / 0.68 lb

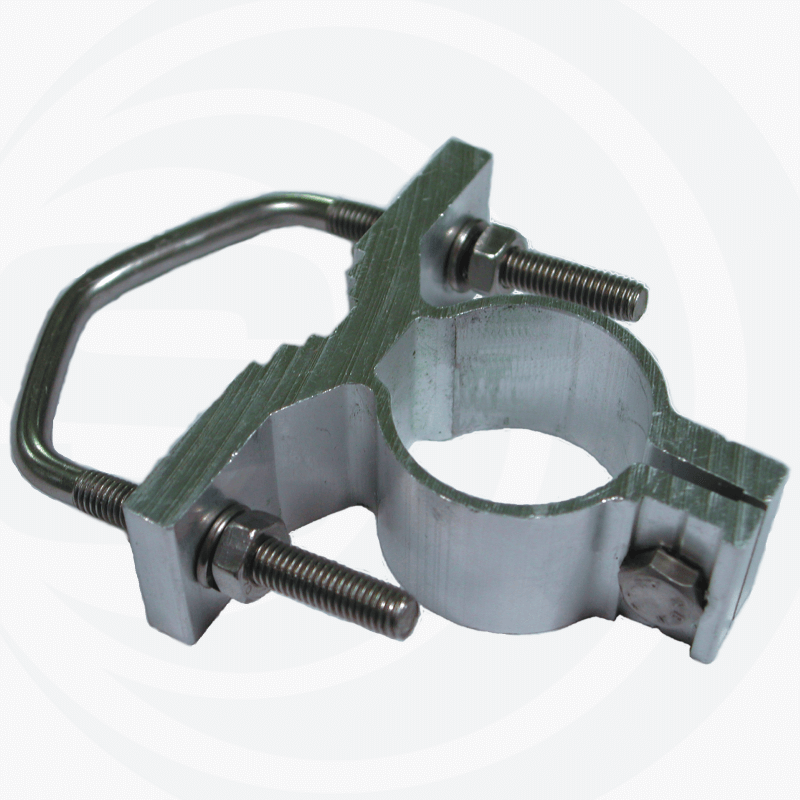

Mounting type: On-mast, on-wall

Product manual
