Product Information
Product Number: 2301105.80

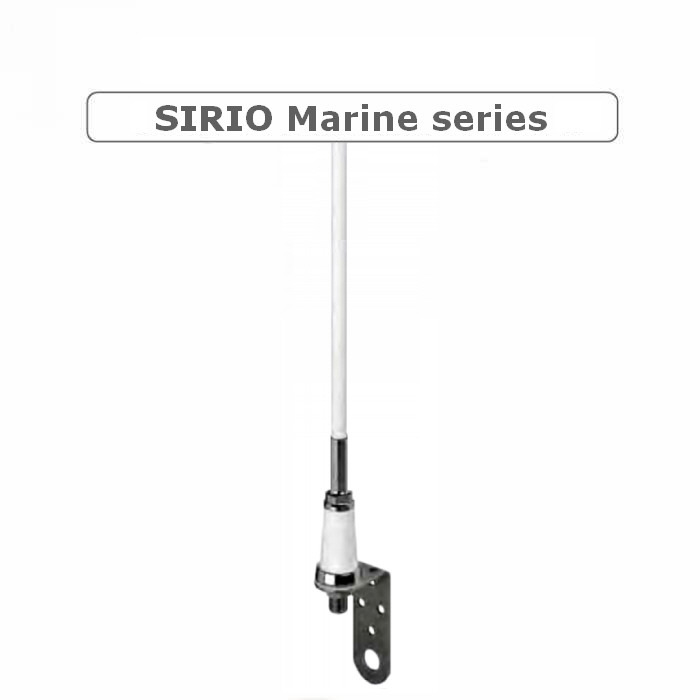

Model: SB 1S
- VHF Marine antenna
- Designed to work without Ground Plane
Electrical Data
| Type: |
1/2 λ J-Pole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
TX:156 - 157.425 Mhz @ SWR ≤ 1.5
RX: 156 - 163 Mhz @ SWR ≤ 2 |
| Gain: |
0 dBd - 2.15 dBi |
| Systems: |
VHF Marine Band |
| Maximum power |
100 Watts |
| Grounding: |
DC-Ground |
| Connector: |
UHF-Female (SO-239) |
Mechanical Data
| Materials: |
Chromed Brass, Fiberglass, Nylon |
| Height (approx): |
955 mm / 3.13 ft |
| Weight (approx): |
360 gr / 0.79 lb |
| Mounting Type: |
On-Master, On-Wall |
