Product Number: 2109620.00
Model: CPF 703N

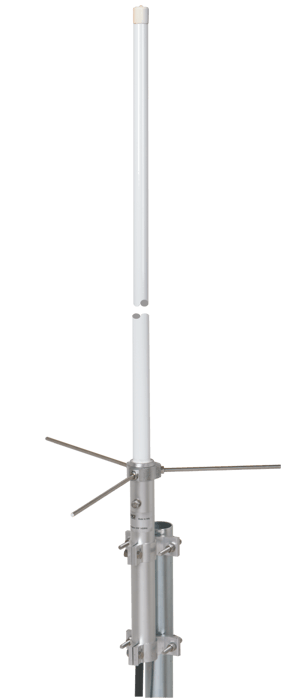

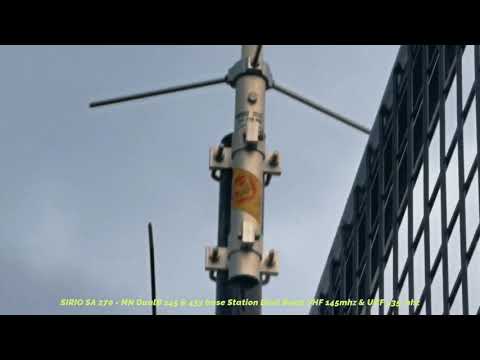

Ground Plane colinear dual-band antenna for base station service working on the radio-amateur frequency of 2m/70cm. The radial whip is of brass inserted in a conic fiberglass tube for a perfect protection from the worst climates and the radials are of stainless steel to get the maximun strength.
They are supplied with a solid aluminium bracket for an easy installation on the support mast.
Works for for VHF 143-149 MHz, UHF 440-450 MHz
- Base station antenna, Omnidirectional
- Dual-band
- VHF Low-gain, UHF High-gain
- Protection from static discharges DC-Ground
- Stainless steel hardware and radials
- Equipped with anodized aluminium bracket for an easy side mast installation
- High quality whip made of brass and copper protected by fiberglass tube
Electrical Data
| Type: |
VHF: 6/8 λ
UHF: 3 x 5/8 λ colinear |
|
| Radiation: |
Omnidirectional |
|
| Polarization: |
Linear vertical |
|

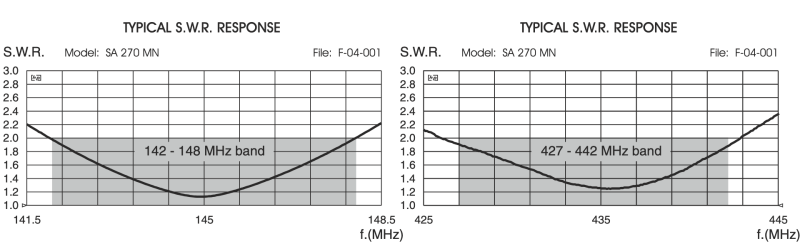

| Frequency range: |
142-148 MHz & 440-450 MHz No tuning required |
|
| Systems: |
2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz |
|
| Gain: |
VHF: 2 dBd – 4.15 dBi
UHF: 4.2 dBd – 6.35 dBi |
|
| Maximum power: |
200 W (CW) |
|
| Grounding protection: |
All metal parts are DC-grounded, the inner conductor is coupled capacitively |
|
| Connector: |

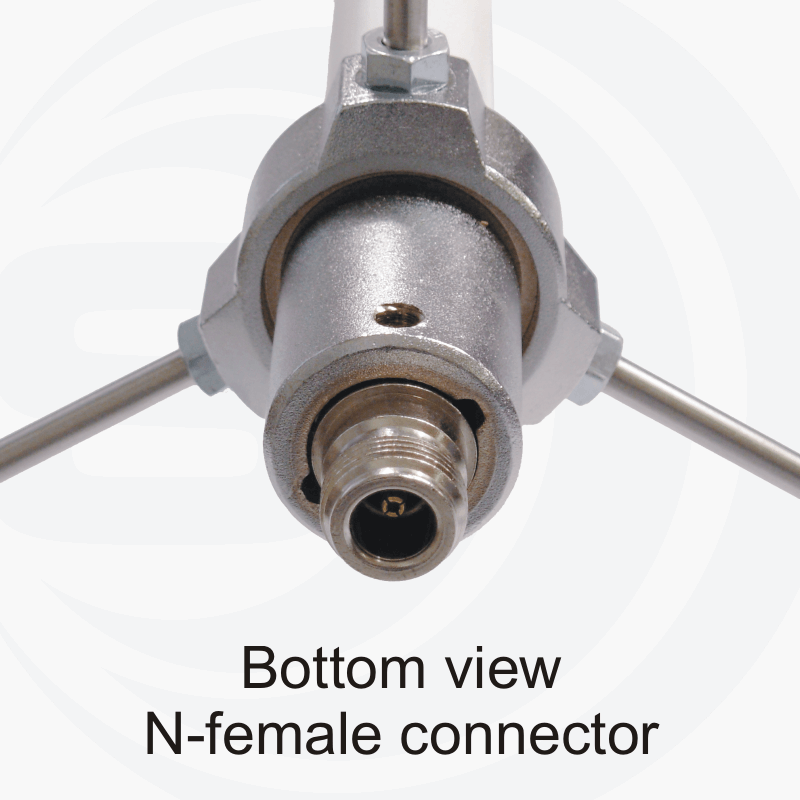

N-female |
|
Mechanical Data
| Materials: |
Aluminium, Brass, Stainless steel, Fiberglass |
| Height (approx): |
1720 mm / 5.64 ft |
| Weight (approx): |
1030 gr / 2.27 lb |
| Mounting type: |
On-mast |
